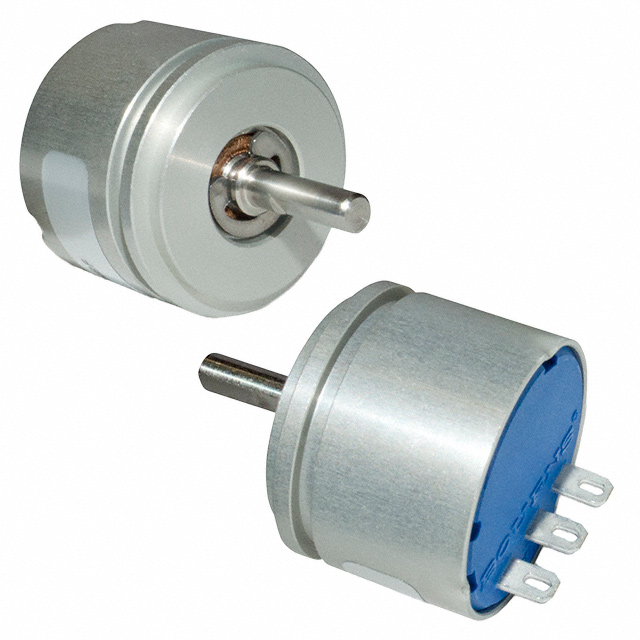

AMS22S Series

Catalog

SENSOR ROTARY 250DEG SOLDER LUG

Part	Termination Style	Linearity	Output Signal	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]	Actuator Type	Output	For Measuring	Technology	Rotation Angle - Electrical, Mechanical	Rotation Angle - Electrical, Mechanical
Bourns Inc. AMS22S5A1BLAFL325	Solder Lug	0.5 %	Clockwise Increase	Module Flatted Shaft	Panel Mount	125 °C	-40 C	250 °	10 °	Flatted Shaft	Analog Voltage	Rotary Position	Hall Effect
Bourns Inc. AMS22S5A1BHAFL321	Solder Lug	0.5 %	Clockwise Increase	Module Flatted Shaft	Panel Mount	125 °C	-40 C	210 °	10 °	Flatted Shaft	Analog Voltage	Rotary Position	Hall Effect
Bourns Inc. AMS22S5A1BLAFL336	Solder Lug	0.5 %	Clockwise Increase	Module Flatted Shaft	Panel Mount	125 °C	-40 C			Flatted Shaft	Analog Voltage	Rotary Position	Hall Effect
Bourns Inc. AMS22S5A1BLAFL329	Solder Lug	0.5 %	Clockwise Increase	Module Flatted Shaft	Panel Mount	125 °C	-40 C	290 °	10 °	Flatted Shaft	Analog Voltage	Rotary Position	Hall Effect
Bourns Inc. AMS22S5A1BHAFL118	Solder Lug	0.5 %		Module Flatted Shaft	Panel Mount	125 °C	-40 C	180 °	10 °	Flatted Shaft	Analog Voltage	Rotary Position	Hall Effect
Bourns Inc. AMS22S5A1BLAFL101	Solder Lug	0.5 %		Module Flatted Shaft	Panel Mount	125 °C	-40 C			Flatted Shaft	Analog Voltage	Rotary Position	Hall Effect	Continuous	10 °
Bourns Inc. AMS22S5A1BHAFL114	Solder Lug	0.5 %		Module Flatted Shaft	Panel Mount	125 °C	-40 C	140 °	10 °	Flatted Shaft	Analog Voltage	Rotary Position	Hall Effect
Bourns Inc. AMS22S5A1BHAFL302	Solder Lug	0.5 %	Clockwise Increase	Module Flatted Shaft	Panel Mount	125 °C	-40 C	20 °	10 °	Flatted Shaft	Analog Voltage	Rotary Position	Hall Effect
Bourns Inc. AMS22S5A1BLAFL123	Solder Lug	0.5 %		Module Flatted Shaft	Panel Mount	125 °C	-40 C	230 °	10 °	Flatted Shaft	Analog Voltage	Rotary Position	Hall Effect
Bourns Inc. AMS22S5A1BLAFL301	Solder Lug	0.5 %	Clockwise Increase	Module Flatted Shaft	Panel Mount	125 °C	-40 C			Flatted Shaft	Analog Voltage	Rotary Position	Hall Effect	Continuous	10 °
