046011 Series

Manufacturer: Molex

Catalog

MINI-FIT VERT BMI HDR ASY 6CKT V

Part	Number of Positions	Material Flammability Rating	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Contact Type	Shrouding	Number of Positions Loaded	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Material	Insulation Height	Insulation Height	Mounting Type	Insulation Color	Number of Rows	Contact Shape	Contact Material	Contact Length - Post	Contact Length - Post	Number of Positions Loaded
Molex 0460110603	6	UL94 V-0	Gold	3.56 mm	0.14 in	Varies by Wire Gauge	2.54 µm	100 µin	600 VAC	Latch Holder	4.2 mm	0.165 in	Tin	Male Pin	Shrouded - 4 Wall	All	Automotive General Purpose Industrial Medical Telecommunications	3 µin	0.076 µm	Board to Board Cable	-40 °C	105 ░C	Solder	4.2 mm	0.165 in	Header	Polyamide (PA66) Nylon 6/6	0.55 in	13.97 mm	Through Hole	Natural	2	Square	Copper Alloy
Molex 0460111802	18	UL94 V-0					2.54 µm	100 µin		Locking Ramp	4.2 mm	0.165 in	Tin	Male Pin	Shrouded - 4 Wall	All	Automotive General Purpose Industrial Medical Telecommunications	100 çin	2.54 çm	Board to Board Cable			Solder	4.2 mm	0.165 in	Header	Polyamide (PA66) Nylon 6/6	0.555 in	14.1 mm	Through Hole	Natural	2	Square	Copper Alloy	3.5 mm	0.138 in
Molex 0460110403	4	UL94 V-0	Gold				2.54 µm	100 µin		Locking Ramp	4.2 mm	0.165 in	Tin	Male Pin	Shrouded - 4 Wall	All	Automotive General Purpose Industrial Medical Telecommunications	30 Áin	0.76 Ám	Board to Board Cable			Solder	4.2 mm	0.165 in	Header	Polyamide (PA66) Nylon 6/6	0.555 in	14.1 mm	Through Hole	Natural	2	Square	Copper Alloy	3.5 mm	0.138 in
Molex 0460115001	14	UL94 V-0	Gold	3.56 mm	0.14 in	Varies by Wire Gauge	2.54 µm	100 µin	600 VAC	Latch Holder	4.2 mm	0.165 in	Tin	Male Pin	Shrouded - 4 Wall		Automotive General Purpose Industrial Medical Telecommunications	3 µin	0.076 µm	Board to Board Cable	-40 °C	105 ░C	Solder	4.2 mm	0.165 in	Header	Polyamide (PA66) Nylon 6/6	0.55 in	13.97 mm	Through Hole	Natural	2	Square	Copper Alloy			12

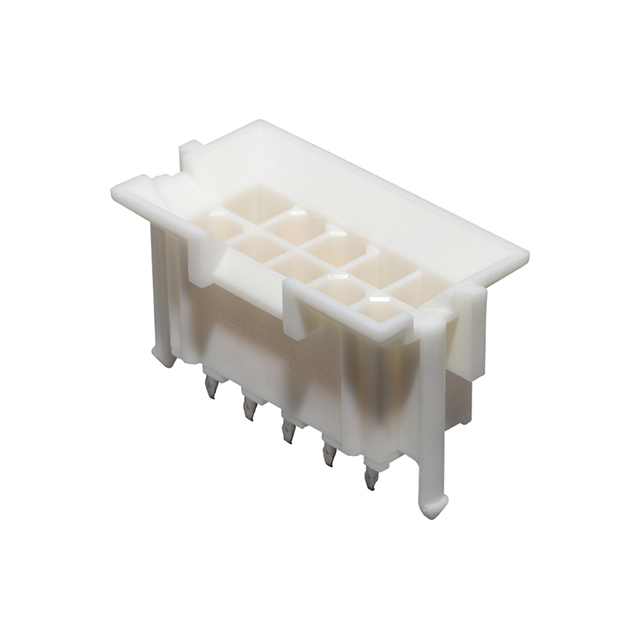

Molex 0460111002	10	UL94 V-0					2.54 µm	100 µin		Locking Ramp	4.2 mm	0.165 in	Tin	Male Pin	Shrouded - 4 Wall	All	Automotive General Purpose Industrial Medical Telecommunications	100 çin	2.54 çm	Board to Board Cable			Solder	4.2 mm	0.165 in	Header	Polyamide (PA66) Nylon 6/6	0.555 in	14.1 mm	Through Hole	Natural	2	Square	Copper Alloy	3.5 mm	0.138 in
Molex 0460112402	24	UL94 V-0					2.54 µm	100 µin		Locking Ramp	4.2 mm	0.165 in	Tin	Male Pin	Shrouded - 4 Wall	All	Automotive General Purpose Industrial Medical Telecommunications	100 çin	2.54 çm	Board to Board Cable			Solder	4.2 mm	0.165 in	Header	Polyamide (PA66) Nylon 6/6	0.555 in	14.1 mm	Through Hole	Natural	2	Square	Copper Alloy	3.5 mm	0.138 in
Molex 0460111402	14	UL94 V-0					2.54 µm	100 µin		Locking Ramp	4.2 mm	0.165 in	Tin	Male Pin	Shrouded - 4 Wall	All	Automotive General Purpose Industrial Medical Telecommunications	100 çin	2.54 çm	Board to Board Cable			Solder	4.2 mm	0.165 in	Header	Polyamide (PA66) Nylon 6/6	0.555 in	14.1 mm	Through Hole	Natural	2	Square	Copper Alloy	3.5 mm	0.138 in
Molex 0460110402	4	UL94 V-0					2.54 µm	100 µin		Locking Ramp	4.2 mm	0.165 in	Tin	Male Pin	Shrouded - 4 Wall	All	Automotive General Purpose Industrial Medical Telecommunications	100 çin	2.54 çm	Board to Board Cable			Solder	4.2 mm	0.165 in	Header	Polyamide (PA66) Nylon 6/6	0.555 in	14.1 mm	Through Hole	Natural	2	Square	Copper Alloy	3.5 mm	0.138 in
