935151 Series

Catalog

CAP SILICON 0.1UF 60PPM/°C 15% SMD 0402 150°C T/R

Part	Capacitance	Tolerance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	ESL (Equivalent Series Inductance)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	ESR (Equivalent Series Resistance)	Features	Applications	Height [z]	Height [z]	Package / Case	Voltage - Breakdown

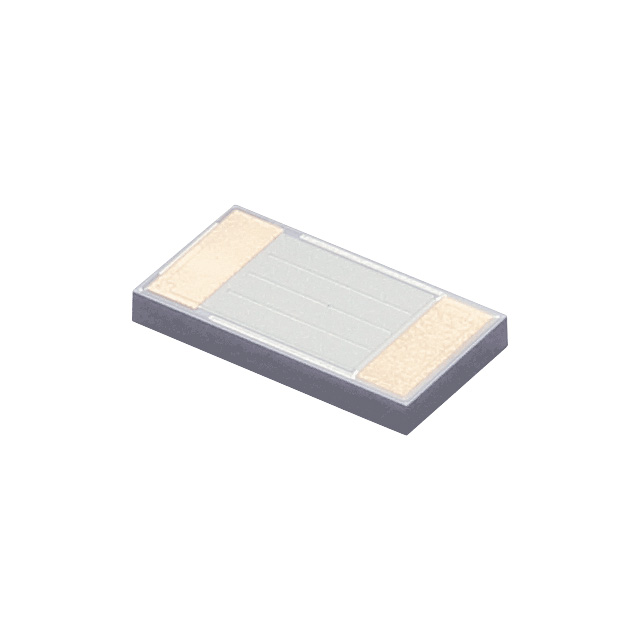

Murata Electronics 935151424610-T3N	100000 pF	15 %	1.2 mm	0.047 in	0.7 mm	0.028 in	100 pH	-55 C	150 °C	0402 (1005 Metric)	300 mOhm	High Reliability Low Profile	High Stability	0.44 mm	0.017 in

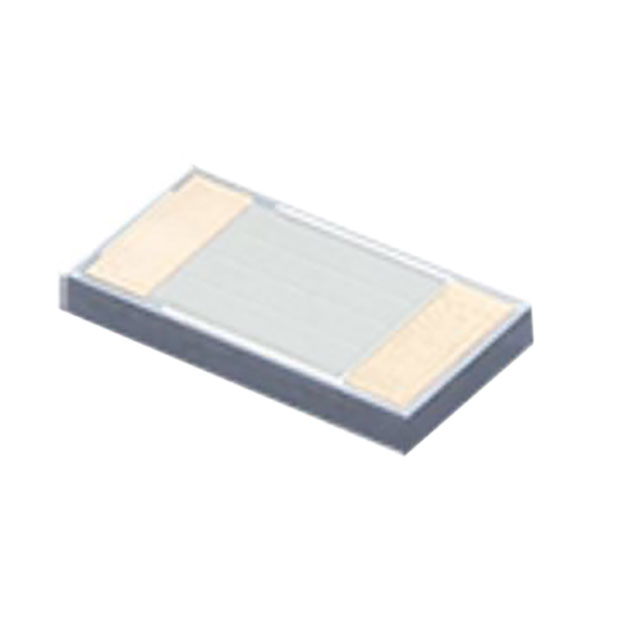

Murata Electronics 935151723510-T3N	10000 pF	15 %	0.8 mm	0.031 in	0.6 mm	0.024 "	100 pH	-55 C	150 °C	0201	300 mOhm	High Reliability Low Profile	High Stability	0.44 mm	0.017 in	0603 Metric	30 V
