R19197 Series

Catalog

SMA FEMALE - RP-MCX FEMALE STRAI

Part	Mating Cycles	Body Material	Center Contact Material	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Adapter Type	Center Gender	Conversion Type	Mounting Type	Impedance	Convert From (Adapter End)	Center Contact Plating	Style	Frequency - Max [Max]	Adapter Series	Fastening Type	Convert To (Adapter End)
Radiall USA, Inc. R191976020	5000	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	-55 C	165 °C	White Bronze	Plug to Jack	Female to Female	Between Series	Free Hanging (In-Line)	50 Ohms	Female Socket SMA Jack	Gold	Straight	6000 MHz	SMA to RP-MCX	Snap-On Threaded	Female Socket RP-MCX Plug

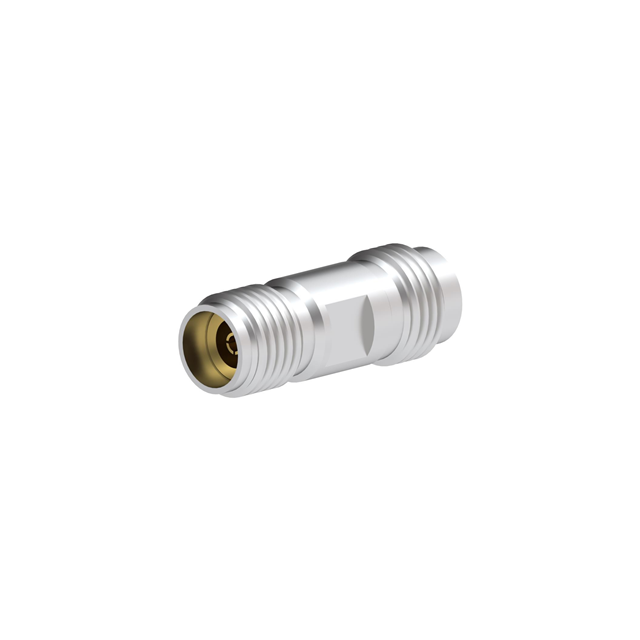

Radiall USA, Inc. R191970091	500	Stainless Steel	Beryllium Copper	Polyetherimide (PEI)	-65 ░C	165 °C		Jack to Jack	Female to Female	Same Series	Free Hanging (In-Line)	50 Ohms	Female Socket SMA Jack	Gold	Straight	46 GHz	SMA to SMA		SMA Jack Female Socket

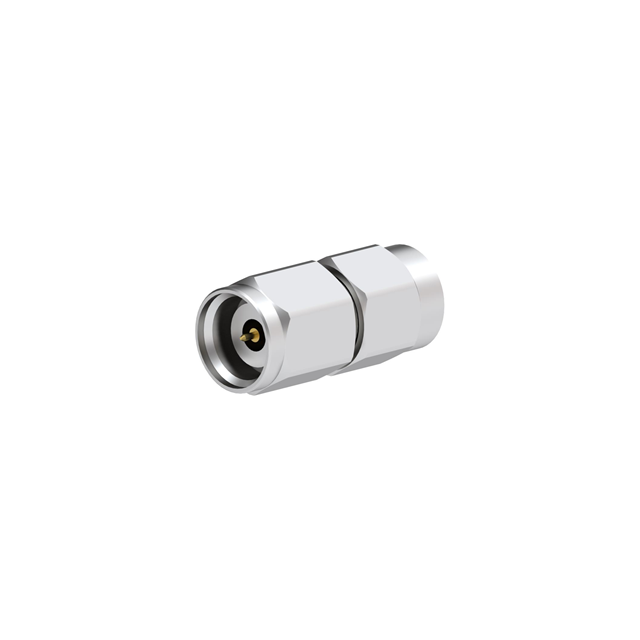

Radiall USA, Inc. R191970061	500	Stainless Steel	Beryllium Copper	Polyamide (PA) Nylon	-65 ░C	165 °C		Plug to Plug	Male to Male	Same Series	Free Hanging (In-Line)	50 Ohms	Male Pin SMA Plug	Gold	Straight	46 GHz	SMA to SMA		SMA Plug Male Pin

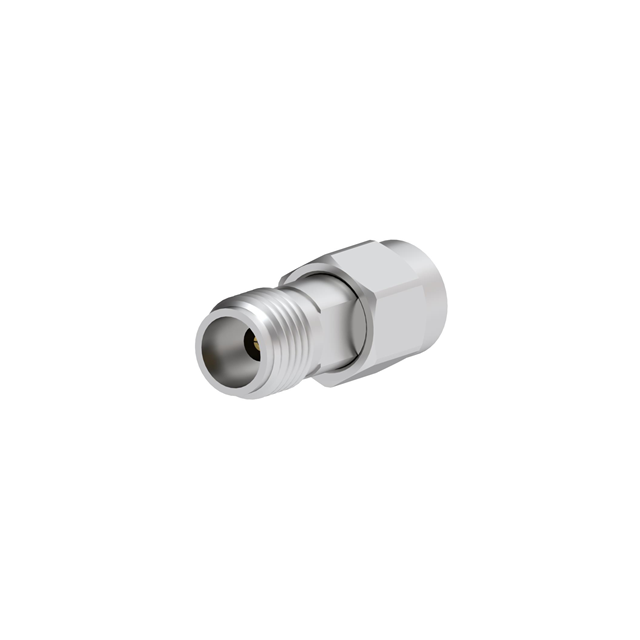

Radiall USA, Inc. R191970071	500	Stainless Steel	Beryllium Copper	Polyamide (PA) Nylon	-65 ░C	165 °C		Plug to Jack		Same Series	Free Hanging (In-Line)	50 Ohms	Male Pin SMA Plug	Gold	Straight	46 GHz	SMA to SMA		SMA Jack Female Socket

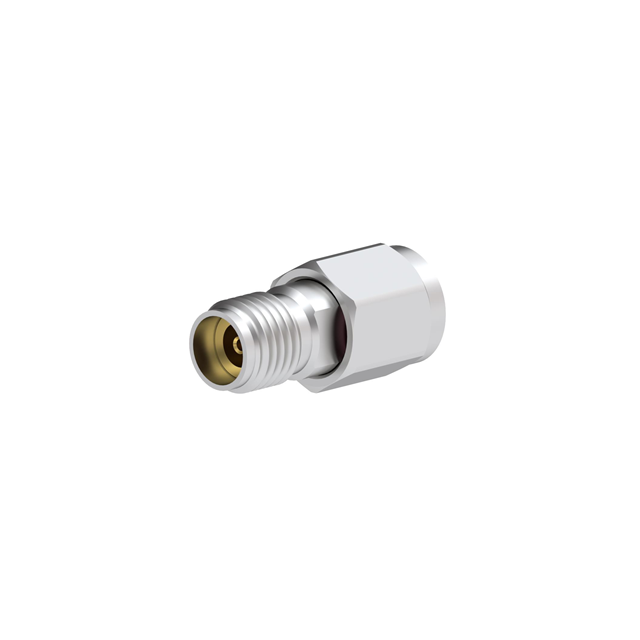

Radiall USA, Inc. R191970081	500	Stainless Steel	Beryllium Copper	Polyamide (PA) Nylon	-65 ░C	165 °C		Plug to Jack		Same Series	Free Hanging (In-Line)	50 Ohms	Female Socket SMA Jack	Gold	Straight	46 GHz	SMA to SMA		SMA Plug Male Pin

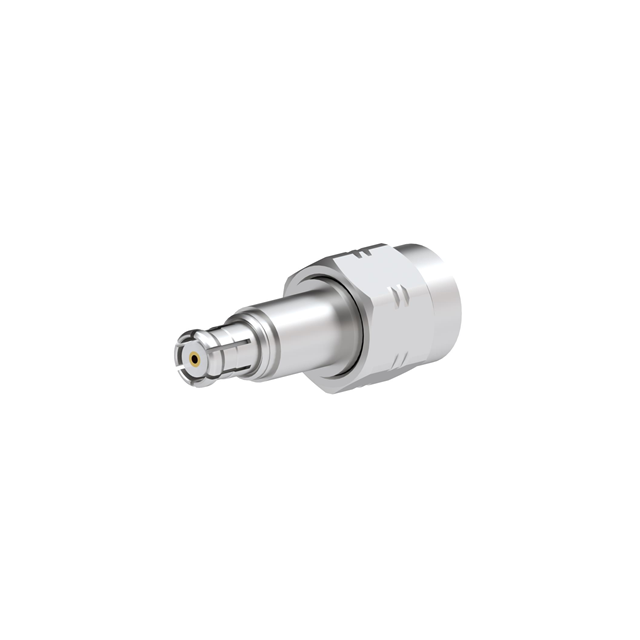

Radiall USA, Inc. R191977020	500	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	-55 C	155 C	Nickel	Plug to Plug		Between Series	Free Hanging (In-Line)	50 Ohms	Male Pin SMA Plug	Gold	Straight	6000 MHz	SMA to RP-MCX	Snap-On Threaded	Female Socket RP-MCX Plug
Radiall USA, Inc. R191976020W	5000	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	-55 C	165 °C	White Bronze	Plug to Jack	Female to Female	Between Series	Free Hanging (In-Line)	50 Ohms	Female Socket SMA Jack	Gold	Straight	6000 MHz	SMA to RP-MCX	Snap-On Threaded	Female Socket RP-MCX Plug
