3128-2 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PC PIN CIRC 0.020DIA GOLD

Part	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Above Flange [x]	Length - Above Flange [x]	Contact Material	Length - Overall [x]	Length - Overall [x]	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Mounting Type	Length - Below Flange [x]	Length - Below Flange [x]	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Terminal Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Terminal Style	Insulation

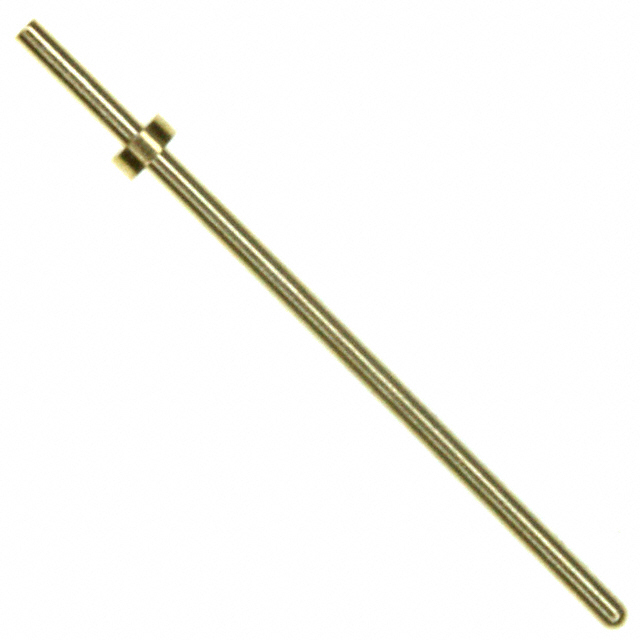

Mill-Max Manufacturing Corp. 3128-2-00-15-00-00-08-0	0.046 "	1.17 mm	0.425 in	10.8 mm	Brass Alloy	13.84 mm	0.545 in	0.02 in	0.51 mm	Through Hole	2.54 mm	0.1 "	Solder	0.25 Ám	10 Áin	Gold	PC Pin	0.61 mm	0.024 in	0.02 in	0.51 mm	Single End	Non-Insulated
Mill-Max Manufacturing Corp. 3128-2-00-01-00-00-08-0	0.046 "	1.17 mm	0.425 in	10.8 mm	Brass Alloy	13.84 mm	0.545 in	0.02 in	0.51 mm	Through Hole	2.54 mm	0.1 "	Solder	5.08 Ám	200 Áin	Tin-Lead	PC Pin	0.61 mm	0.024 in	0.02 in	0.51 mm	Single End	Non-Insulated
Mill-Max Manufacturing Corp. 3128-2-00-80-00-00-08-0	0.046 "	1.17 mm	0.425 in	10.8 mm	Brass	36.7 mm	1.445 in	0.02 in	0.51 mm	Through Hole	2.54 mm	0.1 "	Solder	5.08 Ám	200 Áin	Tin	PC Pin	0.61 mm	0.024 in	0.02 in	0.51 mm	Single End	Non-Insulated

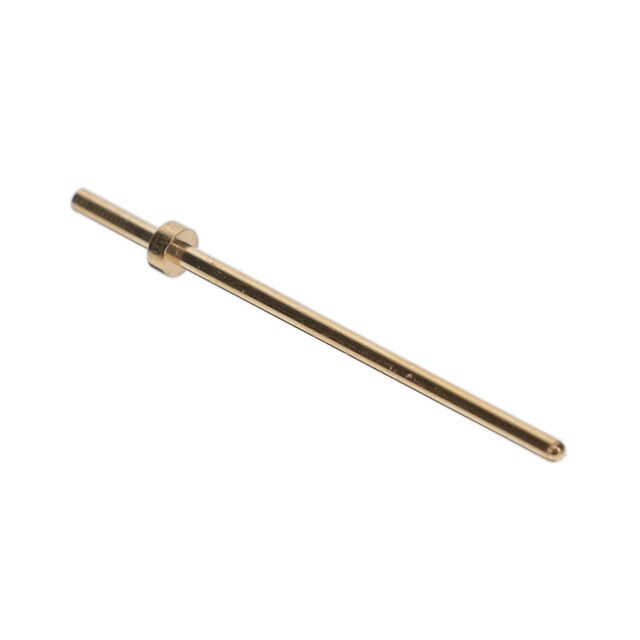

Mill-Max Manufacturing Corp. 3128-2-00-21-00-00-08-0	0.046 "	1.17 mm	0.425 in	10.8 mm	Brass Alloy	13.84 mm	0.545 in	0.02 in	0.51 mm	Through Hole	2.54 mm	0.1 "	Solder	0.51 µm	20 µin	Gold	PC Pin	0.61 mm	0.024 in	0.02 in	0.51 mm	Single End	Non-Insulated

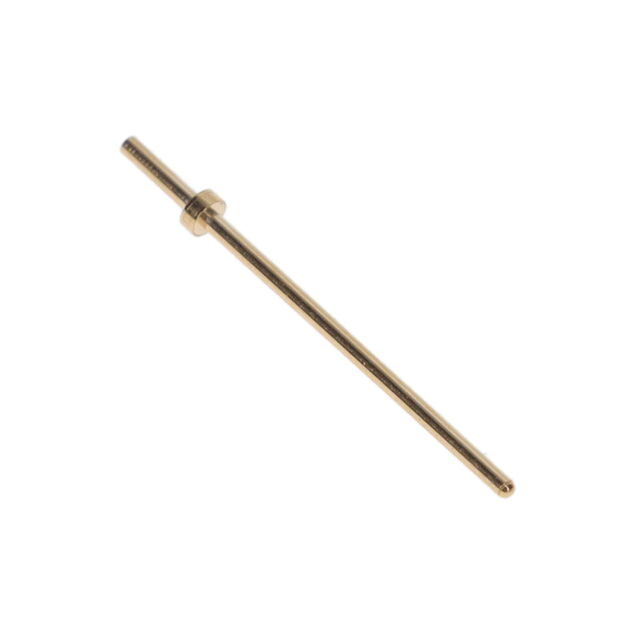

Mill-Max Manufacturing Corp. 3128-2-00-34-00-00-08-0	0.046 "	1.17 mm	0.425 in	10.8 mm	Brass Alloy	13.84 mm	0.545 in	0.02 in	0.51 mm	Through Hole	2.54 mm	0.1 "	Solder	1.27 µm	50 µin	Gold	PC Pin	0.61 mm	0.024 in	0.02 in	0.51 mm	Single End	Non-Insulated
