ASMT-C Series

Catalog

LED BLUE CLEAR CHIP SMD R/A

Part	Wavelength - Peak	Lens Transparency	Current - Test	Package / Case	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Wavelength - Dominant	Millicandela Rating	Configuration	Color	Lens Size [x]	Lens Size [y]	Lens Color	Supplier Device Package	Lens Style	Voltage - Forward (Vf) (Typ)	Height (Max) [z]	Package / Case	Height (Max) [z]
Broadcom Limited ASMT-CB00	469 nm	Clear	5 mA	2-SMD No Lead	Right Angle Surface Mount	1 mm	1.6 mm	150 °	473 nm	18 mcd	Standard	Blue	1.2 mm	0.5 mm	Colorless	Chip LED	Rectangle with Domed Top	2.85 V	0.45 mm
Broadcom Limited ASMT-CG00				0603	Surface Mount	0.8 mm	1.6 mm	150 °								Chip LED				1608 Metric
Broadcom Limited ASMT-CR00	637 nm	Clear	20 mA	2-SMD No Lead	Surface Mount	1 mm	1.6 mm	150 °	626 nm	90 mcd	Standard	Red	1.2 mm	0.5 mm	Colorless	Chip LED	Rectangle with Domed Top	1.9 V			0.4 mm
Broadcom Limited ASMT-CA00	595 nm	Clear	20 mA	2-SMD No Lead	Right Angle Surface Mount	1 mm	1.6 mm	150 °	592 nm	90 mcd	Standard	Amber	1.2 mm	0.5 mm	Colorless	Chip LED	Rectangle with Domed Top	1.9 V	0.45 mm
Broadcom Limited ASMT-CW40		Diffused	5 mA	2-SMD No Lead	Right Angle Surface Mount	1 mm	1.6 mm	150 °		115 mcd	Standard	White	1.1 mm	0.3 mm	White	Chip LED	Rectangle with Flat Top	2.9 V			0.3 mm

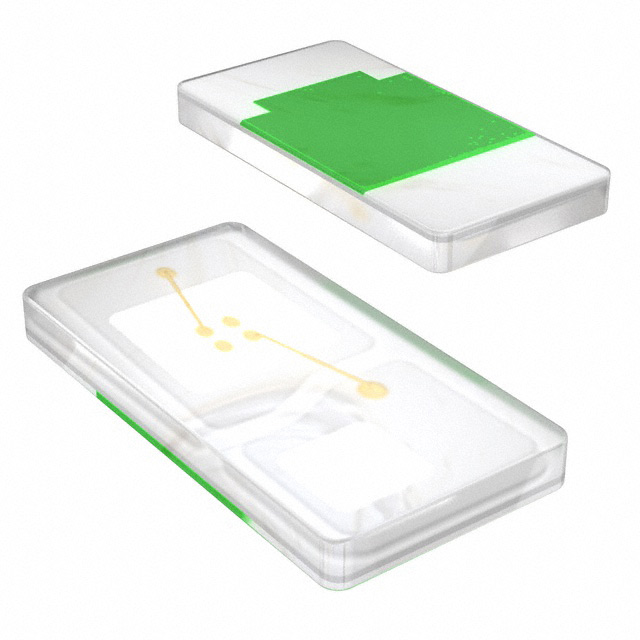

Broadcom Limited ASMT-CW20			5 mA	0603	Surface Mount	0.8 mm	1.6 mm	150 °		180 mcd	Standard	White	1.6 mm	0.8 mm		Chip LED	Rectangle with Flat Top	3 V		1608 Metric	0.3 mm
