0332-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Length - Overall	Length - Overall [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Contact Material	Termination	Socket Depth	Socket Depth	Tail Type	Features

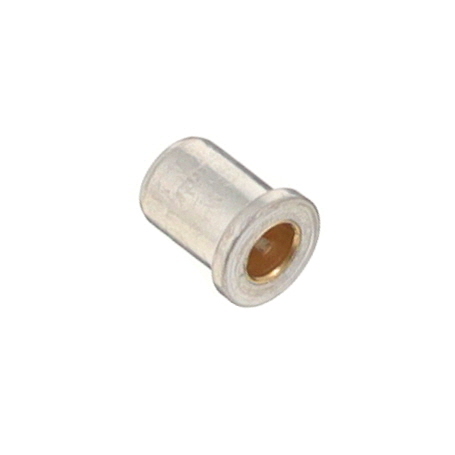

Mill-Max Manufacturing Corp. 0332-0-15-80-18-27-10-0	-55 C	125 °C	1.37 mm	0.054 in	2.67 mm	0.105 in	Gold	30 Áin	0.76 Ám	0.09 in	2.29 mm	0.079 in	2.01 mm	0.043 in	1.09 mm	0.94 mm	0.037 in	Beryllium Copper	Solder	2.67 mm	0.105 in	No Tail
Mill-Max Manufacturing Corp. 0332-0-15-15-18-27-10-0	-55 C	125 °C	1.37 mm	0.054 in	2.67 mm	0.105 in	Gold	30 Áin	0.76 Ám	0.09 in	2.29 mm	0.079 in	2.01 mm	0.043 in	1.09 mm	0.94 mm	0.037 in	Beryllium Copper	Solder	2.67 mm	0.105 in	No Tail

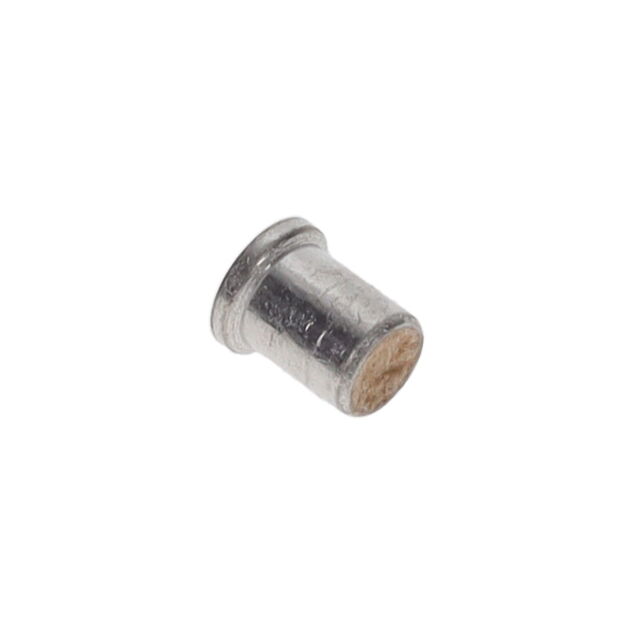

Mill-Max Manufacturing Corp. 0332-0-43-80-18-27-10-0	-55 C	125 °C	1.37 mm	0.054 in	2.67 mm	0.105 in	Gold	30 Áin	0.76 Ám	0.09 in	2.29 mm	0.079 in	2.01 mm	0.043 in	1.09 mm	0.94 mm	0.037 in	Beryllium Copper	Solder	2.67 mm	0.105 in	No Tail	Knockout Bottom (Organic Fiber Plug®)

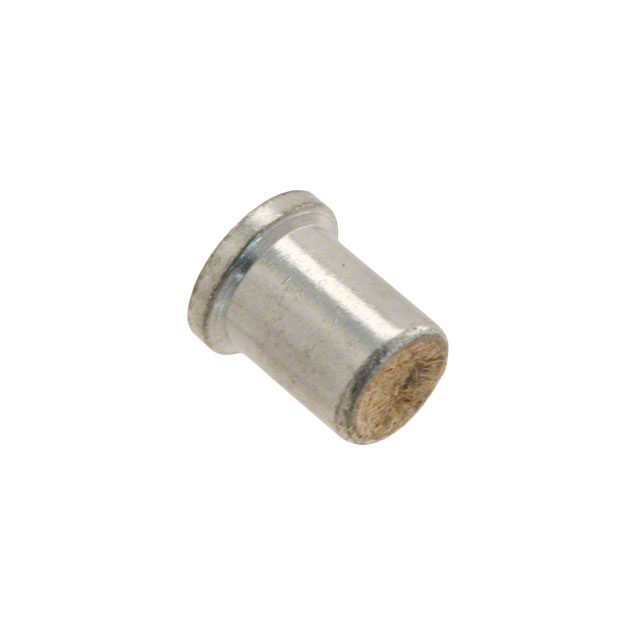

Mill-Max Manufacturing Corp. 0332-0-67-80-18-27-10-0	-55 C	125 °C	1.37 mm	0.054 in	2.67 mm	0.105 in	Gold	30 Áin	0.76 Ám	0.09 in	2.29 mm	0.079 in	2.01 mm	0.043 in	1.09 mm	0.94 mm	0.037 in	Beryllium Copper	Solder	2.67 mm	0.105 in	No Tail	Knockout Bottom (Organic Fiber Plug®)
