PE0603J Series

Manufacturer: YAGEO

Catalog

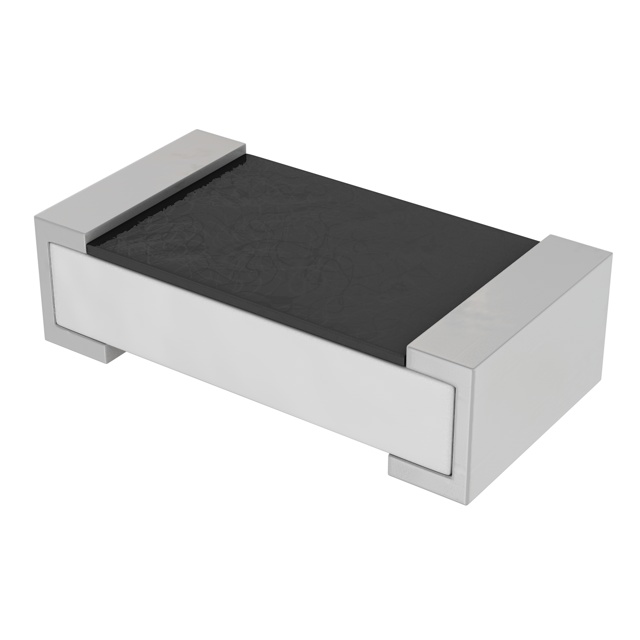

RES 0.015 OHM 5% 1/10W 0603

Part	Tolerance	Ratings	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]	Composition	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	Features	Number of Terminations [custom]	Power (Watts)	Power (Watts)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance	Power (Watts) [Min]	Power (Watts) [Max]
YAGEO PE0603JRF070R015L	5 %	AEC-Q200	100 ppm/°C	170 °C	-55 C	Metal Film	0.03 "	0.063 "	0.76 mm	1.6 mm	1608 Metric	0603	Automotive AEC-Q200 Current Sense	2	0.1 W	0.1 W	0.6 mm	0.024 in	15 mOhms
YAGEO PE0603JRF7W0R015L	5 %	AEC-Q200	100 ppm/°C	170 °C	-55 C	Metal Film	0.03 "	0.063 "	0.76 mm	1.6 mm	1608 Metric	0603	Automotive AEC-Q200 Current Sense	2	0.2 W	0.2 W	0.6 mm	0.024 in	15 mOhms
YAGEO PE0603JRF470R05L	5 %	AEC-Q200	100 ppm/°C	170 °C	-55 C	Metal Film	0.03 "	0.063 "	0.76 mm	1.6 mm	1608 Metric	0603	Automotive AEC-Q200 Current Sense	2	0.4 W		0.6 mm	0.024 in	0.05 Ohms	2 W	5 W
YAGEO PE0603JRF470R04L	5 %	AEC-Q200	100 ppm/°C	170 °C	-55 C	Metal Film	0.03 "	0.063 "	0.76 mm	1.6 mm	1608 Metric	0603	Automotive AEC-Q200 Current Sense	2	0.4 W		0.6 mm	0.024 in		2 W	5 W
YAGEO PE0603JRF7T0R039L	5 %	AEC-Q200	100 ppm/°C	170 °C	-55 C	Metal Film	0.03 "	0.063 "	0.76 mm	1.6 mm	1608 Metric	0603	Automotive AEC-Q200 Current Sense	2	0.333 W	0.3333333333333333 W	0.6 mm	0.024 in	39 mOhms
YAGEO PE0603JRF470R02L	5 %	AEC-Q200	100 ppm/°C	170 °C	-55 C	Metal Film	0.03 "	0.063 "	0.76 mm	1.6 mm	1608 Metric	0603	Automotive AEC-Q200 Current Sense	2	0.4 W		0.6 mm	0.024 in	0.02 Ohms	2 W	5 W
YAGEO PE0603JRF7W0R005L	5 %	AEC-Q200	100 ppm/°C	170 °C	-55 C	Metal Film	0.03 "	0.063 "	0.76 mm	1.6 mm	1608 Metric	0603	Automotive AEC-Q200 Current Sense	2	0.2 W	0.2 W	0.6 mm	0.024 in	5 mOhms
YAGEO PE0603JRF570R015L	5 %	AEC-Q200	100 ppm/°C	170 °C	-55 C	Metal Film	0.03 "	0.063 "	0.76 mm	1.6 mm	1608 Metric	0603	Automotive AEC-Q200 Current Sense	2	0.5 W	0.5 W	0.6 mm	0.024 in	15 mOhms
YAGEO PE0603JRF570R04L	5 %	AEC-Q200	100 ppm/°C	170 °C	-55 C	Metal Film	0.03 "	0.063 "	0.76 mm	1.6 mm	1608 Metric	0603	Automotive AEC-Q200 Current Sense	2	0.5 W	0.5 W	0.6 mm	0.024 in
YAGEO PE0603JRF7T0R033L	5 %	AEC-Q200	100 ppm/°C	170 °C	-55 C	Metal Film	0.03 "	0.063 "	0.76 mm	1.6 mm	1608 Metric	0603	Automotive AEC-Q200 Current Sense	2	0.333 W	0.3333333333333333 W	0.6 mm	0.024 in	33 mOhms
