SD Series

Catalog

PIEZO BUZZERS & AUDIO INDICATORS ROUND 16MMX14MM 2048HZ VIN=3-6V

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Supply	Termination	Technology	Driver Circuitry	Frequency	Sound Pressure Level (SPL)	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Operating Mode	Mounting Type	Port Location	Size / Dimension [diameter]	Size / Dimension [diameter]	Input Type	Voltage Range [Max]	Voltage Range [Min]
TDK Corporation SD1614T5-B1	14 mm	0.551 in	80 mA	PC Pins	Magnetic	Externally Driven Transducer	2.048 kHz	85 dB	5 V	85 °C	-40 C	Single Tone	Through Hole	Top	0.63 in	16 mm	Zero-Peak Signal	6 VDC	3 V

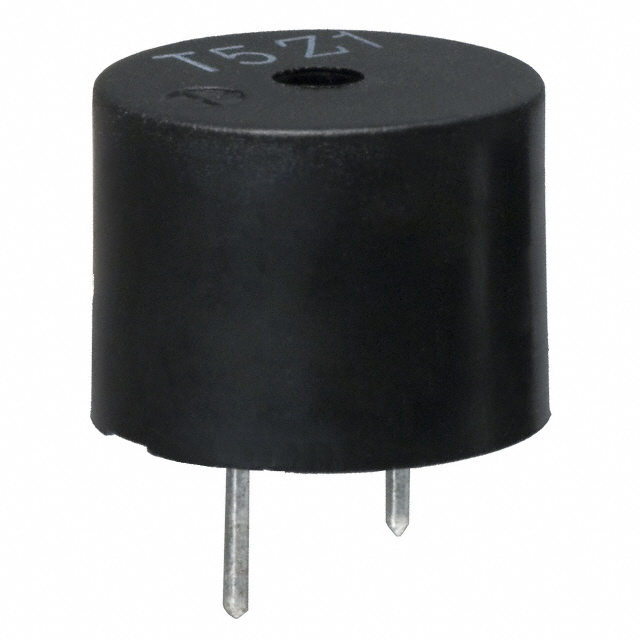

TDK Corporation SD1209T5-A1	9 mm	0.354 in	60 mA	PC Pins	Magnetic	Externally Driven Transducer	2.048 kHz	80 dB	5 V	85 °C	-40 C	Single Tone	Through Hole	Top	0.472 "	12 mm	Zero-Peak Signal	6 VDC	3 V
