HF Series

Catalog

SIGNAL CONDITIONING 1500MHZ SIZE 3116

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Frequency	Insertion Loss	Filter Type	Height (Max) [z]	Package / Case

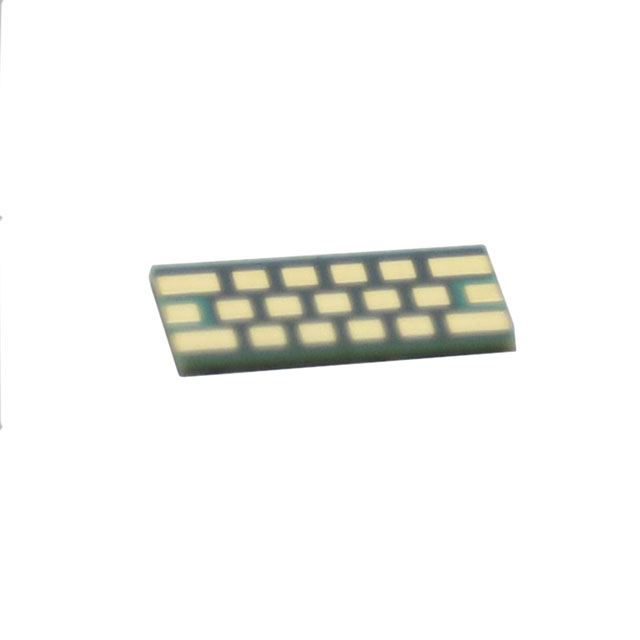

KYOCERA AVX HF0BA1500A700	Surface Mount	3.98 mm	0.306 in	7.79 mm	0.156 in	1.5 GHz	1.2 dB	High Pass	0.022 in 0.56 mm

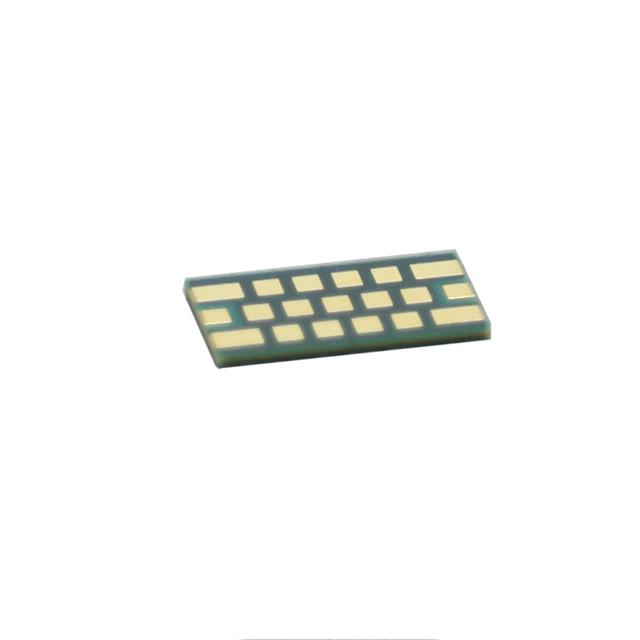

KYOCERA AVX HF0BA1550A700	Surface Mount	3.98 mm	0.306 in	7.79 mm	0.156 in	1.55 GHz	1.2 dB	High Pass	0.022 in 0.56 mm

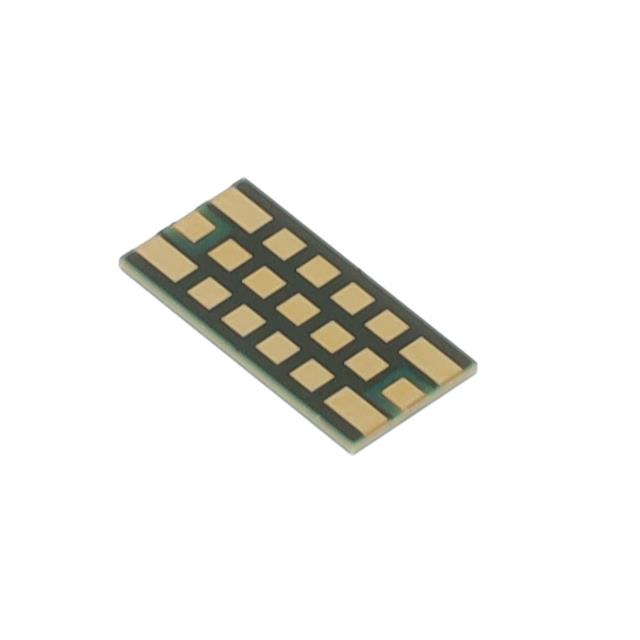

KYOCERA AVX HF0BA1840A700	Surface Mount	3.98 mm	0.306 in	7.79 mm	0.156 in	1.84 GHz	1.2 dB	High Pass	0.022 in 0.56 mm
KYOCERA AVX HF0AA2290A700	Surface Mount	3.98 mm	0.259 in	6.58 mm	0.156 in	2.29 GHz	1.2 dB	High Pass	0.022 in 0.56 mm	16-ULGA
