REC3-S_DR Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 3W DC/DC 1KV REG 12VIN 12VOUT

...

Part	Applications	Mounting Type	Current - Output (Max) [Max]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Efficiency	Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Power (Watts)	Number of Outputs	Package / Case	Package / Case	Voltage - Output 2	Current - Output (Max)

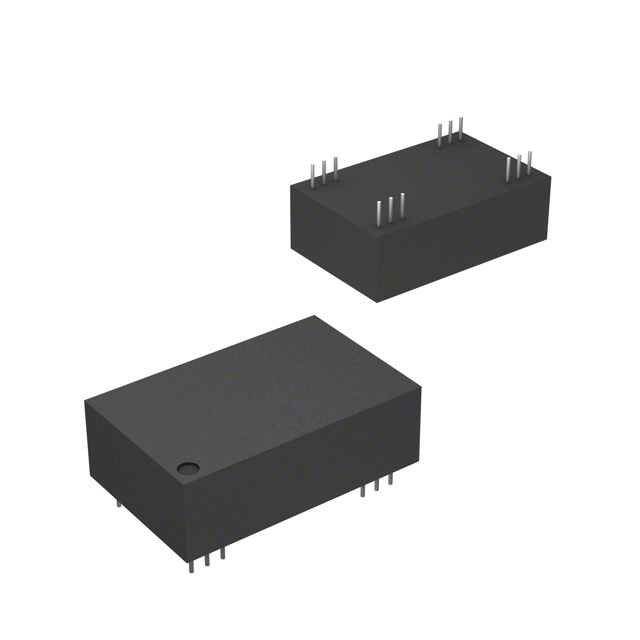

Recom Power REC3-1212SR/H1/M	ITE (Commercial)	Through Hole	250 mA	12 V	80 °C	-40 C	10.8 V	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	SCP	65 %	Isolated Module	13.2 V	1000 V	3 W	1	12 Leads	24-DIP Module

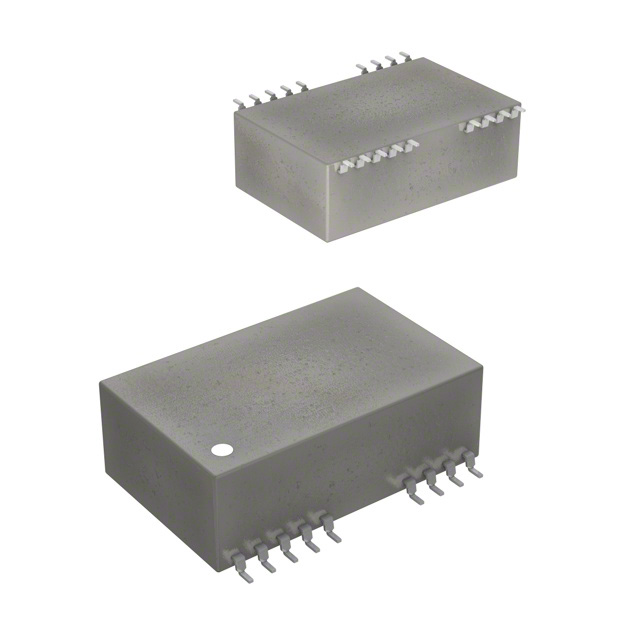

Recom Power REC3-1205DR/H1/SMD-R	ITE (Commercial)	Surface Mount	0.3 A	5 V	80 °C	-40 C	10.8 V	11.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.44 in	SCP	75 %	Isolated Module	13.2 V	1000 V	3 W	2		24-SMD Module 18 Leads	-5 V
Recom Power REC3-0505DR/H1	ITE (Commercial)	Through Hole	0.3 A	5 V	80 °C	-40 C	4.5 V	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	SCP	75 %	Isolated Module	5.5 V	1000 V	3 W	2	12 Leads	24-DIP Module	-5 V
Recom Power REC3-0515SR/H1/M	ITE (Commercial)	Through Hole	200 mA	15 V	80 °C	-40 C	4.5 V	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	SCP	65 %	Isolated Module	5.5 V	1000 V	3 W	1	12 Leads	24-DIP Module
Recom Power REC3-2412DR/H1	ITE (Commercial)	Through Hole		12 V	80 °C	-40 C	21.6 V	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	SCP	75 %	Isolated Module	26.4 V	1000 V	3 W	2	12 Leads	24-DIP Module	-12 V	125 mA
Recom Power REC3-2405DR/H1/SMD	ITE (Commercial)	Surface Mount	0.3 A	5 V	80 °C	-40 C	21.6 V	11.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.44 in	SCP	75 %	Isolated Module	26.4 V	1000 V	3 W	2		24-SMD Module 18 Leads	-5 V
Recom Power REC3-0515SR/H1/M/SMD-R	ITE (Commercial)	Surface Mount	200 mA	15 V	80 °C	-40 C	4.5 V	11.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.44 in	SCP	65 %	Isolated Module	5.5 V	1000 V	3 W	1		24-SMD Module 18 Leads
Recom Power REC3-1205SR/H1/SMD	ITE (Commercial)	Surface Mount	600 mA	5 V	80 °C	-40 C	10.8 V	11.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.44 in	SCP	65 %	Isolated Module	13.2 V	1000 V	3 W	1		24-SMD Module 18 Leads
Recom Power REC3-1205SR/H1	ITE (Commercial)	Through Hole	600 mA	5 V	80 °C	-40 C	10.8 V	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	SCP	65 %	Isolated Module	13.2 V	1000 V	3 W	1	12 Leads	24-DIP Module
Recom Power REC3-1205DR/H1M/SMD	ITE (Commercial)	Surface Mount	0.3 A	5 V	80 °C	-40 C	10.8 V	11.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.44 in	SCP	75 %	Isolated Module	13.2 V	1000 V	3 W	2		24-SMD Module 18 Leads	-5 V
