OD5015 Series
Manufacturer: ORION FANS
Beta
⌘K

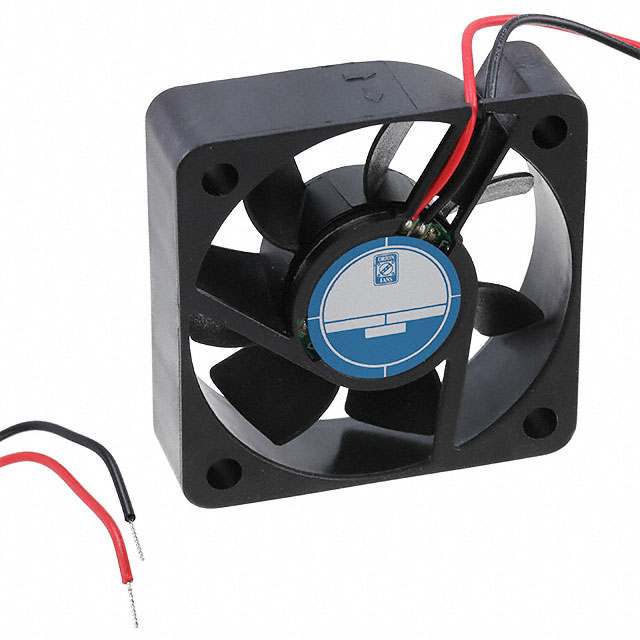

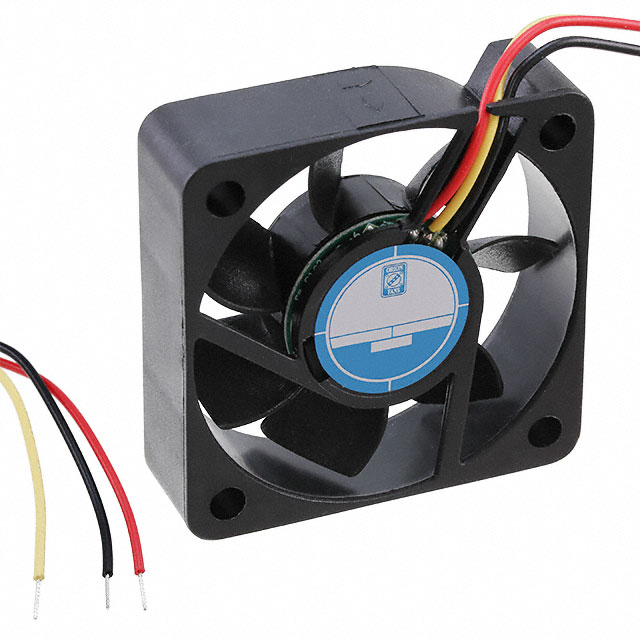

FAN AXIAL 50X15MM 24VDC WIRE
| Part | Material - Blade | Material - Frame | Size / Dimension [x] | Size / Dimension [z] | Fan Type | Bearing Type | Termination | Voltage - Rated | Width [y] | Features | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 50 mm | 50 mm | Tubeaxial | Ball | 3 Wire Leads | 24 VDC | 15 mm | Speed Sensor (Tach) | |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 50 mm | 50 mm | Tubeaxial | Sealed Sleeve | 3 Wire Leads | 12 VDC | 15 mm | Locked Rotor Sensor | cURus TUV |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 50 mm | 50 mm | Tubeaxial | Ball | 3 Wire Leads | 12 VDC | 15 mm | Speed Sensor (Tach) | cURus TUV |
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 50 mm | 50 mm | Tubeaxial | Sleeve | 2 Wire Leads | 5 V | 15 mm | cURus TUV | |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 50 mm | 50 mm | Tubeaxial | Sleeve | 3 Wire Leads | 12 VDC | 15 mm | Locked Rotor Sensor | |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 50 mm | 50 mm | Tubeaxial | Sealed Sleeve | 3 Wire Leads | 12 VDC | 15 mm | Speed Sensor (Tach) | |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 50 mm | 50 mm | Tubeaxial | Ball | 2 Wire Leads | 24 VDC | 15 mm | ||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 50 mm | 50 mm | Tubeaxial | Ball | 3 Wire Leads | 12 VDC | 15 mm | Locked Rotor Sensor | cURus TUV |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 50 mm | 50 mm | Tubeaxial | Sleeve | 2 Wire Leads | 12 VDC | 15 mm | cURus TUV | |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 50 mm | 50 mm | Tubeaxial | Ball | 3 Wire Leads | 12 VDC | 15 mm | Locked Rotor Sensor |
