PXD Series
Manufacturer: Chemi-Con
Beta
⌘K

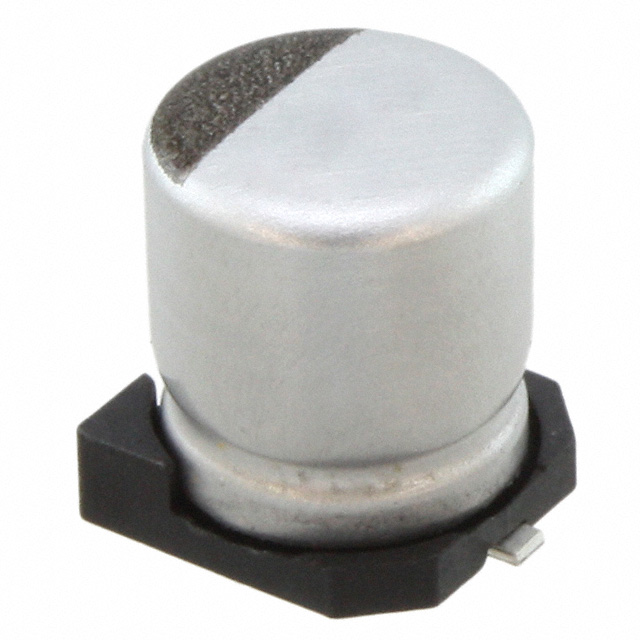

ALUMINUM ORGANIC POLYMER CAPACITORS 6.3VOLTS 56UF 5X6
| Part | Operating Temperature [Min] | Operating Temperature [Max] | ESR (Equivalent Series Resistance) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Applications | Lifetime @ Temp. | Voltage - Rated | Tolerance | Ripple Current @ High Frequency | Capacitance | Package / Case | Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Chemi-Con | -55 C | 125 °C | 45 mOhm | 6.1 mm | 0.24 " | 0.209 in 5.3 mm | 0.209 in 5.3 mm | General Purpose | 2000 Hrs | 6.3 VDC | 20 % | 1.38 A | 56 µF | Radial Can - SMD | Polymer | 0.197 in | 5 mm | Surface Mount |
