AM50626 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

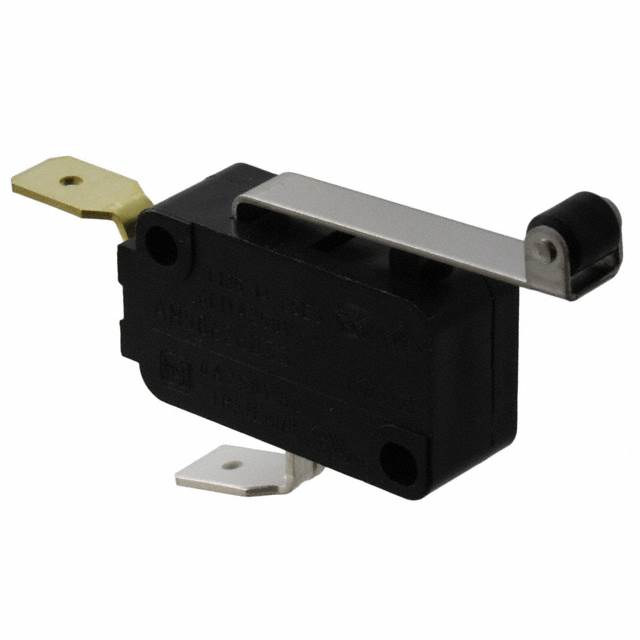

SWITCH SNAP ACT SPST-NC 6A 125V
| Part | Mechanical Life | Electrical Life | Voltage Rating - DC | Switch Function | Current Rating (Amps) | Actuator Type | Release Force | Termination Style | Circuit | Voltage Rating - AC | Pretravel | Pretravel | Overtravel [custom] | Overtravel [custom] | Operating Position | Operating Position | Operating Force | Differential Travel | Differential Travel | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 10000000 Cycles | 100000 Cycles | 125 VDC | On-Mom | 6 A 500 mA | Lever Roller | 5.099 gf | Quick Connect - 0.250" (6.3mm) | SPST-NC | 125 V | 0.125 in | 3.2 mm | 1.4 mm | 0.055 " | 20.7 mm | 0.815 in | 30 gf | 1 mm | 0.04 in | Chassis Mount | 105 ░C | -25 °C |
