RP12-AW Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 12W DC/DC 1.6KV REG 4:1 18-75IN +/-15OUT

Part	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Current - Output (Max)	Package / Case	Type	Control Features	Voltage - Isolation	Number of Outputs	Voltage - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Mounting Type	Applications	Current - Output (Max) [Max]

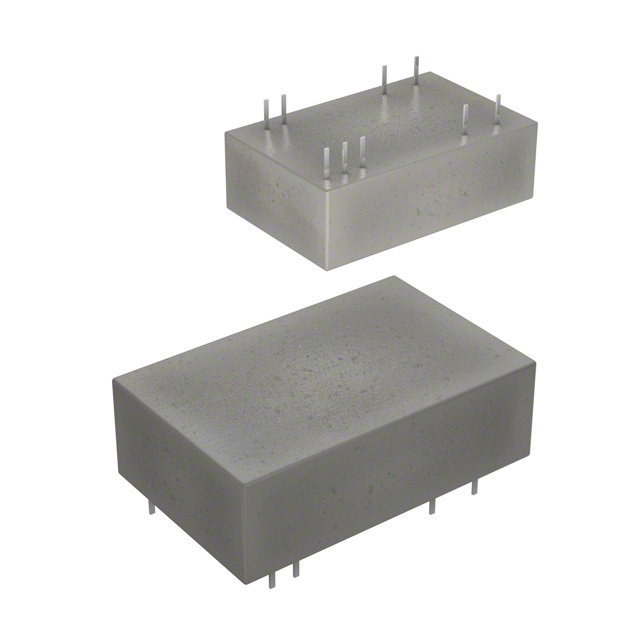

Recom Power RP12-4815DAW	OCP OVP Remote On/Off SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	87 %	12 W	75 V	18 V	400 mA	24-DIP Module 9 Leads	Isolated Module	Active High Enable	1.6 kV	2	-15 V	-40 C	65 °C	15 V	Through Hole	ITE (Commercial)

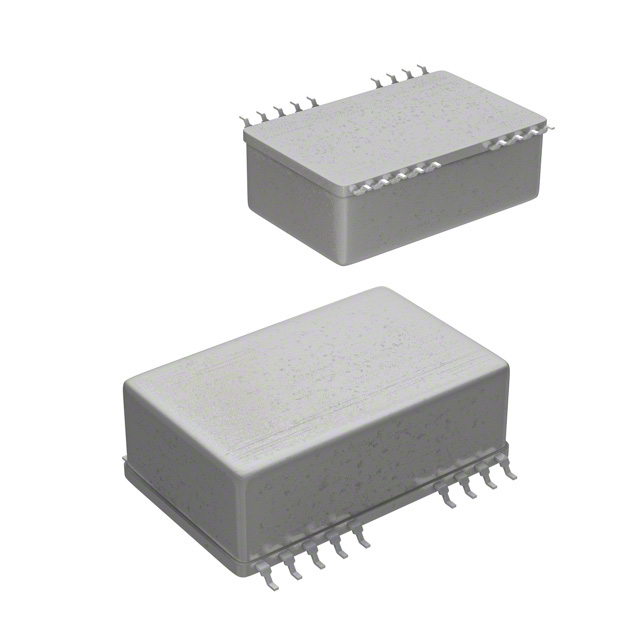

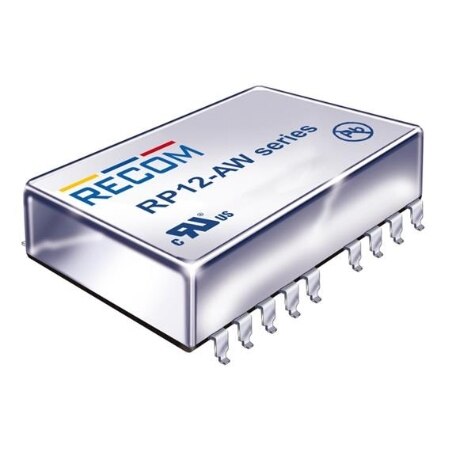

Recom Power RP12-2415SAW/SMD	OCP OVP Remote On/Off SCP	0.8 "	0.44 in	32 mm	11.2 mm	20.3 mm	1.26 in	86 %	12 W	36 V	9 V		24-SMD Module 18 Leads	Isolated Module	Active High Enable	1.6 kV	1		-40 C	65 °C	15 V	Surface Mount	ITE (Commercial)	0.8 A
Recom Power RP12-2415SAW	OCP OVP Remote On/Off SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	86 %	12 W	36 V	9 V		24-DIP Module 9 Leads	Isolated Module	Active High Enable	1.6 kV	1		-40 C	65 °C	15 V	Through Hole	ITE (Commercial)	0.8 A
Recom Power RP12-243.3SAW/SMD	OCP OVP Remote On/Off SCP	0.8 "	0.44 in	32 mm	11.2 mm	20.3 mm	1.26 in	84 %	12 W	36 V	9 V		24-SMD Module 18 Leads	Isolated Module	Active High Enable	1.6 kV	1		-40 C	61 °C	3.3 V	Surface Mount	ITE (Commercial)	3.5 A
Recom Power RP12-2415DAW/SMD	OCP OVP Remote On/Off SCP	0.8 "	0.44 in	32 mm	11.2 mm	20.3 mm	1.26 in	86 %	12 W	36 V	9 V	400 mA	24-SMD Module 18 Leads	Isolated Module	Active High Enable	1.6 kV	2	-15 V	-40 C	65 °C	15 V	Surface Mount	ITE (Commercial)
Recom Power RP12-483.3SAW/SMD	OCP OVP Remote On/Off SCP	0.8 "	0.44 in	32 mm	11.2 mm	20.3 mm	1.26 in	84 %	12 W	75 V	18 V		24-SMD Module 18 Leads	Isolated Module	Active High Enable	1.6 kV	1		-40 C	61 °C	3.3 V	Surface Mount	ITE (Commercial)	3.5 A
Recom Power RP12-2412DAW	OCP OVP Remote On/Off SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	86 %	12 W	36 V	9 V	500 mA	24-DIP Module 9 Leads	Isolated Module	Active High Enable	1.6 kV	2	-12 V	-40 C	65 °C	12 V	Through Hole	ITE (Commercial)
Recom Power RP12-2405DAW/SMD	OCP OVP Remote On/Off SCP	0.8 "	0.44 in	32 mm	11.2 mm	20.3 mm	1.26 in	84 %	12 W	36 V	9 V	1.2 A	24-SMD Module 18 Leads	Isolated Module	Active High Enable	1.6 kV	2	-5 V	-40 C	61 °C	5 V	Surface Mount	ITE (Commercial)
Recom Power RP12-4805DAW/SMD	OCP OVP Remote On/Off SCP	0.8 "	0.44 in	32 mm	11.2 mm	20.3 mm	1.26 in	85 %	12 W	75 V	18 V	1.2 A	24-SMD Module 18 Leads	Isolated Module	Active High Enable	1.6 kV	2	-5 V	-40 C	61 °C	5 V	Surface Mount	ITE (Commercial)
Recom Power RP12-2412DAW/SMD	OCP OVP Remote On/Off SCP	0.8 "	0.44 in	32 mm	11.2 mm	20.3 mm	1.26 in	86 %	12 W	36 V	9 V	500 mA	24-SMD Module 18 Leads	Isolated Module	Active High Enable	1.6 kV	2	-12 V	-40 C	65 °C	12 V	Surface Mount	ITE (Commercial)
