IPT60R145 Series
Manufacturer: INFINEON
Catalog

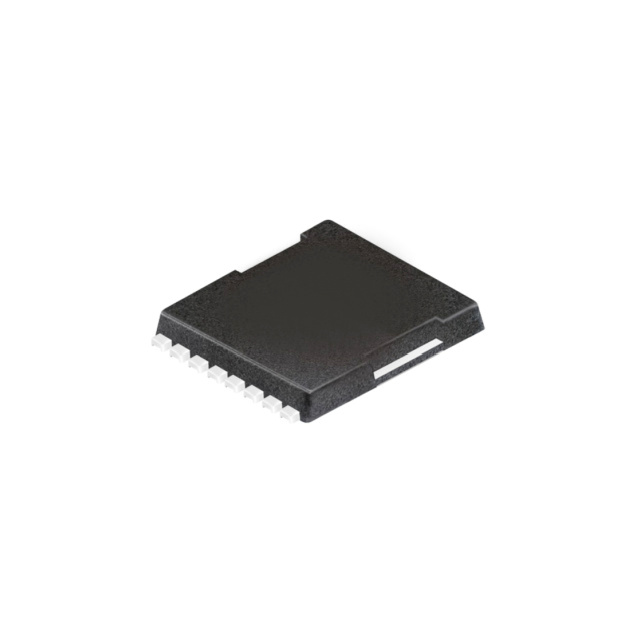

COOLMOS™ CFD7 N-CHANNEL SUPERJUNCTION MOSFET 600 V ; TOLL HSOF-8 PACKAGE; 145 MOHM;
| Part | Vgs(th) (Max) @ Id | Drive Voltage (Max Rds On, Min Rds On) | Power Dissipation (Max) [Max] | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Vgs (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Rds On (Max) @ Id, Vgs | Supplier Device Package | FET Type | Package / Case | Mounting Type | Gate Charge (Qg) (Max) @ Vgs | Technology | Input Capacitance (Ciss) (Max) @ Vds |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 4.5 V | 10 V | 116 W | 600 V | 19 A | 20 V | 150 °C | -55 °C | 145 mOhm | PG-HSOF-8-2 | N-Channel | 8-PowerSFN | Surface Mount | 28 nC | MOSFET (Metal Oxide) | 1199 pF |
