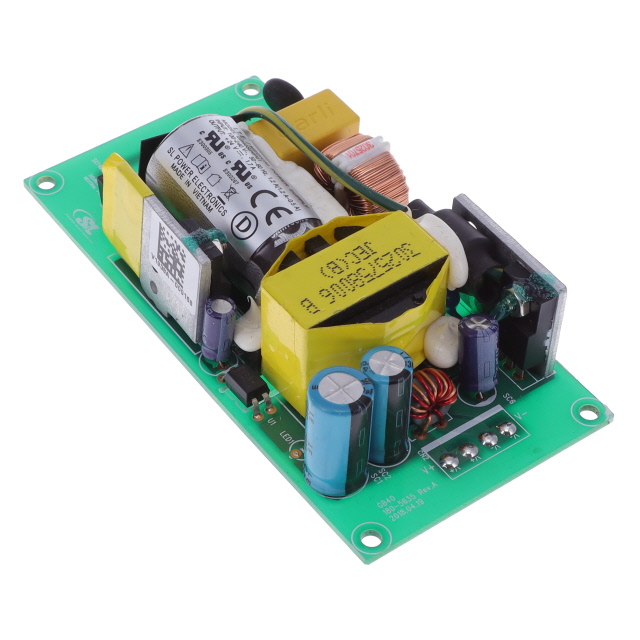

GB40S24 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC CONVERTER 24V 41W
| Part | Minimum Load Required | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Power (Watts) | Efficiency | Features | Approval Agency | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output 1 | Voltage - Isolation | Applications | Current - Output 1 | Mounting Type | Type | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 4 " | 101.6 mm | 1.9 " | 25.4 mm | 1 in | 48.3 mm | 41 W | 88 % | Universal Input | CE cURus UL | 100 VAC | 240 VAC | 24 V | 4000 V | ITE (Commercial) Medical | 1.7 A | Chassis Mount | Open Frame | 1 | 70 °C | -25 °C | ||
 SL POWER / Advanced Energy | 4 " | 101.6 mm | 2 in | 20.6 mm | 0.81 in | 50.8 mm | 41 W | 88 % | Universal Input | CE cURus DEMKO | 90 VAC | 264 VAC | 24 V | 4000 V | ITE (Commercial) Medical | 1.7 A | Chassis Mount | Open Frame | 1 | 70 °C | -25 °C | 60601-1; 62368-1 |
