DIN-Signal 2C Series

Manufacturer: HARTING

Catalog

DIN 41612 CONNECTOR, TYPE 2C SERIES, 48 CONTACTS, PLUG, 2.54 MM, 3 ROW, A + B + C

Part	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Pitch	Pitch	Number of Positions Loaded	Number of Positions	Contact Finish Thickness	Number of Rows [custom]	Contact Finish	Termination	Mounting Type	Style	Connector Type	Note	Connector Usage	Color	Features	Connector Style	Level, Class [custom]	Number of Positions Loaded	Level, Class
HARTING 09231486951	2 A	UL94 V-0	-55 C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm	All	48	Flash	3	Gold Gold-Palladium	Solder	Right Angle Through Hole	2C	Header Male Pins
HARTING 09232486421						0.1 "	2.54 mm	All	48		3	Gold-Palladium	Solder	Through Hole	2C	Receptacle Female Sockets

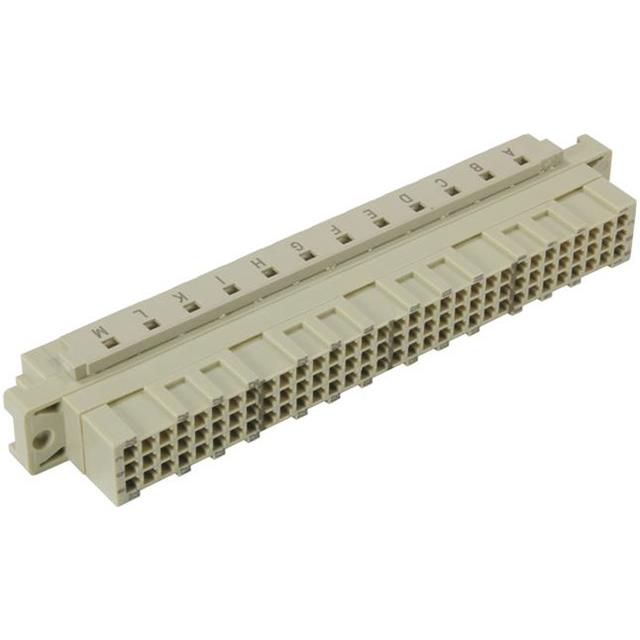

HARTING 09035963214						0.1 "	2.54 mm		96		3			Through Hole		Housing for Female Sockets	Contacts Not Included	Receptacle	Gray	Mounting Clips	DIN 41612 Type C

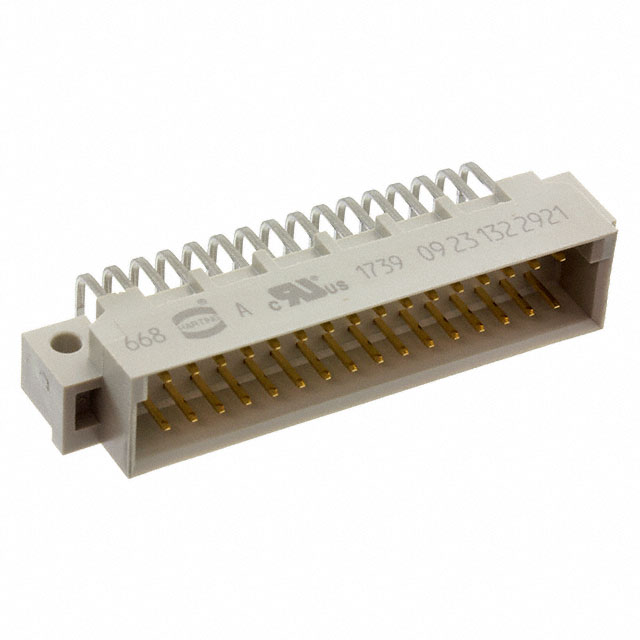

HARTING 09231322921						0.1 "	2.54 mm		48		3	Gold-Palladium	Solder	Right Angle Through Hole	2C	Header Male Pins						1	32
HARTING 09232482850						0.1 "	2.54 mm	All	48		3	Gold	Press-Fit	Through Hole	2C	Receptacle Female Sockets
HARTING 09231487922						0.1 "	2.54 mm	All	48	Flash	3	Gold Gold-Palladium	Solder	Through Hole	2C	Header Male Pins								3

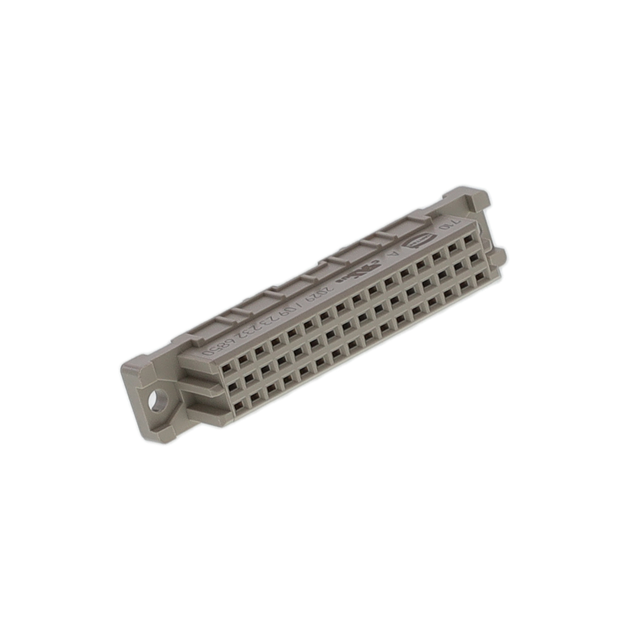

HARTING 09232326850		UL94 V-0	-40 C	105 ░C	Thermoplastic Glass Filled	0.1 "	2.54 mm		48		3		Press-Fit	Through Hole	2C	Receptacle Female Sockets							32
