202C611 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

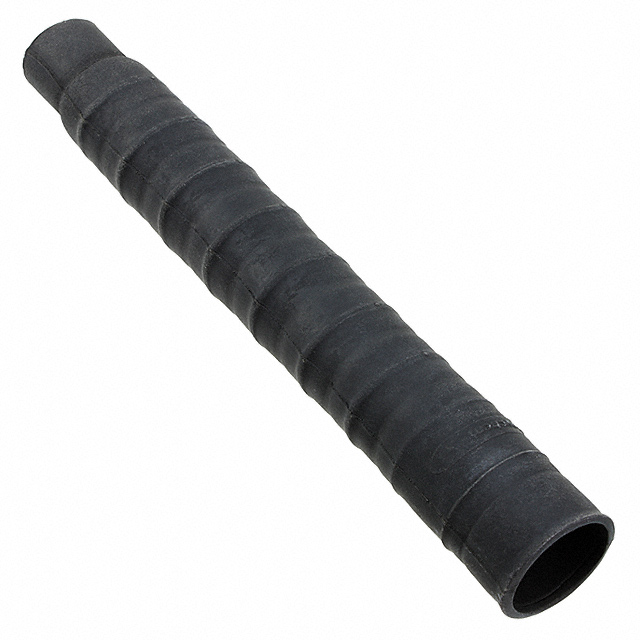

HEATSHRINK BOOT SZ11 BLACK

Part	Small Recovered Length	Small Recovered Length	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Type	Total Length Recovered	Total Length Recovered	Material	Shell Size - Insert	Large Diameter Recovered	Large Diameter Recovered	Color	Small Diameter Recovered	Small Diameter Recovered [diameter]	Small Diameter Supplied	Small Diameter Supplied	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]
TE Connectivity AMP Connectors 202C611-71-0	17.53 mm	0.69 in	14.2 mm	0.559 in	Boot	4.752 in	120.7 mm	Polyolefin (PO) Flexible	11	0.272 in	6.91 mm	Black	4.83 mm	0.19 in
TE Connectivity AMP Connectors 202C611-770-0	17.53 mm	0.69 in			Boot	4.75 in	120.65 mm	NBCCS Flexible	11			Black	4.83 mm	0.19 in	0.44 in	11.18 mm	6.86 mm	0.27 in
TE Connectivity AMP Connectors 202C611-71-0-CS5688	17.53 mm	0.69 in	14.22 mm	0.56 "	Boot	4.75 in	120.65 mm	Polyolefin (PO) Flexible	11			Black	4.83 mm	0.19 in			6.86 mm	0.27 in
TE Connectivity AMP Connectors 202C611-50-0-CS8187	17.53 mm	0.69 in			Boot	4.75 in	120.65 mm	VPB Flexible	11			Black	4.83 mm	0.19 in	0.44 in	11.18 mm	6.86 mm	0.27 in
TE Connectivity AMP Connectors 202C611-50-0-CS5256	17.53 mm	0.69 in			Boot	4.75 in	120.65 mm	VPB Flexible	11			Black	4.83 mm	0.19 in	0.44 in	11.18 mm	6.86 mm	0.27 in
TE Connectivity AMP Connectors 202C611-71/86-0	17.53 mm	0.69 in	14.2 mm	0.559 in	Boot	4.752 in	120.7 mm	Polyolefin (PO) Flexible	11	0.272 in	6.91 mm	Black	4.83 mm	0.19 in
TE Connectivity AMP Connectors 202C611-50-0	17.53 mm	0.69 in	11.2 mm	0.441 in	Boot	4.752 in	120.7 mm	VPB Flexible	11	0.272 in	6.91 mm	Black	4.83 mm	0.19 in					0.559 in	14.2 mm
TE Connectivity AMP Connectors 202C611-71/180-0	17.53 mm	0.69 in	14.22 mm	0.56 "	Boot	4.75 in	120.65 mm	Polyolefin (PO) Flexible	11			Black	4.83 mm	0.19 in			6.86 mm	0.27 in
TE Connectivity AMP Connectors 202C611-51/164-0-CS7134	17.53 mm	0.69 in			Boot	4.75 in	120.65 mm	EPB Flexible	11			Black	4.83 mm	0.19 in	0.44 in	11.18 mm	6.86 mm	0.27 in
TE Connectivity AMP Connectors 202C611-50-0-CS5325	17.53 mm	0.69 in			Boot	4.75 in	120.65 mm	VPB Flexible	11			Black	4.83 mm	0.19 in	0.44 in	11.18 mm	6.86 mm	0.27 in
