RT7299 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K
IC REG BUCK ADJUSTABLE 8A 14WQFN
| Part | Topology | Frequency - Switching [Min] | Frequency - Switching [Max] | Output Configuration | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Function | Current - Output | Voltage - Output (Max) [Max] | Voltage - Input (Min) [Min] | Synchronous Rectifier | Voltage - Output (Min/Fixed) | Output Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Mounting Type | Voltage - Input (Max) [Max] | Board Type | Outputs and Type | Outputs and Type | Supplied Contents | Regulator Topology | Contents | Utilized IC / Part | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | Buck | 200 kHz | 1.6 MHz | Positive | 14-WQFN-AL | 3.5 | 3.5 | Step-Down | 8 A | 18 V | 4.5 V | 0.6 V | Adjustable | 14-WFQFN Exposed Pad | 85 C | -40 ¯C | 1 | Surface Mount | 18 V | ||||||||||||

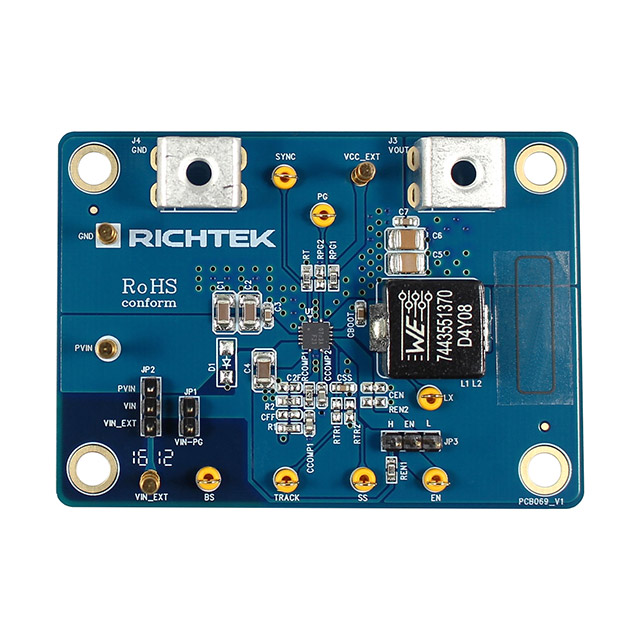

 Richtek USA Inc. | 8 A | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | Buck | Board(s) | RT7299B | 3.3 V | 18 V | 4.5 V | DC/DC Step Down |
