BDCL Series

Power Inductors - SMD Chilisin Power - Inductor (IND) Closed Magnetic Circuit TypeMolding Processing & for Ultra High Current

Catalog

Power Inductors - SMD Chilisin Power - Inductor (IND) Closed Magnetic Circuit TypeMolding Processing & for Ultra High Current

Part	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]	Supplier Device Package	Type	Current - Saturation (Isat)	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current Rating (Amps)	Tolerance	Shielding	Mounting Type	Inductance	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR)

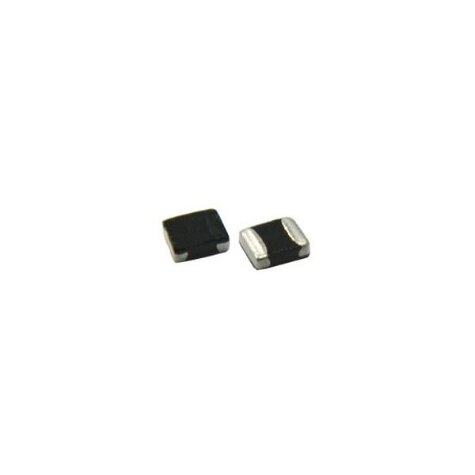

Pulse Electronics BDCL00252010R33ML1	125 °C	-40 C	31 mOhm	1008	Molded	5 A	2520 Metric	1008	2.5 mm	0.079 in	0.098 in	2 mm	0.039 in	1 mm	3.8 A	20 %	Shielded	Surface Mount	330 nH	2 MHz
Pulse Electronics BDCL00201610R56MS1	125 °C	-40 C	59 mOhm	0806	Molded	2.8 A		0806 (2016 Metric)	2 mm	0.063 "	0.079 in	1.6 mm	0.039 in	1 mm	2.8 A	20 %	Shielded	Surface Mount	560 nH	2 MHz
Pulse Electronics BDCL00201612R47MS1	125 °C	-40 C		0806	Molded	3.8 A		0806 (2016 Metric)	2 mm	0.063 "	0.079 in	1.6 mm			3.2 A	20 %	Shielded	Surface Mount	470 nH	2 MHz	1.2 mm	0.047 "
Pulse Electronics BDCL00201610R68MS1	125 °C	-40 C		0806	Molded	2.7 A		0806 (2016 Metric)	2 mm	0.063 "	0.079 in	1.6 mm	0.039 in	1 mm	2.4 A	20 %	Shielded	Surface Mount	0.68 µH	2 MHz			72 mOhm
Pulse Electronics BDCL002520122R2ML1	125 °C	-40 C		1008	Molded	2.5 A	2520 Metric	1008	2.5 mm	0.079 in	0.098 in	2 mm			2.2 A	20 %	Shielded	Surface Mount	2.2 µH	2 MHz	1.2 mm	0.047 "	102 mOhm
Pulse Electronics BDCL002016122R2MS1	125 °C	-40 C	195 mOhm	0806	Molded	2 A		0806 (2016 Metric)	2 mm	0.063 "	0.079 in	1.6 mm			1.3 A	20 %	Shielded	Surface Mount	2.2 µH	2 MHz	1.2 mm	0.047 "

Power Inductors - SMD Chilisin Power - Inductor (IND) Closed Magnetic Circuit TypeMolding Processing & for Ultra High Current
