PAS69278 Series

Catalog

ANT LTE IN/OUT BROADBAND NFEM

Part	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	Number of Bands	Gain	Frequency (Center/Band)	Power - Max [Max]	Height (Max) [Max] [z]	Height (Max) [z]	Antenna Type	Ingress Protection	Termination	VSWR	Applications	RF Family/Standard	Frequency Group	Height (Max)
TE Connectivity AMP Connectors PAS69278-FNF
TE Connectivity AMP Connectors PAS69278-FNF2

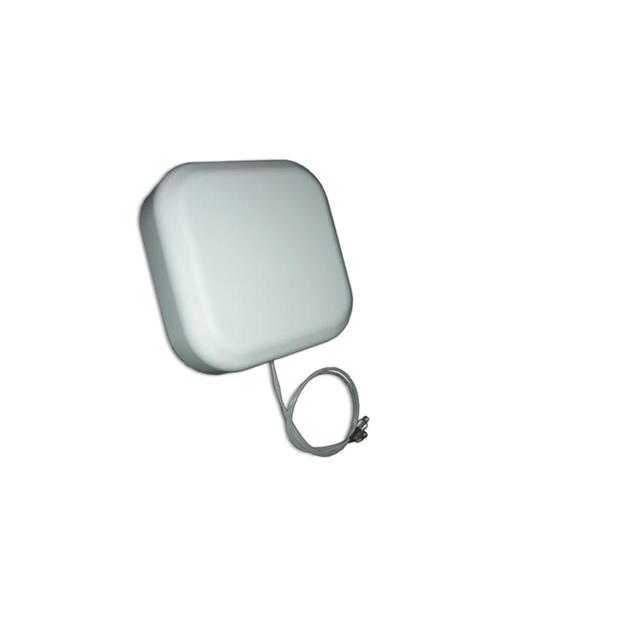

TE Connectivity AMP Connectors PAS69278P-FNF	Bracket Mount	2.7 GHz 960 MHz	1.71 GHz 698 MHz	8	7.5 dBi 8.4 dBi 8.5 dBi 8.7 dBi 9 dBi 9.5 dBi 9.7 dBi 9.8 dB	1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	50 W	3.2 in	81.28 mm	Panel	IP55	N Type Female	2	GSM LTE WiMax™	Cellular WiFi	Wide Band
TE Connectivity AMP Connectors PAS69278P-30D43F	Bracket Mount	2.7 GHz 960 MHz	1.71 GHz 698 MHz	2	10 dBi	829 MHz 2200 GHz	50 W	3.228 in		Panel			1.8 2	LTE Wi-Fi	Cellular WiFi	Wide Band	82 mm
TE Connectivity AMP Connectors PAS69278P-30D43F	Bracket Mount	2.7 GHz 960 MHz	1.71 GHz 698 MHz	2	10 dBi	829 MHz 2200 GHz	50 W	3.228 in		Panel			1.8 2	LTE Wi-Fi	Cellular WiFi	Wide Band	82 mm
TE Connectivity AMP Connectors PAS69278-FNF2

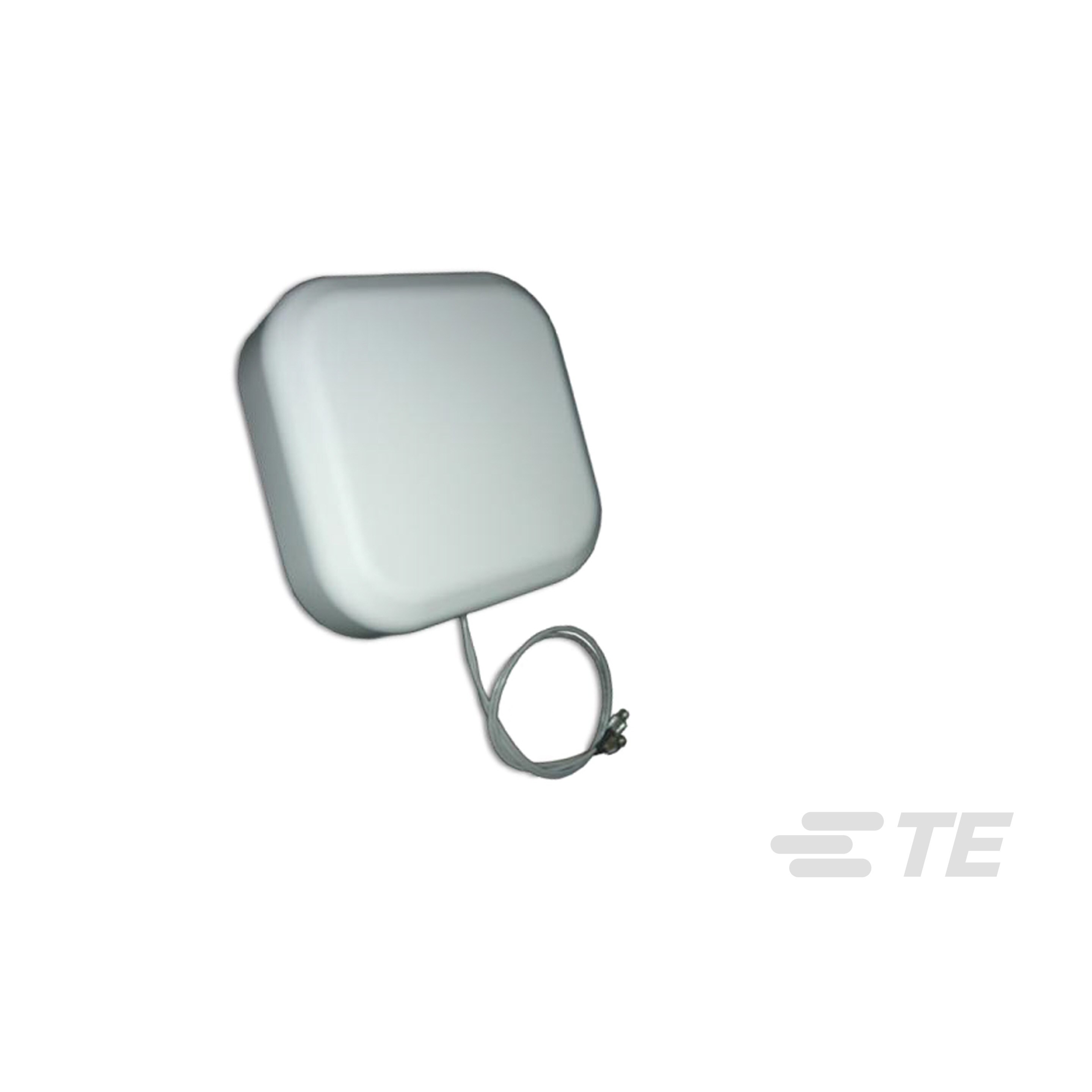

TE Connectivity AMP Connectors PAS69278P-91NF
TE Connectivity AMP Connectors PAS69278P-91NF
TE Connectivity AMP Connectors PAS69278-FNF
