PRPC032 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 64POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Type	Contact Material	Material Flammability Rating	Shrouding	Current Rating (Amps)	Style	Connector Type	Insulation Material	Contact Finish - Post	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Mounting Type	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Rows [custom]	Insulation Color	Contact Shape	Pitch - Mating	Pitch - Mating	Termination	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Fastening Type	Number of Positions	Insulation Height	Insulation Height	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length
Sullins Connector Solutions PRPC032DAAN-RC	Flash	Male Pin	Brass	UL94 V-0	Unshrouded	3 A	Board to Board Cable	Header Breakaway	Polybutylene Terephthalate (PBT)	Gold	All	-40 C	105 ░C	0.1 in	2.54 mm	0.448 in	11.39 mm	Through Hole	Flash	Gold	2	Black	Square	0.1 "	2.54 mm	Solder	0.23 in	5.84 mm	3.05 mm	0.12 in	Push-Pull	64	0.098 "	2.5 mm
Sullins Connector Solutions PRPC032SFAN-RC	Flash	Male Pin	Brass	UL94 V-0	Unshrouded	3 A	Board to Board Cable	Header Breakaway	Polybutylene Terephthalate (PBT)	Gold	All	-40 C	105 ░C					Through Hole	Flash	Gold		Black	Square	0.1 "	2.54 mm	Solder	0.318 in	8.08 mm	3.05 mm	0.12 in	Push-Pull		0.098 "	2.5 mm	1	13.63 mm	0.537 in

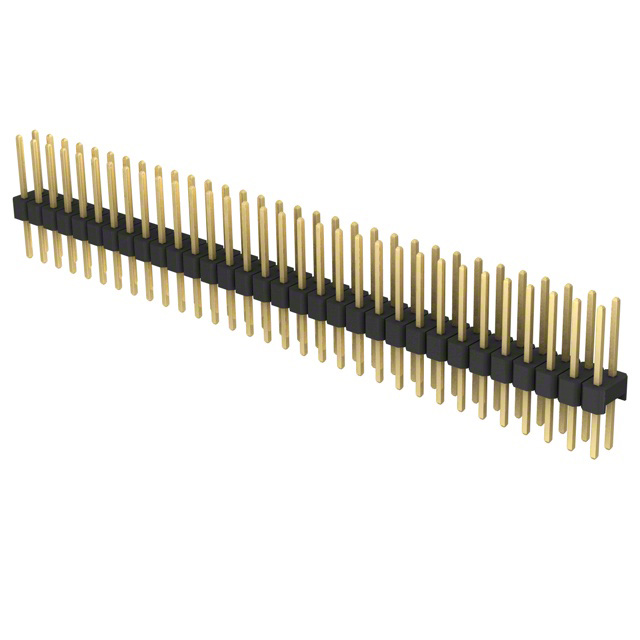

Sullins Connector Solutions PRPC032DFAN-RC	Flash	Male Pin	Brass	UL94 V-0	Unshrouded	3 A	Board to Board Cable	Header Breakaway	Polybutylene Terephthalate (PBT)	Gold	All	-40 C	105 ░C	0.1 in	2.54 mm			Through Hole	Flash	Gold	2	Black	Square	0.1 "	2.54 mm	Solder	0.318 in	8.08 mm	3.05 mm	0.12 in	Push-Pull	64	0.098 "	2.5 mm		13.63 mm	0.537 in

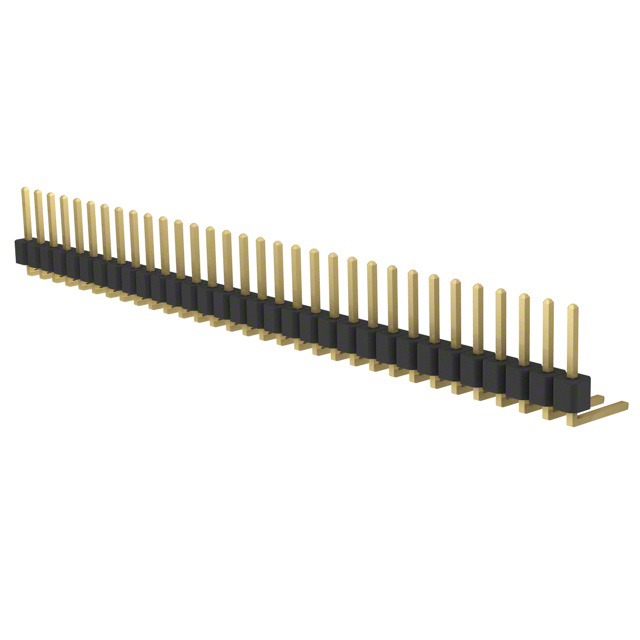

Sullins Connector Solutions PRPC032SGAN-M71RC	Flash	Male Pin	Brass	UL94 V-0	Unshrouded	3 A	Board to Board Cable	Header Breakaway	Polybutylene Terephthalate (PBT)	Gold	All	-40 C	105 ░C					Right Angle Through Hole	Flash	Gold		Black	Square	0.1 "	2.54 mm	Solder	0.318 in	8.08 mm	3.05 mm	0.12 in	Push-Pull		0.098 "	2.5 mm	1

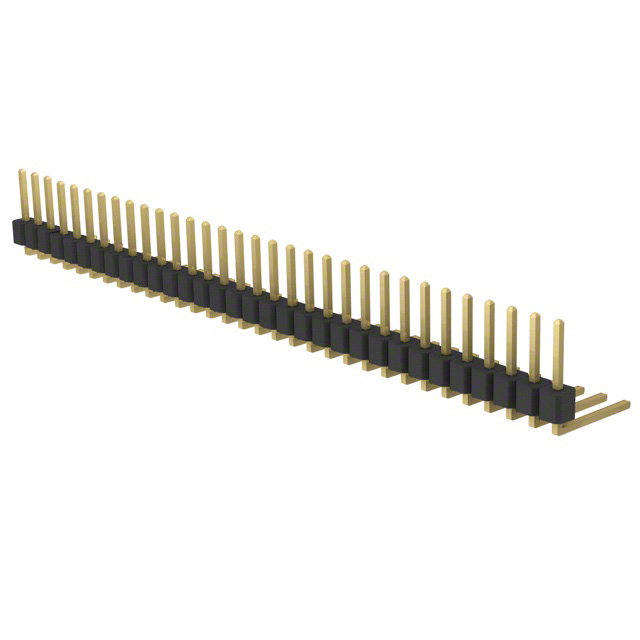

Sullins Connector Solutions PRPC032SBCN-M71RC	Flash	Male Pin	Brass	UL94 V-0	Unshrouded	3 A	Board to Board Cable	Header Breakaway	Polybutylene Terephthalate (PBT)	Gold	All	-40 C	105 ░C					Right Angle Through Hole	Flash	Gold		Black	Square	0.1 "	2.54 mm	Solder	0.23 in	5.84 mm	8.13 mm	0.32 in	Push-Pull		0.098 "	2.5 mm	1
Sullins Connector Solutions PRPC032SBBN-M71RC	Flash	Male Pin	Brass	UL94 V-0	Unshrouded	3 A	Board to Board Cable	Header Breakaway	Polybutylene Terephthalate (PBT)	Gold	All	-40 C	105 ░C					Right Angle Through Hole	Flash	Gold		Black	Square	0.1 "	2.54 mm	Solder	0.23 in	5.84 mm	5.58 mm	0.22 in	Push-Pull		0.098 "	2.5 mm	1
Sullins Connector Solutions PRPC032DFBN-RC	Flash	Male Pin	Brass	UL94 V-0	Unshrouded	3 A	Board to Board Cable	Header Breakaway	Polybutylene Terephthalate (PBT)	Gold	All	-40 C	105 ░C	0.1 in	2.54 mm		0.637 in	Through Hole	Flash	Gold	2	Black	Square	0.1 "	2.54 mm	Solder	0.318 in	8.08 mm	5.58 mm	0.22 in	Push-Pull	64	0.098 "	2.5 mm				16.17 mm

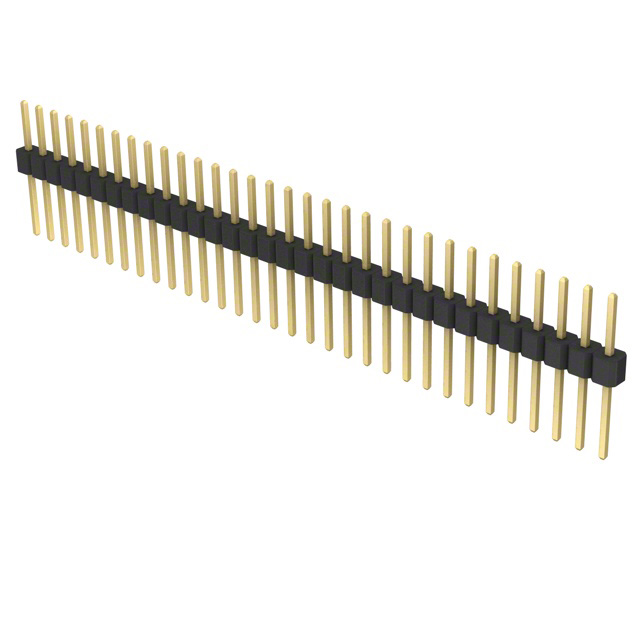

Sullins Connector Solutions PRPC032SACN-RC	Flash	Male Pin	Brass	UL94 V-0	Unshrouded	3 A	Board to Board Cable	Header Breakaway	Polybutylene Terephthalate (PBT)	Gold	All	-40 C	105 ░C					Through Hole	Flash	Gold		Black	Square	0.1 "	2.54 mm	Solder	0.23 in	5.84 mm	8.13 mm	0.32 in	Push-Pull		0.098 "	2.5 mm	1	16.47 mm	0.648 in
Sullins Connector Solutions PRPC032DABN-RC	Flash	Male Pin	Brass	UL94 V-0	Unshrouded	3 A	Board to Board Cable	Header Breakaway	Polybutylene Terephthalate (PBT)	Gold	All	-40 C	105 ░C	0.1 in	2.54 mm	0.558 in	14.18 mm	Through Hole	Flash	Gold	2	Black	Square	0.1 "	2.54 mm	Solder	0.23 in	5.84 mm	5.84 mm	0.23 "	Push-Pull	64	0.098 "	2.5 mm
