TOP250 Series

Catalog

IC OFFLINE SW FLYBACK TO262-7C

Part	Operating Temperature [Min]	Operating Temperature [Max]	Fault Protection	Duty Cycle	Supplier Device Package	Control Features	Voltage - Breakdown	Package / Case	Power (Watts)	Topology	Mounting Type	Output Isolation	Frequency - Switching [Min]	Frequency - Switching [Max]

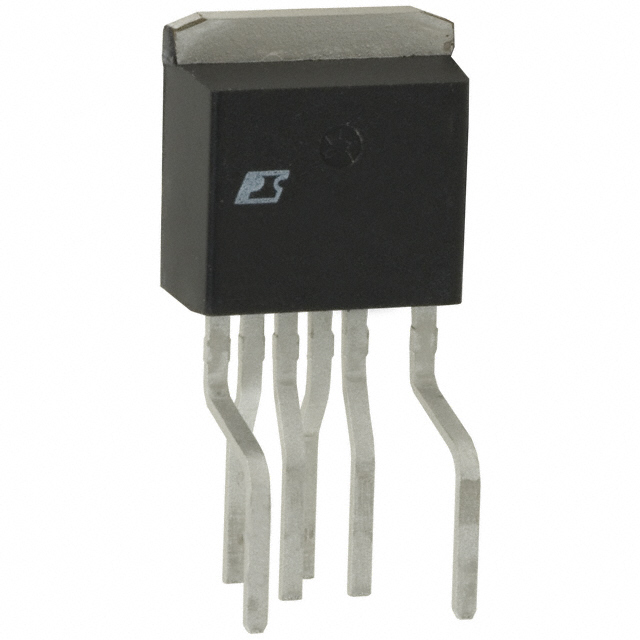

POWER INTEGRATIONS TOP250FN	-40 °C	150 °C	Current Limiting Over Temperature Over Voltage	66.8 %	TO-262-7C	Frequency Control	700 V	TO-262-7 (6 Leads) Formed Leads	290 W	Flyback	Through Hole	Isolated	66 kHz	132 kHz

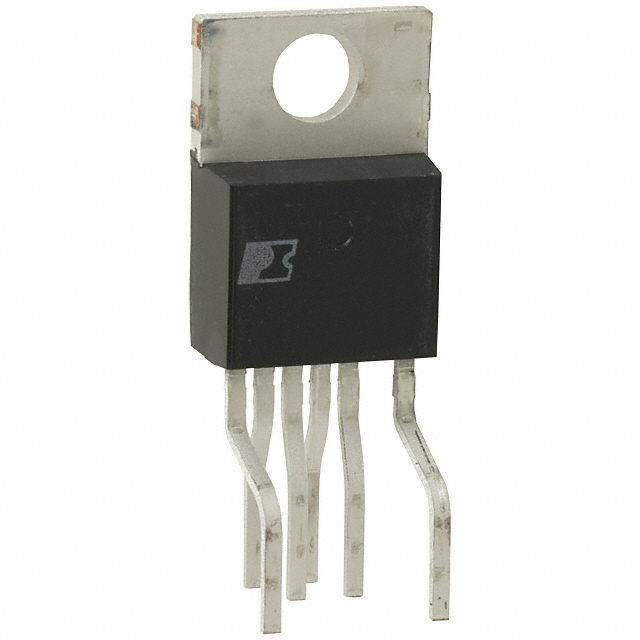

POWER INTEGRATIONS TOP250YN	-40 °C	150 °C	Current Limiting Over Temperature Over Voltage	66.8 %	TO-220-7C	Frequency Control	700 V	TO-220-7 Formed Leads 6 Leads	290 W	Flyback	Through Hole	Isolated	66 kHz	132 kHz
POWER INTEGRATIONS TOP250F	-40 °C	150 °C	Current Limiting Over Temperature Over Voltage	66.8 %	TO-262-7C	Frequency Control	700 V	TO-262-7 (6 Leads) Formed Leads	290 W	Flyback	Through Hole	Isolated	66 kHz	132 kHz
POWER INTEGRATIONS TOP250R-TL	-40 °C	150 °C	Current Limiting Over Temperature Over Voltage	66.8 %	TO-263-7C	Frequency Control	700 V	D2PAK (6 Leads + Tab) TO-263-7 TO-263CB	82 W	Flyback	Surface Mount	Isolated	66 kHz	132 kHz
POWER INTEGRATIONS TOP250Y	-40 °C	150 °C	Current Limiting Over Temperature Over Voltage	66.8 %	TO-220-7C	Frequency Control	700 V	TO-220-7 Formed Leads 6 Leads	290 W	Flyback	Through Hole	Isolated	66 kHz	132 kHz
