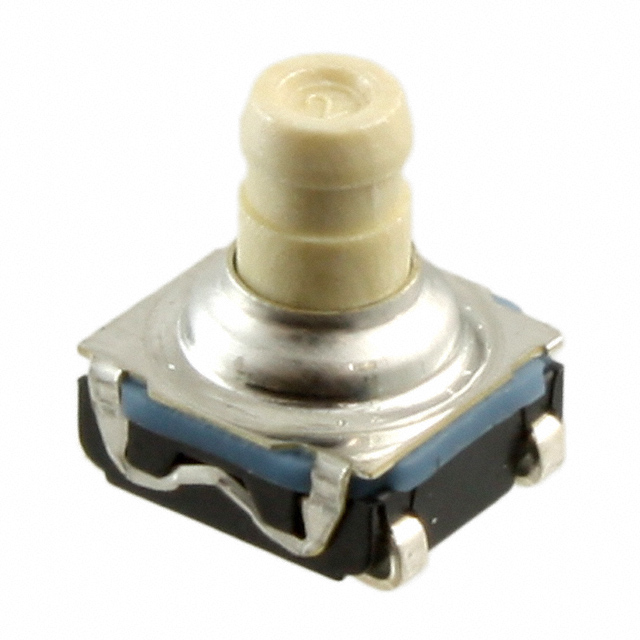

KSC921 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 32V
| Part | Circuit | Actuator Orientation | Ingress Protection | Mounting Type | Termination Style | Mechanical Life | Switch Travel | Switch Function | Actuator Height off PCB, Vertical | Actuator Type | Illumination | Outline [y] | Outline [x] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Force | Contact Rating @ Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | SPST-NO | Top Actuated | IP67 - Dust Tight Waterproof | Surface Mount | Gull Wing | 300000 Cycles | 0.4 mm | Off-Mom | 7.7 mm | Plunger for Cap | Non-Illuminated | 6.2 mm | 6.2 mm | 85 °C | -40 °C | 170 gf | 0.05 A |
 Littelfuse/Commercial Vehicle Products | SPST-NO | Top Actuated | IP67 - Dust Tight Waterproof | Surface Mount | J Lead | 300000 Cycles | 0.4 mm | Off-Mom | 7.7 mm | Plunger for Cap | Non-Illuminated | 6.2 mm | 6.2 mm | 85 °C | -40 °C | 170 gf | 0.05 A |
