QBSS560 Series
Manufacturer: QT Brightek (QTB)
Beta
⌘K

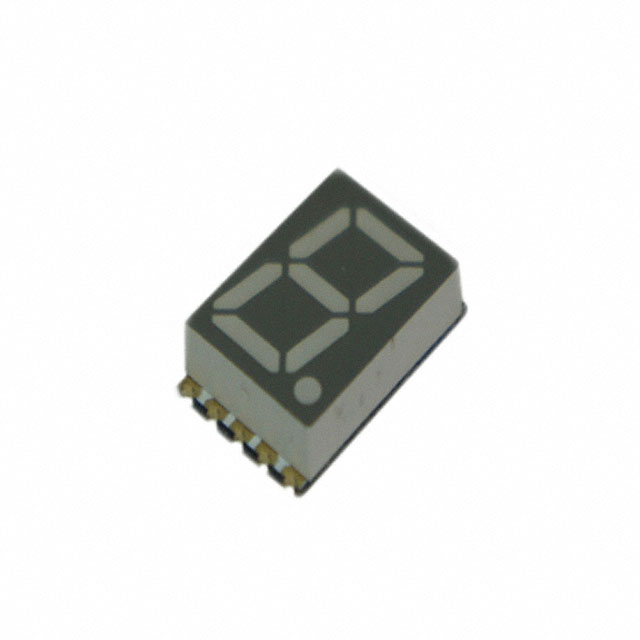

DISPLAY 7SEG 0.56" SGL RED 10SMD
| Part | Color | Display Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Number of Characters | Common Pin | Millicandela Rating | Digit/Alpha Size | Digit/Alpha Size | Current - Test | Package / Case | Power Dissipation (Max) [Max] | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 QT Brightek (QTB) | Red | 7-Segment | 19 mm | 3.85 mm | 0.492 " | 0.748 in | 0.152 in | 12.5 mm | 1 | Common Anode | 25 mcd | 0.56 in | 14.22 mm | 20 mA | 10-SMD No Lead | 70 mW | 2 V |
