SA05-11 Series

Catalog

DISPLAY 7SEG 0.5" SGL GRN 10DIP

Part	Voltage - Forward (Vf) (Typ)	Color	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Millicandela Rating	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Number of Characters	Power Dissipation (Max) [Max]	Current - Test	Display Type	Package / Case	Package / Case	Wavelength - Peak
Kingbright SA05-11CGKWA	2.1 V	Green	Common Anode	12.7 mm	0.5 in	34 mcd	8 mm	0.5 "	12.7 mm	0.748 in	0.315 in	19 mm	1	75 mw	20 mA	7-Segment	0.6 in 15.24 mm	10-DIP
Kingbright SA05-11SYKWA	2 V	Yellow	Common Anode	12.7 mm	0.5 in	120 mcd	8 mm	0.5 "	12.7 mm	0.748 in	0.315 in	19 mm	1	75 mw	20 mA	7-Segment	0.6 in 15.24 mm	10-DIP	590 nm
Kingbright SA05-11GWA	2.2 V	Green	Common Anode	12.7 mm	0.5 in	10 mcd	8 mm	0.5 "	12.7 mm	0.748 in	0.315 in	19 mm	1	62.5 mW	20 mA	7-Segment	0.6 in 15.24 mm	10-DIP	565 nm

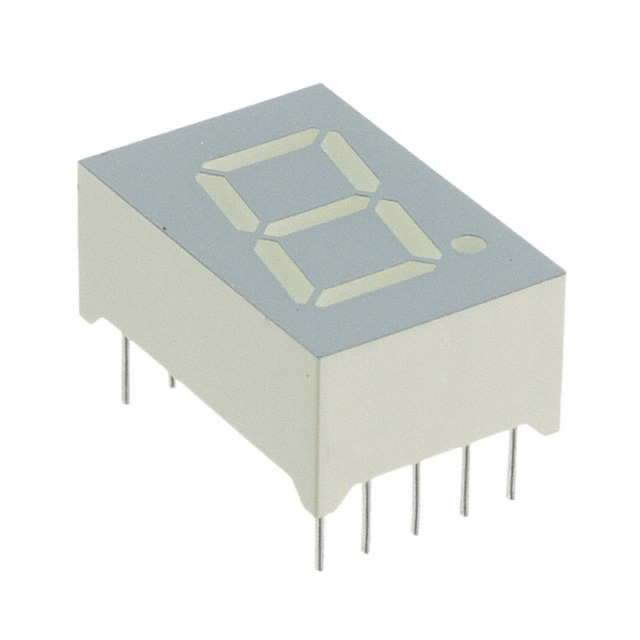

Kingbright SA05-11SRWA	1.85 V	Red	Common Anode	12.7 mm	0.5 in	34 mcd	8 mm	0.5 "	12.7 mm	0.748 in	0.315 in	19 mm	1	75 mw	20 mA	7-Segment	0.6 in 15.24 mm	10-DIP	660 nm
Kingbright SA05-11EWA	2 V	Red	Common Anode	12.7 mm	0.5 in		8 mm	0.5 "	12.7 mm	0.748 in	0.315 in	19 mm	1	75 mw	20 mA	7-Segment	0.6 in 15.24 mm	10-DIP	627 nm

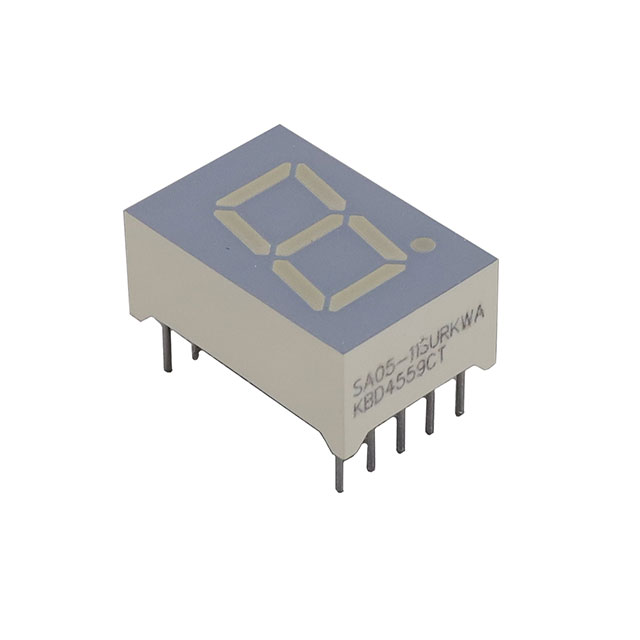

Kingbright SA05-11SURKWA	1.95 V	Red	Common Anode	12.7 mm	0.5 in	69 mcd	8 mm	0.5 "	12.7 mm	0.748 in	0.315 in	19 mm	1	75 mw	20 mA	7-Segment	0.6 in 15.24 mm	10-DIP	645 nm
