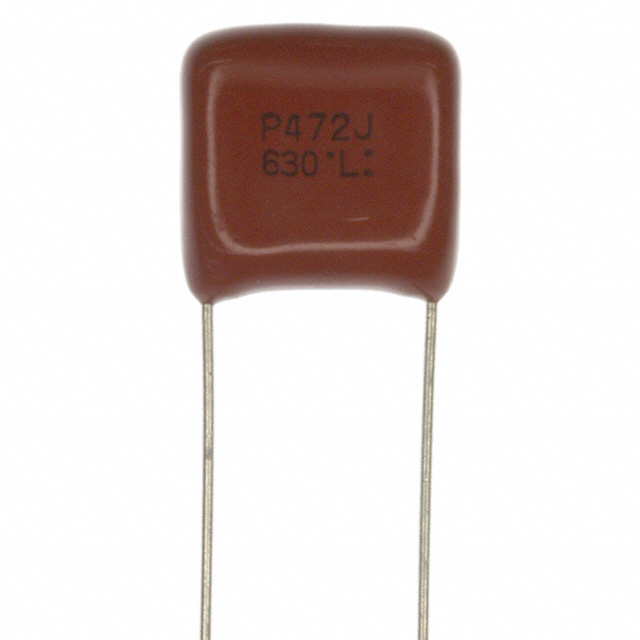

ECQ-P6472 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
CAP FILM 4700PF 5% 630VDC RADIAL
| Part | Termination | Capacitance | Tolerance | Height - Seated (Max) | Height - Seated (Max) [Max] | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Lead Spacing | Lead Spacing | Mounting Type | Dielectric Material | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | PC Pins | 0.0047 µF | 5 % | 13.5 mm | 0.532 " | DV/DT High Frequency High Pulse Switching | -40 C | 105 ░C | 14.5 mm | 0.571 in | 6.5 mm | 0.256 " | 0.394 in | 10 mm | Through Hole | Polypropylene (PP) | Radial |
