BGM220 Series

Catalog

RF TXRX MOD BLUETOOTH CHIP SMD

Part	Data Rate	RF Family/Standard	Power - Output	Serial Interfaces	Protocol	Package / Case	Current - Transmitting [Min]	Current - Transmitting [Max]	Frequency [Max]	Frequency [Min]	Mounting Type	Current - Receiving [Min]	Current - Receiving [Max]	Modulation	Sensitivity	Utilized IC / Part	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplied Contents	For Use With/Related Products	Contents	Frequency
SILICON LABS BGM220SC22WGA2R	2 MBd	Bluetooth	6 dBm	ADC I2C I2S IrDA PWM SPI UART USART	Bluetooth v5.2	44-SMD Module	4.6 mA	8.8 mA	2.4835 GHz	2.4 GHz	Surface Mount	4.2 mA	4.8 mA	GFSK	-106.4 dBm	EFR32BG22	32 kB 352 kB	85 C	-40 ¯C	Chip Integrated	1.8 V	3.8 V

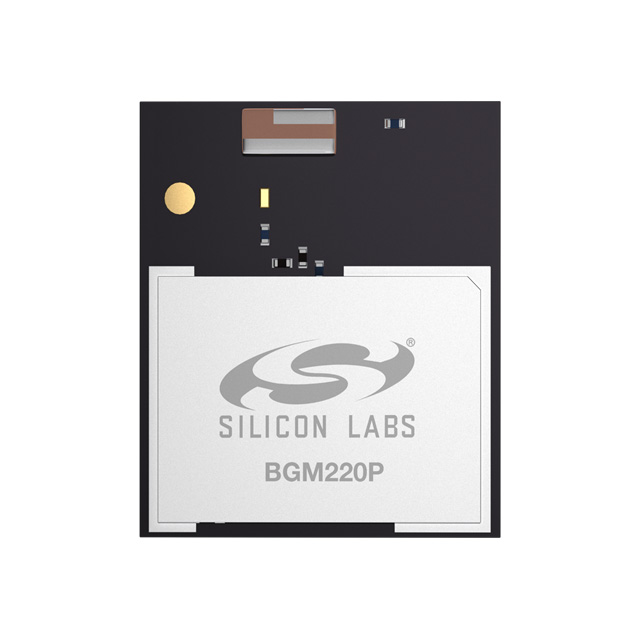

SILICON LABS BGM220PC22HNA2	2 MBd	Bluetooth	8 dBm	ADC I2C I2S IrDA PWM SPI UART USART	Bluetooth v5.2	31-SMD Module	4.8 mA	10.8 mA	2.4835 GHz	2.4 GHz	Surface Mount	4.3 mA	4.8 mA	GFSK	-98.9 dBm	EFR32BG22	32 kB 512 kB	105 °C	-40 °C	Chip Integrated	1.8 V	3.8 V

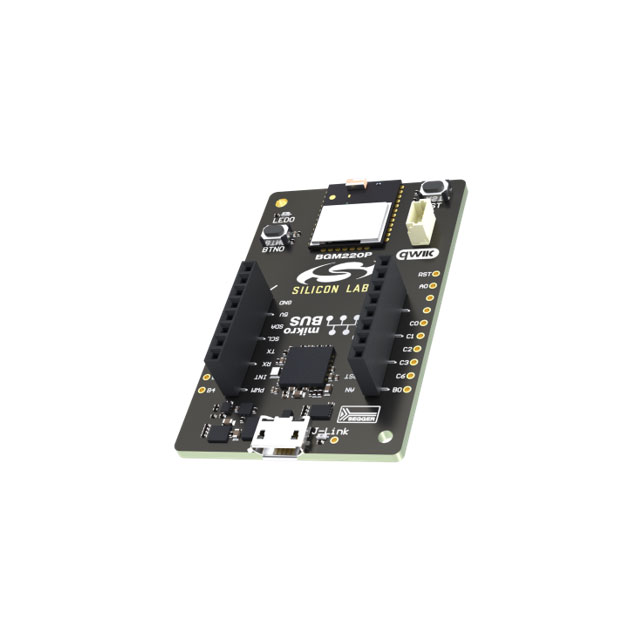

SILICON LABS BGM220-EK4314A																BGM220P EFR32BG22							Board(s)	BGM220P EFR32BG22	Board(s)	2.4 GHz
SILICON LABS BGM220PC22WGA2R	2 MBd	Bluetooth	8 dBm	ADC I2C I2S IrDA PWM SPI UART USART	Bluetooth v5.2	31-SMD Module	4.8 mA	10.8 mA	2.4835 GHz	2.4 GHz	Surface Mount	4.3 mA	4.8 mA	GFSK	-98.9 dBm	EFR32BG22	32 kB 352 kB	85 C	-40 ¯C	Chip Integrated	1.8 V	3.8 V
SILICON LABS BGM220SC12WGA2R	2 MBd	Bluetooth	0 dBm	ADC I2C I2S IrDA PWM SPI UART USART	Bluetooth v5.2	31-SMD Module	4.8 mA	10.8 mA	2.4835 GHz	2.4 GHz	Surface Mount	4.3 mA	4.8 mA	GFSK	-98.6 dBm	EFR32BG22	32 kB 352 kB	85 C	-40 ¯C	Chip Integrated	1.8 V	3.8 V
SILICON LABS BGM220PC22HNA2R	2 MBd	Bluetooth	8 dBm	ADC I2C I2S IrDA PWM SPI UART USART	Bluetooth v5.2	31-SMD Module	4.8 mA	10.8 mA	2.4835 GHz	2.4 GHz	Surface Mount	4.3 mA	4.8 mA	GFSK	-98.9 dBm	EFR32BG22	32 kB 512 kB	105 °C	-40 °C	Chip Integrated	1.8 V	3.8 V
SILICON LABS BGM220SC22HNA2	2 MBd	Bluetooth	6 dBm	ADC I2C I2S IrDA PWM SPI UART USART	Bluetooth v5.2	44-SMD Module	4.6 mA	8.8 mA	2.4835 GHz	2.4 GHz	Surface Mount	4.2 mA	4.8 mA	GFSK	-106.4 dBm	EFR32BG22	32 kB 512 kB	105 °C	-40 °C	Chip Integrated	1.8 V	3.8 V
SILICON LABS BGM220SC22HNA2R	2 MBd	Bluetooth	6 dBm	ADC I2C I2S IrDA PWM SPI UART USART	Bluetooth v5.2	44-SMD Module	4.6 mA	8.8 mA	2.4835 GHz	2.4 GHz	Surface Mount	4.2 mA	4.8 mA	GFSK	-106.4 dBm	EFR32BG22	32 kB 512 kB	105 °C	-40 °C	Chip Integrated	1.8 V	3.8 V

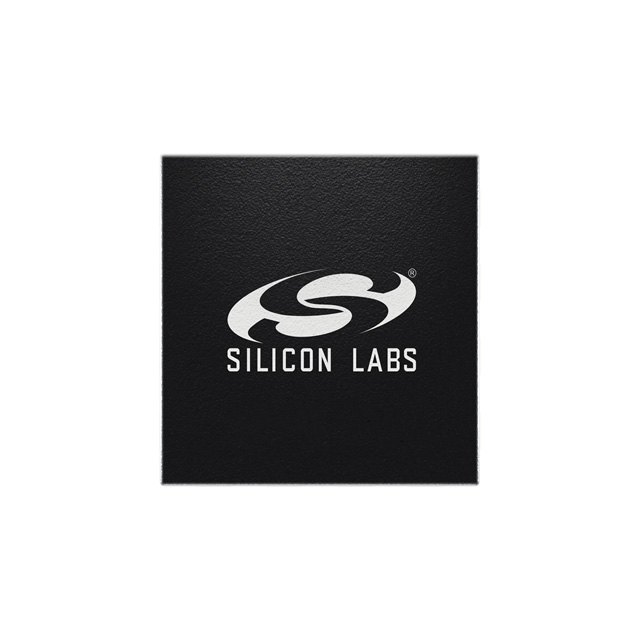

SILICON LABS BGM220SC12WGA2	2 MBd	Bluetooth	0 dBm	ADC I2C I2S IrDA PWM SPI UART USART	Bluetooth v5.2	31-SMD Module	4.8 mA	10.8 mA	2.4835 GHz	2.4 GHz	Surface Mount	4.3 mA	4.8 mA	GFSK	-98.6 dBm	EFR32BG22	32 kB 352 kB	85 C	-40 ¯C	Chip Integrated	1.8 V	3.8 V
SILICON LABS BGM220PC22WGA2	2 MBd	Bluetooth	8 dBm	ADC I2C I2S IrDA PWM SPI UART USART	Bluetooth v5.2	31-SMD Module	4.8 mA	10.8 mA	2.4835 GHz	2.4 GHz	Surface Mount	4.3 mA	4.8 mA	GFSK	-98.9 dBm	EFR32BG22	32 kB 352 kB	85 C	-40 ¯C	Chip Integrated	1.8 V	3.8 V
