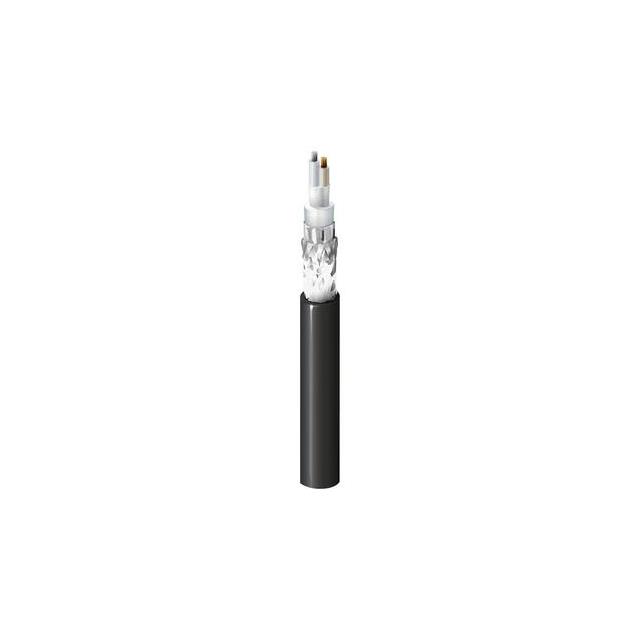

9815 Series
Manufacturer: Belden Inc.
Beta
⌘K
TW PR #20 PE PE BRD PE
| Part | VoP, Velocity of Propagation | Shield Coverage | Conductor Material | Shield Material | Operating Temperature [Min] | Operating Temperature [Max] | Impedance | Conductor Strand | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Jacket Color | Shield Type | Cable Type | Wire Gauge | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 66 | 95 % 100 % | Copper Bare Copper Tinned | Aluminum Copper Tinned | -55 C | 80 °C | 100 Ohms | 7 Strands 28 AWG | 0.33 in | 8.38 mm | 152.4 m | 500 ft | Black | Braid Foil | Twinaxial | 20 AWG | High Density Polyethylene (HDPE) |
Belden Inc. | 66 | 95 % 100 % | Copper Bare Copper Tinned | Aluminum Copper Tinned | -55 C | 80 °C | 100 Ohms | 7 Strands 28 AWG | 0.33 in | 8.38 mm | 304.8 m | 1000 ft | Black | Braid Foil | Twinaxial | 20 AWG | High Density Polyethylene (HDPE) |
