ECX-1247B2 Series
Manufacturer: ECS Inc.
Beta
⌘K

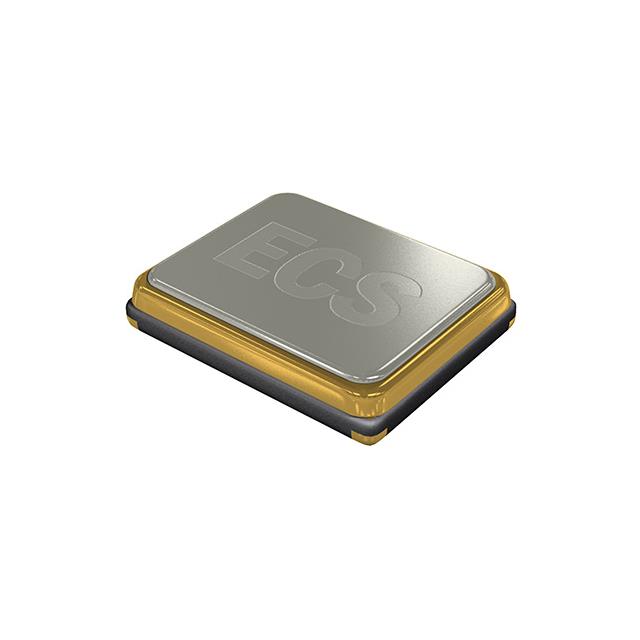

CRYSTALS CRYSTAL 25 MHZ 8PF SMD
| Part | Operating Mode | Frequency | Supplier Device Package [y] | Supplier Device Package [x] | Supplier Device Package | Load Capacitance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Type | Frequency Tolerance | Mounting Type | Frequency Stability | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | ESR (Equivalent Series Resistance) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | Fundamental | 25 MHz | 1.2 | 1.6 | 4-SMD | 8 pF | 1.6 mm | 1.2 mm | 0.047 in | 0.063 " | MHz Crystal | 10 ppm | Surface Mount | 20 ppm | 0.35 mm | 0.014 " | 85 °C | -40 C | 4-SMD No Lead | 100 Ohms |
