1700 Series

Catalog

CBL RIBN 34COND TWIST PAIR 100'

...

Part	Conductor Material	Insulation Resistance	Ratings	Ribbon Width [custom]	Ribbon Width [custom]	Pitch	Pitch	Length	Length	Ribbon Thickness	Ribbon Thickness	Number of Conductors	Jacket (Insulation) Material	Length [x]	Length [x]	Wire Gauge	Features	Shielding	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Voltage	Shelf Life Start	Shelf Life	Length	Color	Width [x]	Width [x]	Width [x]	Backing, Carrier	Tape Type	Temperature Range [Max]	Temperature Range [Max]	Usage	Temperature Range [Min]	Adhesive	Length
3M Electronic Specialty 1700/34 100SF	Copper Tinned	1 GOhms	UL Style 20462	43.18 mm	1.7 in	0.05 in	1.27 mm	3.05 m 7.62 m 30.48 m	10 ft 25 ft 100 '	0.08 in	2.03 mm	34	Poly-Vinyl Chloride (PVC)	50 ft	15.24 m	28 AWG	Splice Free	Unshielded	36 AWG	7 Strands	Multiple	-20 ░C	105 ░C	Flat Twisted Pair	300 VDC
3M Electronic Specialty 1700C-GREEN-3/4X66'								20.1 m	66 ft																	Date of Manufacture	60 Months	22 yds	Green	0.75 in	0.75 in	19.05 mm	PVC (Poly Vinyl Chloride)	Electrical	80 °C	80 °C	General Purpose
3M Electronic Specialty 1700-1X66FT								20.1 m	66 ft																	Date of Manufacture	60 Months	22 yds	Black	1 in		25.4 mm	PVC (Poly Vinyl Chloride)	Electrical		80 °C	General Purpose	0 °C	Rubber
3M Electronic Specialty 1700/20 100SF	Copper Tinned	1 GOhms	UL Style 20462	25.4 mm	1 in	0.05 in	1.27 mm	3.05 m 7.62 m 30.48 m	10 ft 25 ft 100 '	0.08 in	2.03 mm	20	Poly-Vinyl Chloride (PVC)	50 ft	15.24 m	28 AWG	Splice Free	Unshielded	36 AWG	7 Strands	Multiple	-20 ░C	105 ░C	Flat Twisted Pair	300 VDC															Enter Number of Feet in Order Quantity
3M Electronic Specialty 1700/14EK	Copper Tinned	1 GOhms	UL Style 20462	17.78 mm	0.7 in	0.05 in	1.27 mm	91440 mm	3600 in	0.08 in	2.03 mm	14	Poly-Vinyl Chloride (PVC)			28 AWG		Unshielded	36 AWG	7 Strands	Multiple	-20 ░C	105 ░C	Flat Twisted Pair	300 VDC
3M Electronic Specialty 1700/20BA	Copper Tinned	1 GOhms	UL Style 20462	25.4 mm	1 in	0.05 in	1.27 mm	30.48 m	100 '	0.08 in	2.03 mm	20	Poly-Vinyl Chloride (PVC)			28 AWG		Unshielded	36 AWG	7 Strands	Multiple	-20 ░C	105 ░C	Flat Twisted Pair	300 VDC
3M Electronic Specialty 1700/60 100SF	Copper Tinned	1 GOhms	UL Style 20462	76.2 mm	3 in	0.05 in	1.27 mm	3.05 m 7.62 m 30.48 m	10 ft 25 ft 100 '	0.08 in	2.03 mm	60	Poly-Vinyl Chloride (PVC)	50 ft	15.24 m	28 AWG	Splice Free	Unshielded	36 AWG	7 Strands	Multiple	-20 ░C	105 ░C	Flat Twisted Pair	300 VDC
3M Electronic Specialty 1700/34EL 299'	Copper Tinned	1 GOhms	UL Style 20462	43.18 mm	1.7 in	0.05 in	1.27 mm			0.08 in	2.03 mm	34	Poly-Vinyl Chloride (PVC)	299 ft	91.14 m	28 AWG		Unshielded	36 AWG	7 Strands	Multiple	-20 ░C	105 ░C	Flat Twisted Pair	300 VDC
3M Electronic Specialty 1700/34EN 300'	Copper Tinned	1 GOhms	UL Style 20462	43.18 mm	1.7 in	0.05 in	1.27 mm	91440 mm	3600 in	0.08 in	2.03 mm	34	Poly-Vinyl Chloride (PVC)			28 AWG		Unshielded	36 AWG	7 Strands	Multiple	-20 ░C	105 ░C	Flat Twisted Pair	300 VDC

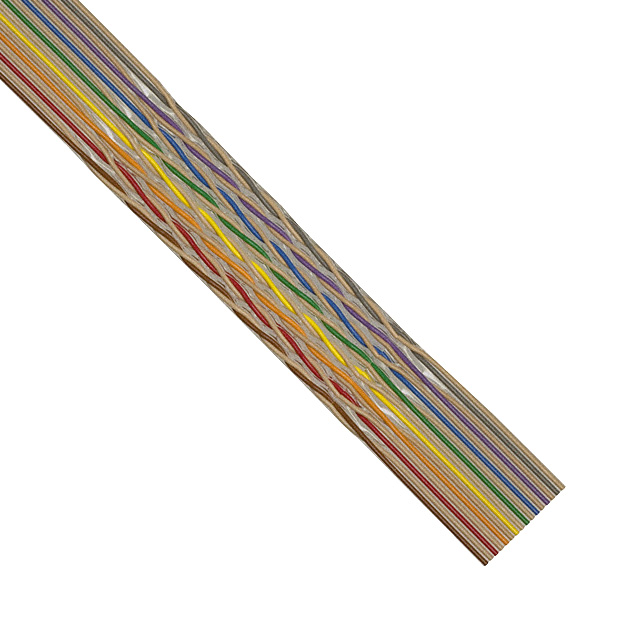

3M Electronic Specialty 1700/16BASF	Copper Tinned	1 GOhms	UL Style 20462	20.32 mm	0.8 in	0.05 in	1.27 mm	30.48 m	100 '	0.08 in	2.03 mm	16	Poly-Vinyl Chloride (PVC)			28 AWG	Splice Free	Unshielded	36 AWG	7 Strands	Multiple	-20 ░C	105 ░C	Flat Twisted Pair	300 VDC
