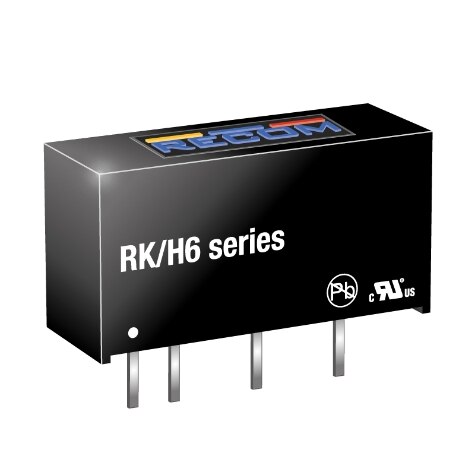

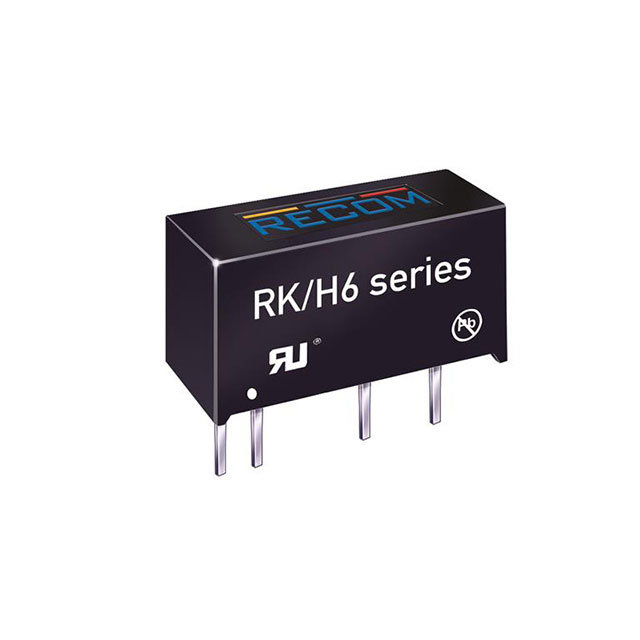

RK/H6 Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W 15VIN 3.3VOUT 303MA SIP7
| Part | Voltage - Input (Max) [Max] | Package / Case | Voltage - Input (Min) [Min] | Efficiency | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Type | Applications | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Features | Number of Outputs | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 16.5 V | 7-SIP Module 4 Leads | 13.5 V | 74 % | 303 mA | 90 °C | -40 C | Through Hole | Isolated Module | ITE (Commercial) | 6.4 kV | 0.28 in | 0.4 " | 0.77 in | 7 mm | 19.6 mm | 10.2 mm | SCP | 1 | 3.3 V |
 Recom Power | 5.5 V | 7-SIP Module 4 Leads | 4.5 V | 74 % | 303 mA | 90 °C | -40 C | Through Hole | Isolated Module | ITE (Commercial) | 6.4 kV | 0.28 in | 0.4 " | 0.77 in | 7 mm | 19.6 mm | 10.2 mm | SCP | 1 | 3.3 V |
 Recom Power | 16.5 V | 7-SIP Module 4 Leads | 13.5 V | 80 % | 66 mA | 90 °C | -40 C | Through Hole | Isolated Module | ITE (Commercial) | 6.4 kV | 0.28 in | 0.4 " | 0.77 in | 7 mm | 19.6 mm | 10.2 mm | SCP | 1 | 15 V |
Recom Power | 13.2 V | 7-SIP Module 4 Leads | 10.8 V | 79 % | 84 mA | 90 °C | -40 C | Through Hole | Isolated Module | ITE (Commercial) | 6.4 kV | 0.28 in | 0.4 " | 0.77 in | 7 mm | 19.6 mm | 10.2 mm | SCP | 1 | 12 V |
 Recom Power | 26.4 V | 7-SIP Module 4 Leads | 21.6 V | 77 % | 200 mA | 90 °C | -40 C | Through Hole | Isolated Module | ITE (Commercial) | 6.4 kV | 0.28 in | 0.4 " | 0.77 in | 7 mm | 19.6 mm | 10.2 mm | SCP | 1 | 5 V |
 Recom Power | 13.2 V | 7-SIP Module 4 Leads | 10.8 V | 74 % | 303 mA | 90 °C | -40 C | Through Hole | Isolated Module | ITE (Commercial) | 6.4 kV | 0.28 in | 0.4 " | 0.77 in | 7 mm | 19.6 mm | 10.2 mm | SCP | 1 | 3.3 V |
Recom Power | 13.2 V | 7-SIP Module 4 Leads | 10.8 V | 80 % | 84 mA | 90 °C | -40 C | Through Hole | Isolated Module | ITE (Commercial) | 6.4 kV | 0.28 in | 0.4 " | 0.77 in | 7 mm | 19.6 mm | 10.2 mm | SCP | 1 | 12 V |
 Recom Power | 26.4 V | 7-SIP Module 4 Leads | 21.6 V | 79 % | 84 mA | 90 °C | -40 C | Through Hole | Isolated Module | ITE (Commercial) | 6.4 kV | 0.28 in | 0.4 " | 0.77 in | 7 mm | 19.6 mm | 10.2 mm | SCP | 1 | 12 V |
Recom Power | 13.2 V | 7-SIP Module 4 Leads | 10.8 V | 77 % | 200 mA | 90 °C | -40 C | Through Hole | Isolated Module | ITE (Commercial) | 6.4 kV | 0.28 in | 0.4 " | 0.77 in | 7 mm | 19.6 mm | 10.2 mm | SCP | 1 | 5 V |
Recom Power | 5.5 V | 7-SIP Module 4 Leads | 4.5 V | 77 % | 200 mA | 90 °C | -40 C | Through Hole | Isolated Module | ITE (Commercial) | 6.4 kV | 0.28 in | 0.4 " | 0.77 in | 7 mm | 19.6 mm | 10.2 mm | SCP | 1 | 5 V |
