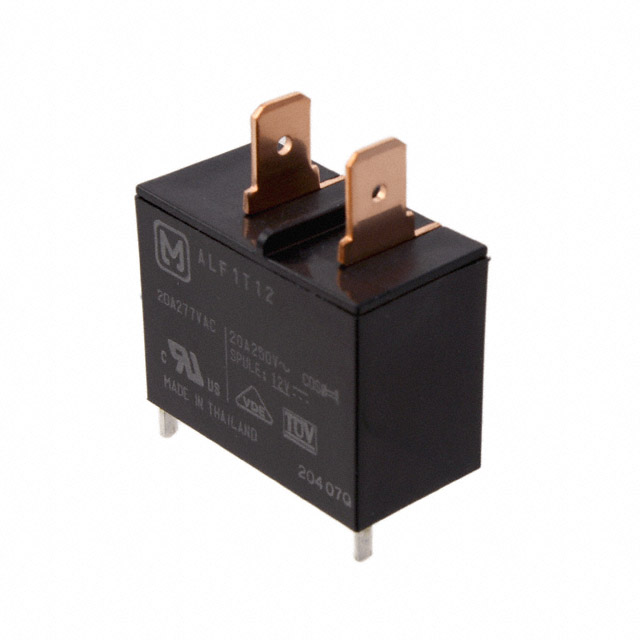

ALF1T1 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
POWER RELAY, SPST-NO, 12 VDC, 25 A, LF(ALF) SERIES, THROUGH HOLE, NON LATCHING
| Part | Coil Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Must Operate Voltage | Contact Rating (Current) | Contact Material | Coil Type | Coil Current | Switching Voltage [Max] | Coil Voltage | Relay Type | Approval Agency | Contact Form | Release Time | Must Release Voltage | Termination Style | Load - Max Switching [Max] | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 160 Ohms | 60 °C | -40 C | Through Hole | 8.4 VDC | 20 A | Silver Tin Oxide (AgSnO) | Non Latching | 0.075 A | 250 VAC | 12 VDC | General Purpose | cURus VDE | SPST-NO (1 Form A) | 15 ms | 1.2 VDC | PC Pin Quick Connect - 0.250" (6.3mm) | 5000 VA | 20 ms |
 Panasonic Electronic Components | 360 Ohms | 60 °C | -40 C | Through Hole | 12.6 VDC | 20 A | Silver Tin Oxide (AgSnO) | Non Latching | 50 mA | 250 VAC | 18 VDC | General Purpose | cURus VDE | SPST-NO (1 Form A) | 15 ms | 1.8 VDC | PC Pin Quick Connect - 0.250" (6.3mm) | 5000 VA | 20 ms |
