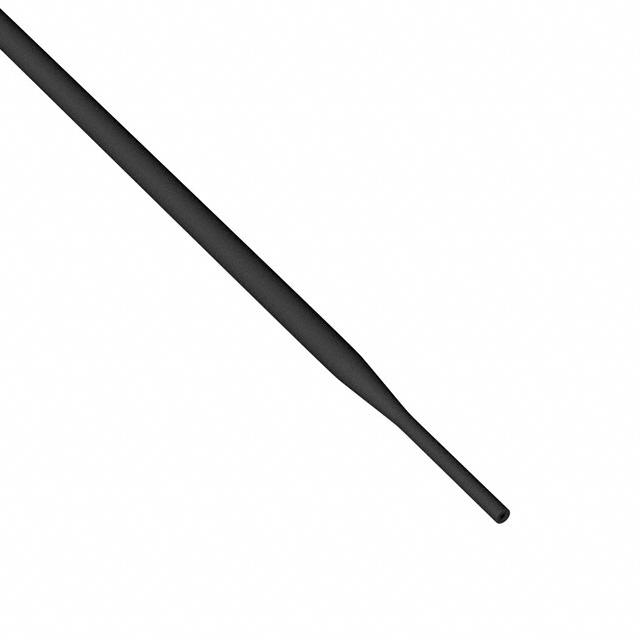

Q2-Z-3/16 Series

Manufacturer: Qualtek

Catalog

HEATSHRINK 3/16" X 30' BLACK

Part	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life	Shrink Temperature	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Features	Type	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Material	Color	Length
Qualtek Q2-Z-3/16-01-QX30FT	0.022 in	0.56 mm	0.187 "	4.75 mm	144 Months	70 °C	40 °C	14 °F	-50 °F	40 °C	0.095 "	2.41 mm	Flame Retardant	Tubing Flexible	-55 C	125 °C	9.1 m	30 '	1	2	Polyolefin (PO)	Black
Qualtek Q2-Z-3/16-01-QB6IN-24	0.022 in	0.56 mm	0.187 "	4.75 mm	144 Months	70 °C	40 °C	14 °F	-50 °F	40 °C	0.095 "	2.41 mm	Flame Retardant	Tubing Flexible	-55 C	125 °C	152.4 mm	0.5 '	1	2	Polyolefin (PO)	Black	6 "
