HFW8R Series

Catalog

CONN FFC FPC BOTTOM 8POS 1MM R/A

Part	Housing Color	Mating Cycles	Contact Material	Termination	Material Flammability Rating	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Flat Flex Type	Cable End Type	Housing Material	Pitch	Pitch	Mounting Type	Connector/Contact Type	Voltage Rating	FFC, FCB Thickness	Contact Finish	Current Rating (Amps)	Features

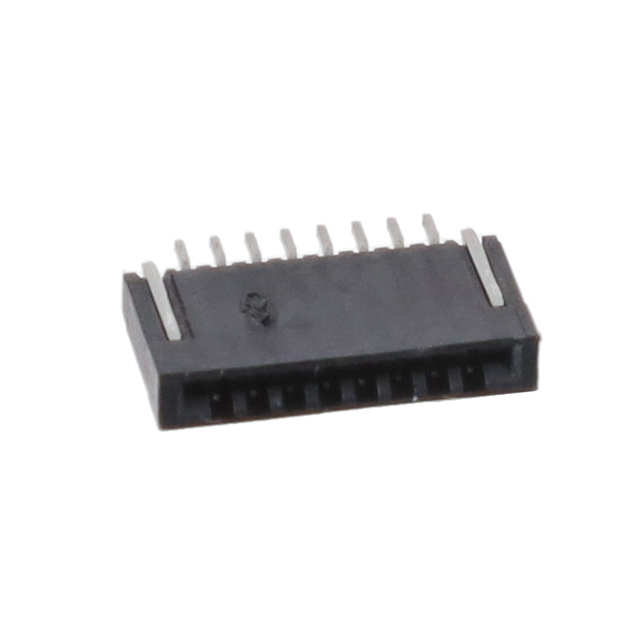

Amphenol ICC (FCI) HFW8R-1STE1H1LF	Black	30	Phosphor Bronze	Solder	UL94 V-0	1.9 mm	0.075 in	-55 C	105 ░C	8	FFC FPC	Straight or Tapered	Liquid Crystal Polymer (LCP) Halogen Free	1 mm	0.039 in	Right Angle Surface Mount	Contacts Bottom	100 V	0.3 mm	Tin
Amphenol ICC (FCI) HFW8R-2STE1MTLF	Black	30	Phosphor Bronze	Solder	UL94 V-0	3.1 mm	0.122 in	-55 C	105 ░C	8	FFC FPC	Straight or Tapered	Glass Filled Thermoplastic	1 mm	0.039 in	Right Angle Surface Mount	Contacts Top	50 V	0.3 mm	Tin	0.5 A	Solder Retention
Amphenol ICC (FCI) HFW8R-2STBE1LF	Black		Phosphor Bronze	Solder	UL94 V-0	1.9 mm	0.075 in			8	FPC	Tapered	Glass Filled Nylon 6T Polyamide (PA6T)	1 mm	0.039 in	Right Angle Surface Mount	Contacts Top		0.3 mm	Gold
Amphenol ICC (FCI) HFW8R-2STAE1H1LF	Black	30	Phosphor Bronze	Solder	UL94 V-0	1.9 mm	0.075 in	-55 C	105 ░C	8	FPC	Tapered	Liquid Crystal Polymer (LCP) Halogen Free	1 mm	0.039 in	Right Angle Surface Mount	Contacts Top	100 V	0.3 mm	Gold		Solder Retention
Amphenol ICC (FCI) HFW8R-2STE9LF	Black	30	Phosphor Bronze	Solder	UL94 V-0	1.9 mm	0.075 in	-55 C	105 ░C	8	FFC FPC	Straight or Tapered	Glass Filled Nylon 6T Polyamide (PA6T)	1 mm	0.039 in	Right Angle Surface Mount	Contacts Top	100 V	0.3 mm	Tin

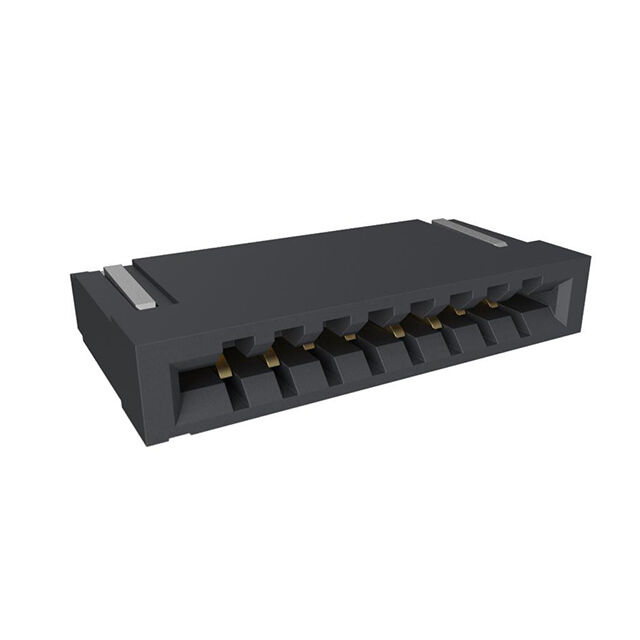

Amphenol ICC (FCI) HFW8R-1STAE1H1LF	Black	30	Phosphor Bronze	Solder	UL94 V-0	1.9 mm	0.075 in	-55 C	105 ░C	8	FPC	Tapered	Liquid Crystal Polymer (LCP) Halogen Free	1 mm	0.039 in	Right Angle Surface Mount	Contacts Bottom	100 V	0.3 mm	Gold		Solder Retention
Amphenol ICC (FCI) HFW8R-2STAE1LF	Black	30	Phosphor Bronze	Solder	UL94 V-0	1.9 mm	0.075 in	-55 C	105 ░C	8	FPC	Tapered	Glass Filled Nylon 6T Polyamide (PA6T)	1 mm	0.039 in	Right Angle Surface Mount	Contacts Top	100 V	0.3 mm	Gold		Solder Retention
Amphenol ICC (FCI) HFW8R-2STAHE1LF										8				1 mm	0.039 in	Right Angle Surface Mount
Amphenol ICC (FCI) HFW8R-1STAE1LF	Black	30	Phosphor Bronze	Solder	UL94 V-0	1.9 mm	0.075 in	-55 C	105 ░C	8	FPC	Tapered	Glass Filled Nylon 6T Polyamide (PA6T)	1 mm	0.039 in	Right Angle Surface Mount	Contacts Bottom	100 V	0.3 mm	Gold		Solder Retention

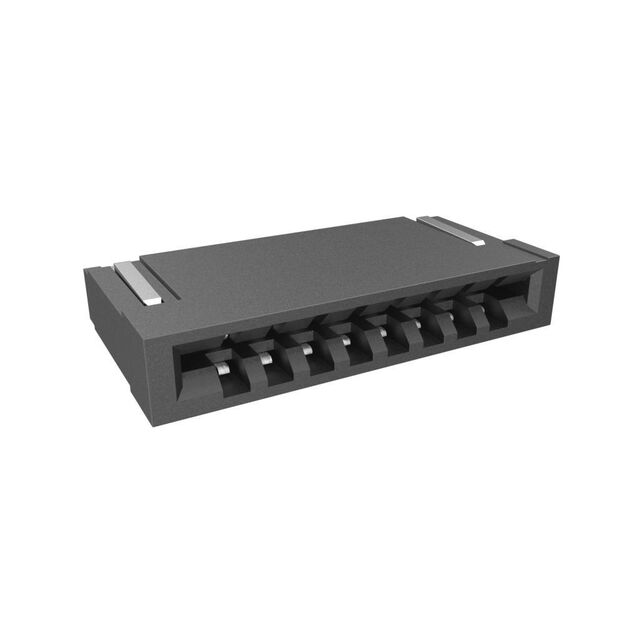

Amphenol ICC (FCI) HFW8R-2STE1H1LF	Black	30	Phosphor Bronze	Solder	UL94 V-0	1.9 mm	0.075 in	-55 C	105 ░C	8	FFC FPC	Straight or Tapered	Liquid Crystal Polymer (LCP) Halogen Free	1 mm	0.039 in	Right Angle Surface Mount	Contacts Top	100 V	0.3 mm	Tin
