SMLVN6 Series

Thin reflector type, RGB chip LED

Catalog

Thin reflector type, RGB chip LED

Part	Height (Max) [z]	Lens Style	Supplier Device Package	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Lens Transparency	Color	Mounting Type	Package / Case	Current - Test	Lens Color	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Configuration	Supplier Device Package	Height (Max) [z]	Supplier Device Package	Supplier Device Package	Millicandela Rating

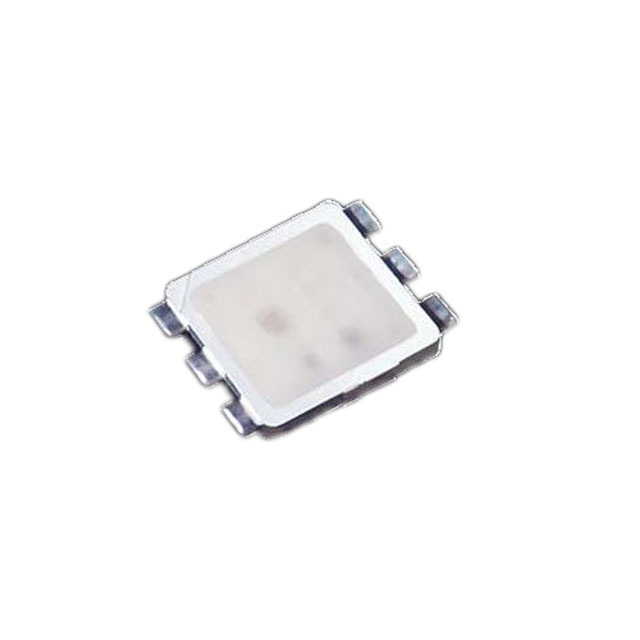

Rohm Semiconductor SMLVN6RGB1U1	0.6 mm	Rectangle with Flat Top	3528	700 mcd	1200 mcd	400 mcd	2.8 mm	3.1 mm	2.1 V 3.3 V 3.3 V	Diffused	Blue Green Red	Surface Mount	6-SMD Flat Leads	20mA Blue 20mA Green 20mA Red	White	470 nm	624 nm	527 nm	Independent

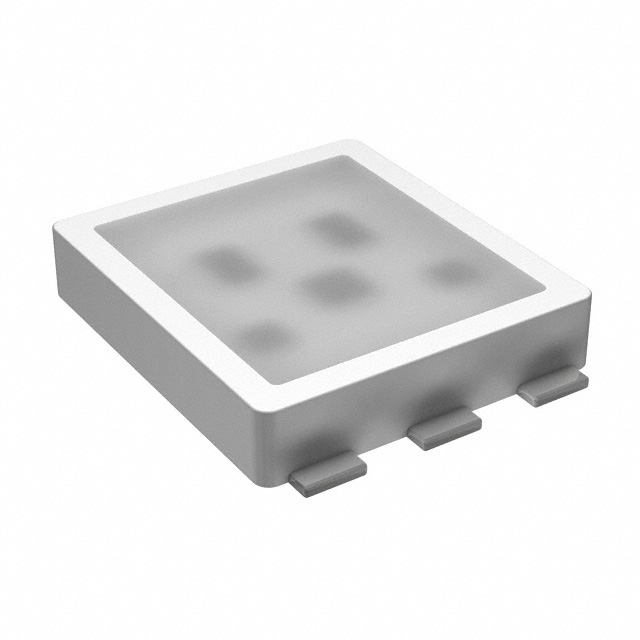

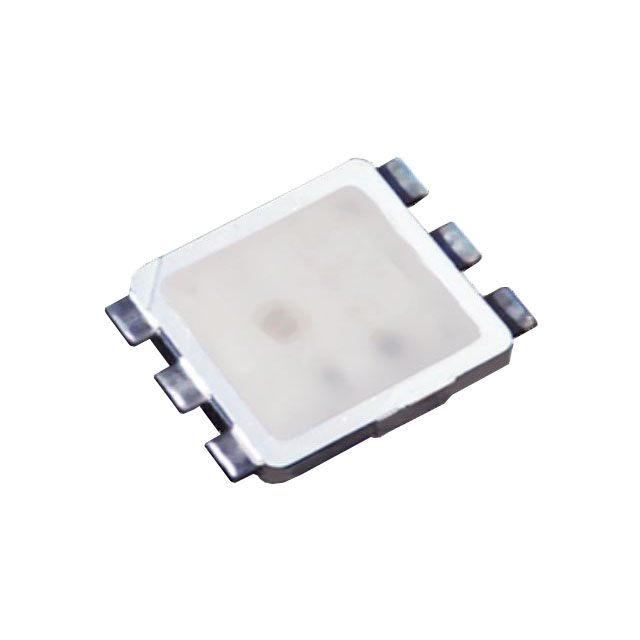

Rohm Semiconductor SMLVN6RGB1W1		Rectangle with Flat Top	1411	700 mcd	1200 mcd	400 mcd	2.8 mm	3.1 mm	2.1 V 3.3 V 3.3 V	Diffused	Blue Green Red	Surface Mount	6-SMD Flat Leads	20mA Blue 20mA Green 20mA Red	White	470 nm	624 nm	527 nm	Independent	3528	0.7 mm
Rohm Semiconductor SMLVN6RGB7W1		Rectangle with Flat Top					2.8 mm	3.1 mm	2.1 V 3.3 V 3.5 V		Blue Green Red	Surface Mount	6-SMD Flat Leads	20mA Blue 20mA Green 20mA Red		470 nm	624 nm	527 nm	Independent		0.7 mm	3528	1411	300 mcd 500 mcd 1000 mcd

Catalog

Thin reflector type, RGB chip LED

Description

This product is a 6pin type product. SMLVN series is a thin reflector type that allows uniform illumination within the symbol to be illuminated. High brightness and large-area luminescence are possible.
