1241.6834 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
SWITCH PUSHBUTTON DPST 12A 250V
| Part | Electrical Life | Mechanical Life | Voltage Rating - DC | Actuator Type | Ingress Protection | Illumination Type, Color | Actuator Marking | Panel Cutout Dimensions [diameter] | Type | Switch Function | Current Rating (Amps) | Color - Actuator/Cap | Termination Style | Circuit | Mounting Type | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

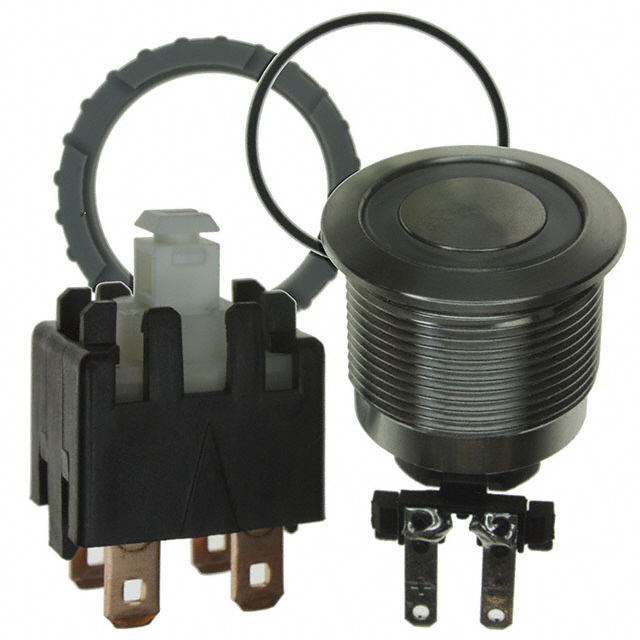

 SCHURTER Inc. | 50000 Cycles | 100000 Cycles | 30 V | Button Round | IP64 - Dust Tight Water Resistant | Blue LED | No Marking | 22.1 mm | Anti-Vandal Illuminated | Off-On | 12 A | Silver | Quick Connect | DPST | Panel Mount Front | 250 V | 85 °C | -20 ░C | 24 V |

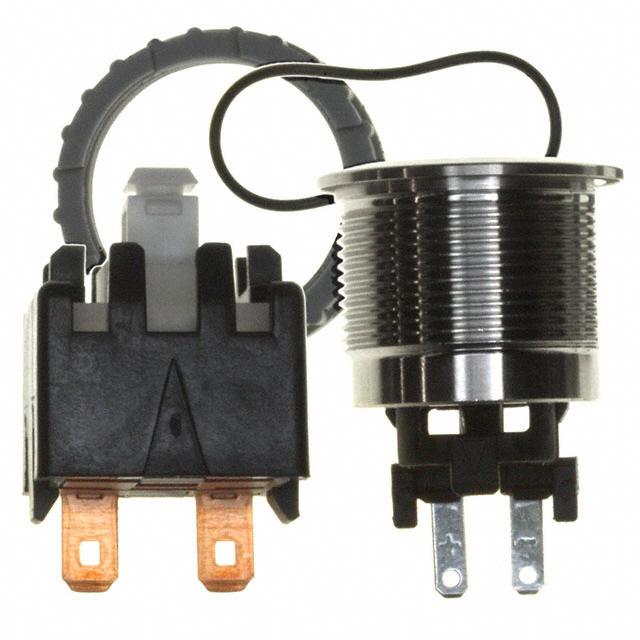

 SCHURTER Inc. | 50000 Cycles | 100000 Cycles | 30 V | Button Round | IP64 - Dust Tight Water Resistant | Green LED | No Marking | 22.1 mm | Anti-Vandal Illuminated | Off-On | 12 A | Silver | Quick Connect | SPST | Panel Mount Front | 250 V | 85 °C | -20 ░C | 24 V |

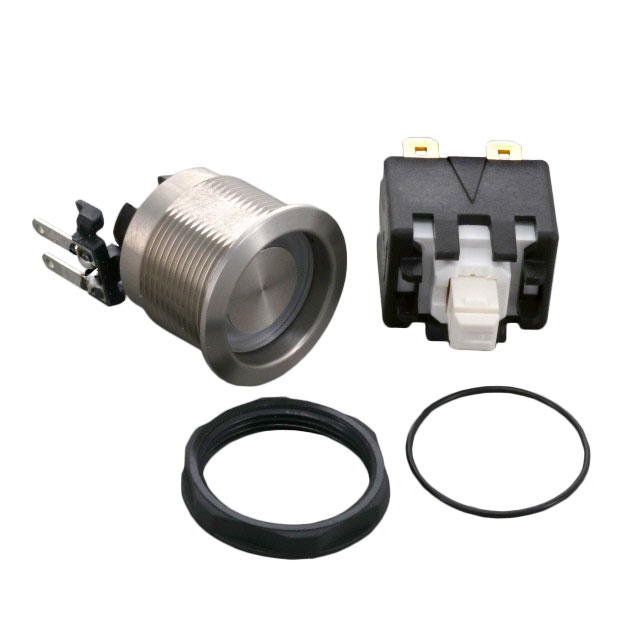

 SCHURTER Inc. | 50000 Cycles | 100000 Cycles | 30 V | Button Round | IP64 - Dust Tight Water Resistant | Green LED | No Marking | 22.1 mm | Anti-Vandal Illuminated | Off-On | 12 A | Silver | Quick Connect | DPST | Panel Mount Front | 250 V | 85 °C | -20 ░C | 24 V |
