SCP30 Series

Manufacturer: SolaHD

Catalog

AC/DC DIN RAIL SUPPLY 3.3V 20W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Features	Efficiency	Number of Outputs	DC Voltage - Input (Min) [Min]	Approval Agency	Voltage - Output 1	DC Voltage - Input (Max) [Max]	Input Type	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Power (Watts)	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 2	Voltage - Output 3	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)

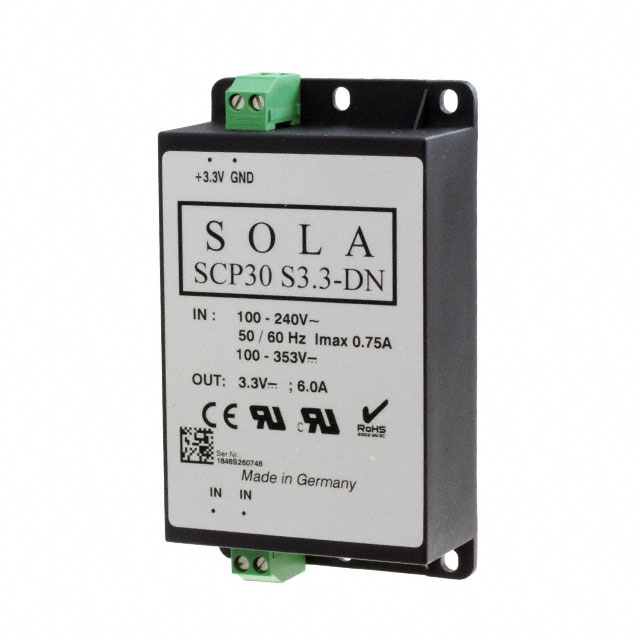

SolaHD SCP30S3.3-DN	-25 °C	65 °C	ITE (Commercial)	IP20 Universal Input	62 %	1	100 V	CE cURus	3.3 V	375 V	AC or DC	264 VAC	85 VAC	20 W	6 A	120 mm	33 mm	1.29 in	65 mm	4.71 "	2.55 "

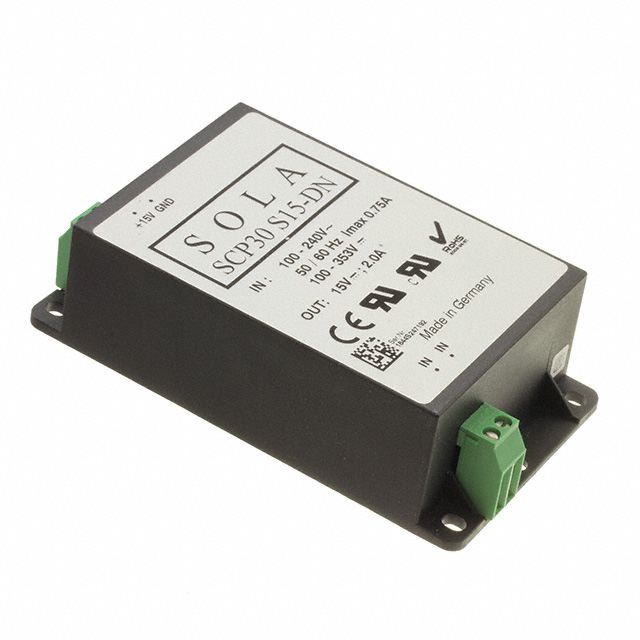

SolaHD SCP30S15-DN	-25 °C	65 °C	ITE (Commercial)	IP20 Universal Input	75 %	1	100 V	CE cURus	15 V	375 V	AC or DC	264 VAC	85 VAC	30 Watts	2 A	120 mm	33 mm	1.29 in	65 mm	4.71 "	2.55 "

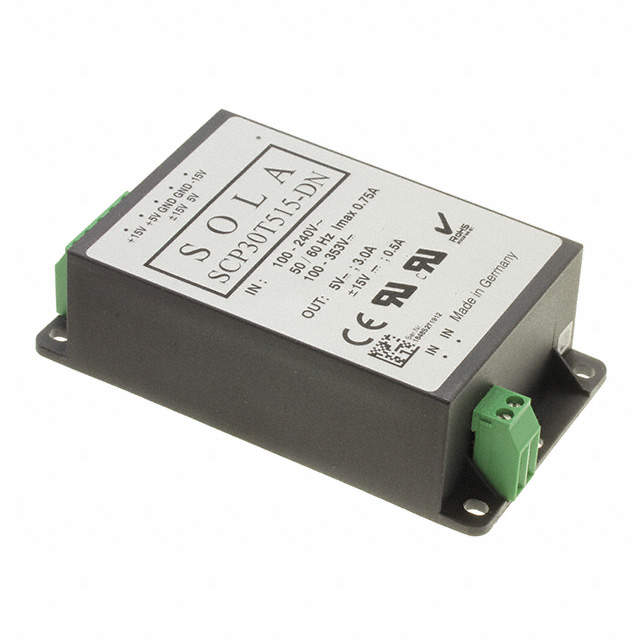

SolaHD SCP30T515-DN	-25 °C	65 °C	ITE (Commercial)	IP20 Universal Input	68 %	3	100 V	CE cURus	5 V	375 V	AC or DC	264 VAC	85 VAC	30 Watts	3 A	120 mm	33 mm	1.29 in	65 mm	4.71 "	2.55 "	-15 V	15 V	500 mA	500 mA
SolaHD SCP30S3.3B-DN	-25 °C	65 °C	ITE (Commercial)	IP20 Universal Input	62 %	1	100 V	CE cURus	3.3 V	375 V	AC or DC	264 VAC	85 VAC	20 W	6 A	113 mm	35 mm	1.37 in	68 mm	4.43 in	2.67 in

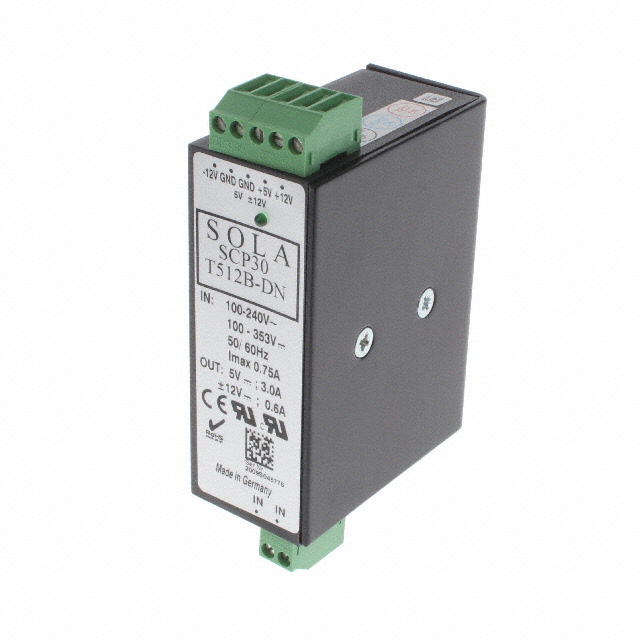

SolaHD SCP30T512B-DN	-25 °C	65 °C	ITE (Commercial)	IP20 Universal Input	68 %	3	100 V	CE cURus	5 V	375 V	AC or DC	264 VAC	85 VAC	29 W		113 mm	35 mm	1.37 in	68 mm	4.43 in	2.67 in	-12 V	12 V	600 mA	600 mA	3 A
SolaHD SCP30D524B-DN	-25 °C	65 °C	ITE (Commercial)	IP20 Universal Input	68 %	2	100 V	CE cURus	5 V	375 V	AC or DC	264 VAC	85 VAC	29 W		113 mm	35 mm	1.37 in	68 mm	4.43 in	2.67 in	24 V				3 A 600 mA
SolaHD SCP30T515B-DN	-25 °C	65 °C	ITE (Commercial)	IP20 Universal Input	68 %	3	100 V	CE cURus	5 V	375 V	AC or DC	264 VAC	85 VAC	30 Watts	3 A	113 mm	35 mm	1.37 in	68 mm	4.43 in	2.67 in	-15 V	15 V	500 mA	500 mA

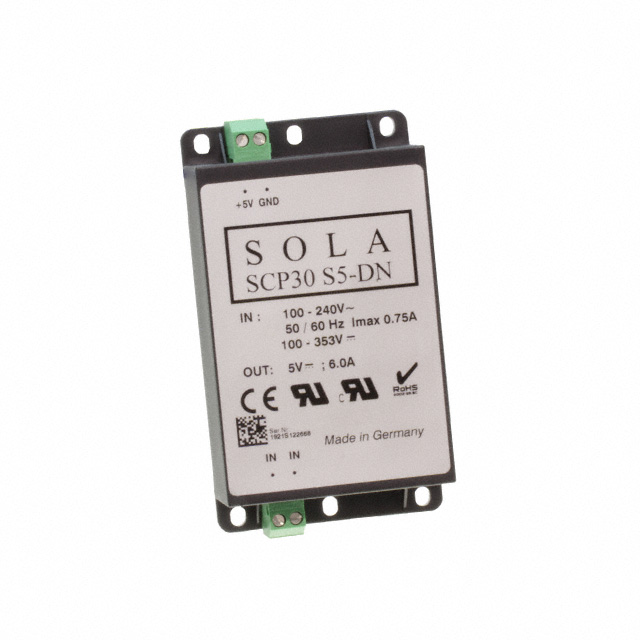

SolaHD SCP30S5-DN	-25 °C	65 °C	ITE (Commercial)	IP20 Universal Input	70 %	1	100 V	CE cURus	5 V	375 V	AC or DC	264 VAC	85 VAC	30 Watts	6 A	120 mm	33 mm	1.29 in	65 mm	4.71 "	2.55 "
SolaHD SCP30S15B-DN	-25 °C	65 °C	ITE (Commercial)	IP20 Universal Input	75 %	1	100 V	CE cURus	15 V	375 V	AC or DC	264 VAC	85 VAC	30 Watts	2 A	113 mm	35 mm	1.37 in	68 mm	4.43 in	2.67 in

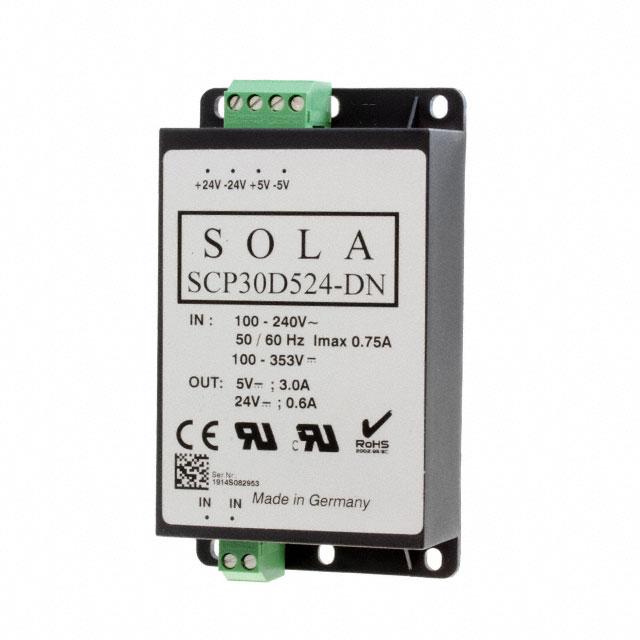

SolaHD SCP30D524-DN	-25 °C	65 °C	ITE (Commercial)	IP20 Universal Input	68 %	2	100 V	CE cURus	5 V	375 V	AC or DC	264 VAC	85 VAC	29 W		120 mm	33 mm	1.29 in	65 mm	4.71 "	2.55 "	24 V				3 A 600 mA
