2129691 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

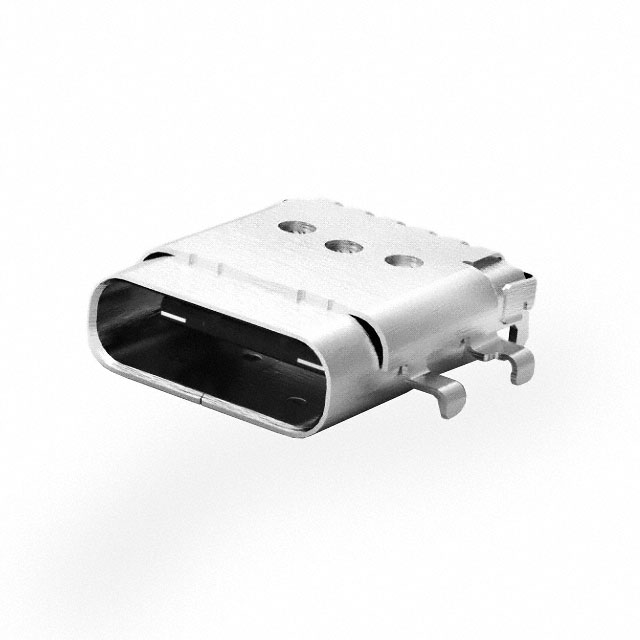

CONN RCPT USB3.1 TYPEC 24POS SMD
| Part | Mounting Type | Current Rating (Amps) | Number of Ports | Number of Contacts | Material Flammability Rating | Mounting Feature | Insulation Color | Connector Type | Shell/Shielding Material | Mating Cycles | Contact Finish | Gender | Termination | Voltage - Rated | Specifications | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Board Edge Cutout Surface Mount Through Hole Right Angle | 0.25 A 1.25 A 5 A | 1 | 24 | UL94 V-0 | Horizontal Mid Mount | Black | USB-C (USB TYPE-C) | Stainless Steel | 10000 | Gold | Receptacle | Solder | 30 V | USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1)) | -30 ░C | 85 °C |
