LOD-H12864 Series

Catalog

128X64 PIXELS UART OLED MODULE W

Part	Dot Pitch [custom]	Dot Pitch [custom]	Dot Size [y]	Dot Size [x]	Display Type	Graphics Color	Viewing Area [y]	Viewing Area [z]	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Background Color	Dot Pixels [x]	Dot Pixels [y]	Interface	Viewing Area [x]

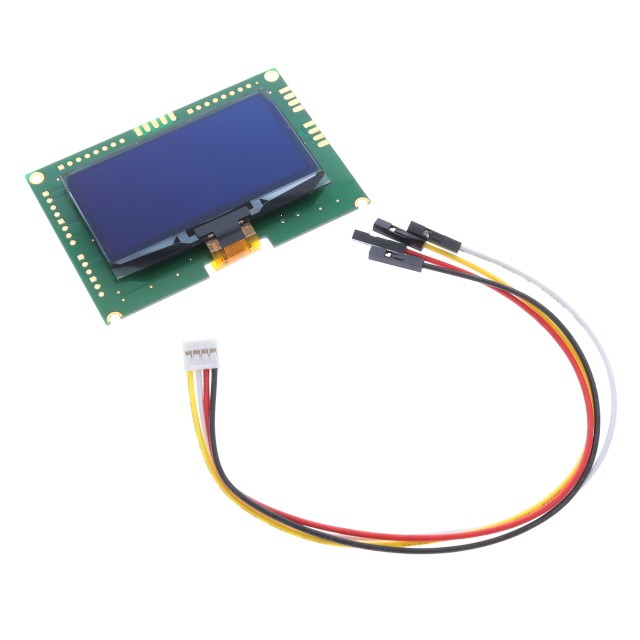

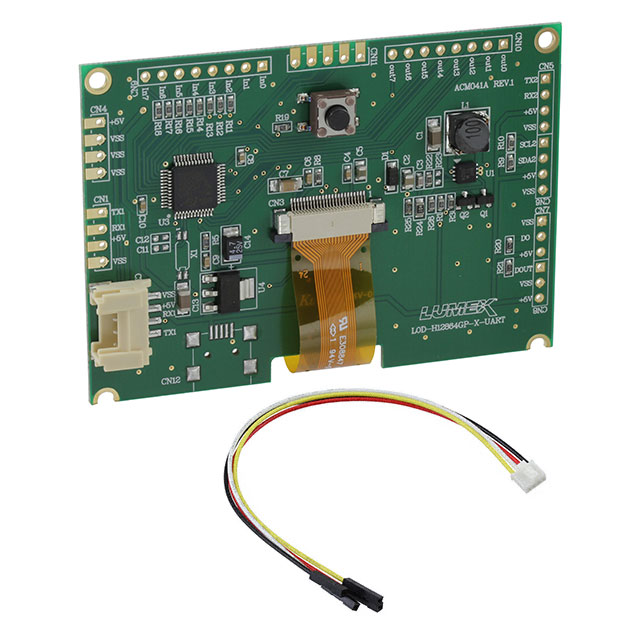

Lumex Opto/Components Inc. LOD-H12864GP-W-UR	0.43 mm	0.43 mm	0.4 mm	0.4 mm	OLED - Passive Matrix	White	57.01 mm	29.9 mm	61.47 mm	2.42 in	Black	128	64	UART

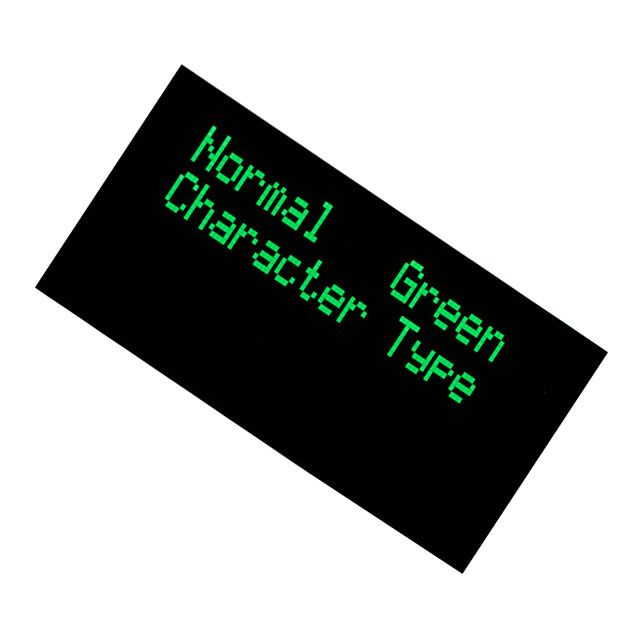

Lumex Opto/Components Inc. LOD-H12864GP-G			4 mm	4 mm	OLED - Passive Matrix	Green	29.49 mm				Black	128	64	8-Bit Parallel	57.01 mm

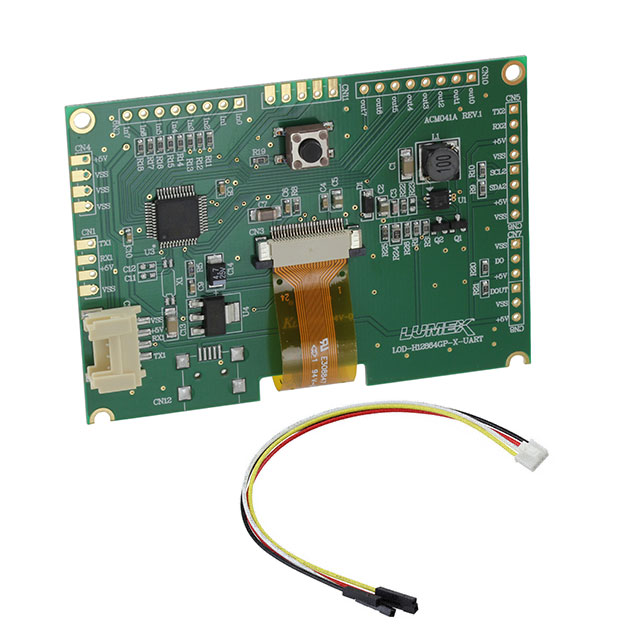

Lumex Opto/Components Inc. LOD-H12864GP-Y-UR	0.43 mm	0.43 mm	0.4 mm	0.4 mm	OLED - Passive Matrix	Yellow	57.01 mm	29.9 mm	61.47 mm	2.42 in	Black	128	64	UART

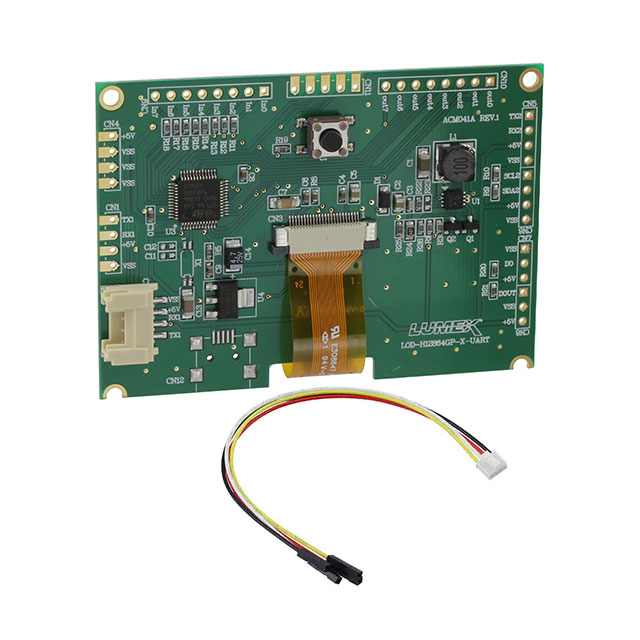

Lumex Opto/Components Inc. LOD-H12864GP-B-UR	0.43 mm	0.43 mm	0.4 mm	0.4 mm	OLED - Passive Matrix	Blue	57.01 mm	29.9 mm	61.47 mm	2.42 in	Black	128	64	UART

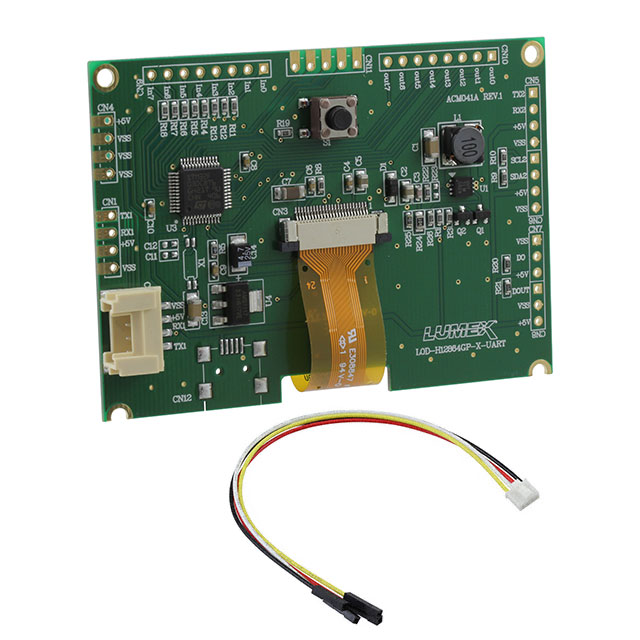

Lumex Opto/Components Inc. LOD-H12864GP-G-UR	0.43 mm	0.43 mm	0.4 mm	0.4 mm	OLED - Passive Matrix	Green	57.01 mm	29.9 mm	61.47 mm	2.42 in	Black	128	64	UART
