MEAS FN3002 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

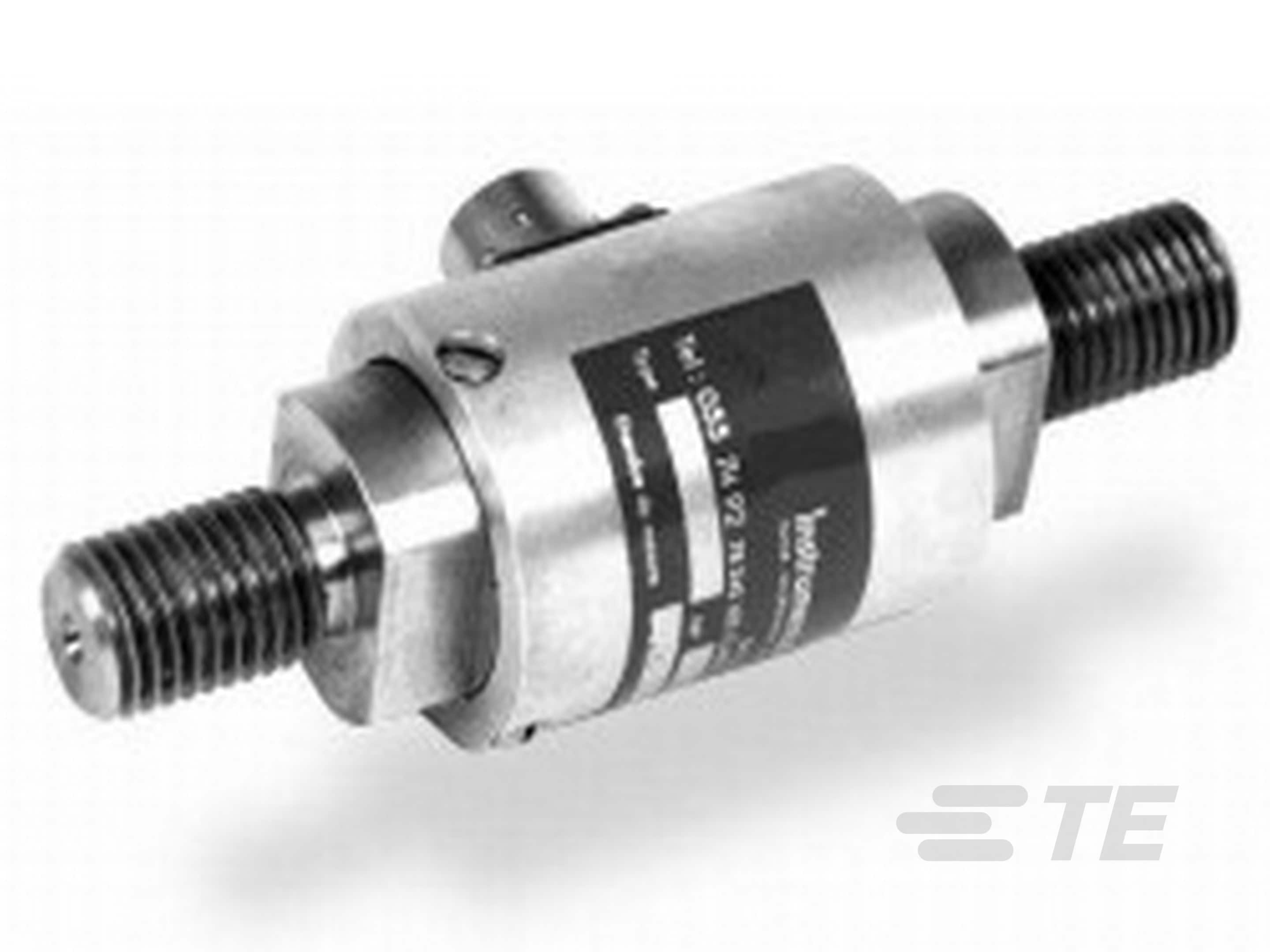

FN3002-A1-10KN-/Z04/P5/L5M

Part	Operating Force	Operating Force	Compensated Temperature [Max]	Actuator Type	Sensor Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Accuracy	Output	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply
TE Connectivity AMP Connectors 20020442-00	2248 lbs	1019.72 kgf	60 °C	Diaphragm	Load Cell	10 VDC	30 VDC	0.25 %	Voltage	Sensor	80 °C	-20 ░C
TE Connectivity AMP Connectors EFN30-200KN-C20005	44960 lbs	20393.5 kgf	60 °C		Load Cell			0.25 %	Resistive	Sensor	80 °C	-20 ░C	10 VDC
TE Connectivity AMP Connectors EFN30-20KN-C20002	4496 lbs	2039.35 kgf	60 °C		Load Cell			0.25 %	Resistive	Sensor	80 °C	-20 ░C	10 VDC
TE Connectivity AMP Connectors EFN30-50KN-C20006	11240 lbs	5098.58 kgf	60 °C		Load Cell			0.25 %	Resistive	Sensor	80 °C	-20 ░C	10 VDC
TE Connectivity AMP Connectors 20020567-00	11240 lbs	5098.58 kgf	60 °C	Diaphragm	Load Cell	10 VDC	30 VDC	0.25 %	Voltage	Sensor	80 °C	-20 ░C
TE Connectivity AMP Connectors 20019523-00	11240 lbs	5098.58 kgf	60 °C	Diaphragm	Load Cell	10 VDC	30 VDC	0.25 %	Voltage	Sensor	80 °C	-20 ░C
TE Connectivity AMP Connectors EFN30-50KN-C20005	11240 lbs	5098.58 kgf	60 °C		Load Cell			0.25 %	Resistive	Sensor	80 °C	-20 ░C	10 VDC
TE Connectivity AMP Connectors EFN30-500KN-C20002	112404 lbs	50985.81 kgf	60 °C		Load Cell			0.25 %	Resistive	Sensor	80 °C	-20 ░C	10 VDC
TE Connectivity AMP Connectors 20019177-00	2248 lbs	1019.72 kgf	60 °C	Diaphragm	Load Cell			0.25 %	Voltage	Sensor	80 °C	-20 ░C	10 VDC
TE Connectivity AMP Connectors 20018526-00	11240 lbs	5098.58 kgf	60 °C	Diaphragm	Load Cell	10 VDC	30 VDC	0.25 %	Voltage	Sensor	80 °C	-20 ░C
