R11642 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

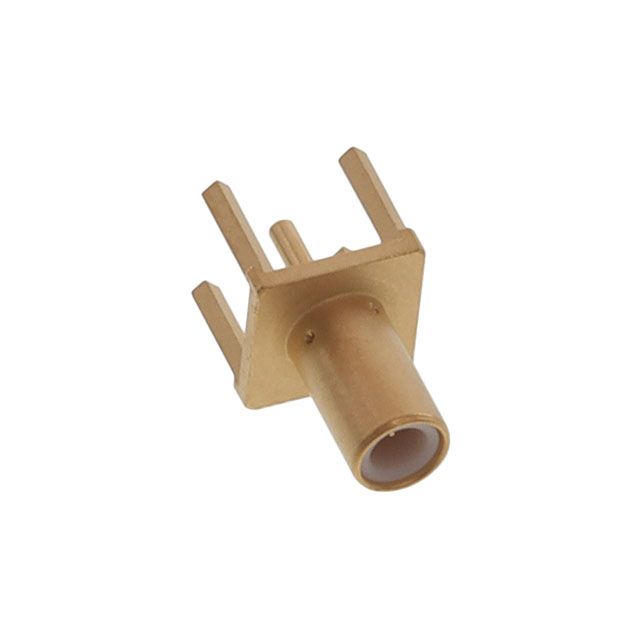

SMB / STRAIGHT JACK RECEPTACLE F
| Part | Center Contact Plating | Voltage Rating | Body Material | Mating Cycles | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Housing Color | Connector Style | Shield Termination | Connector Type | Fastening Type | Center Contact Material | Contact Termination | Impedance | Number of Ports | Frequency - Max [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 1000 VDC | Brass | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | Gold | SMB | Solder | Receptacle Male Pin | Snap-On | Brass | Solder | 50 Ohms | 1 | 4 GHz | Through Hole |
