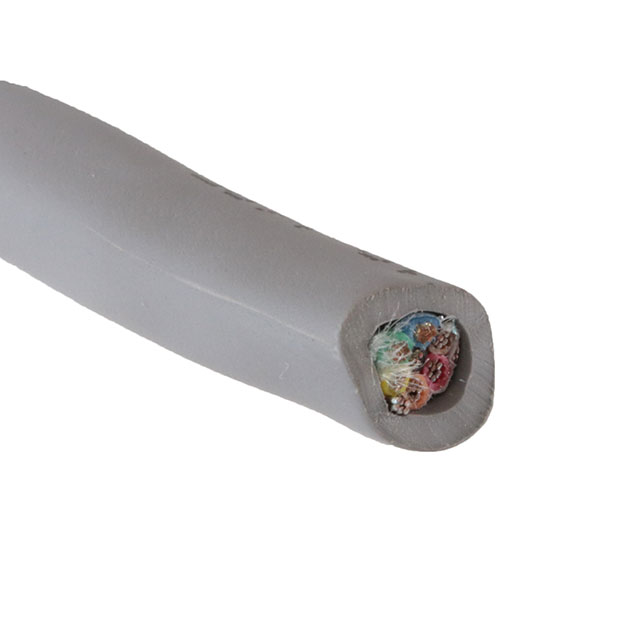

5561C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 7COND 20AWG SHLD
| Part | Shield Material | Shield Coverage | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Jacket Color | Number of Conductors | Voltage | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Length | Length | Ratings | Features | Wire Gauge | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 70 % 100 % | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Copper Tinned | 1.6 mm | 0.063 in | Braid Foil | Slate | 7 | 300 VDC | Multi-Conductor | 28 AWG | 7 | 7.85 mm | 0.309 in | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | UL Style 21895 | Drain Wire Rip Cord | 20 AWG | ||
ALPHA WIRE | Aluminum Copper Tinned | 70 % 100 % | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Copper Tinned | 1.6 mm | 0.063 in | Braid Foil | Slate | 7 | 300 VDC | Multi-Conductor | 28 AWG | 7 | 7.85 mm | 0.309 in | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | UL Style 21895 | Drain Wire Rip Cord | 20 AWG | ||
ALPHA WIRE | Aluminum Copper Tinned | 70 % 100 % | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Copper Tinned | 1.6 mm | 0.063 in | Braid Foil | Slate | 7 | 300 VDC | Multi-Conductor | 28 AWG | 7 | 7.85 mm | 0.309 in | Poly-Vinyl Chloride (PVC) | UL Style 21895 | Drain Wire Rip Cord | 20 AWG | 100 ft | 30.5 m | ||
 ALPHA WIRE | Aluminum Copper Tinned | 70 % 100 % | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Copper Tinned | 1.6 mm | 0.063 in | Braid Foil | Black | 7 | 300 VDC | Multi-Conductor | 28 AWG | 7 | 7.85 mm | 0.309 in | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | UL Style 21895 | Drain Wire Rip Cord | 20 AWG |
