RV-S_D/R Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC MIN 6.4KV UNREG 12VIN +/-12OUT

...

Part	Current - Output (Max)	Current - Output (Max)	Type	Mounting Type	Voltage - Isolation	Voltage - Output 2	Package / Case	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Number of Outputs	Features	Applications	Voltage - Output 1	Current - Output (Max) [Max]	Efficiency [Max]	Efficiency [Min]
Recom Power RV-1212D/P/R6.4	85 mA	85 mA	Isolated Module	Through Hole	6.4 kV	-12 V	24-DIP Module 14 Leads	13.2 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm	10.8 V	2 W	85 °C	-40 C	86 %	2	SCP	ITE (Commercial) Medical	12 V
Recom Power RV-053.3S/R8			Isolated Module	Through Hole	8 kV		24-DIP Module 14 Leads	5.5 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm	4.5 V	2 W	85 °C	-40 C		1		ITE (Commercial) Medical	3.3 V	600 mA	78 %	70 %

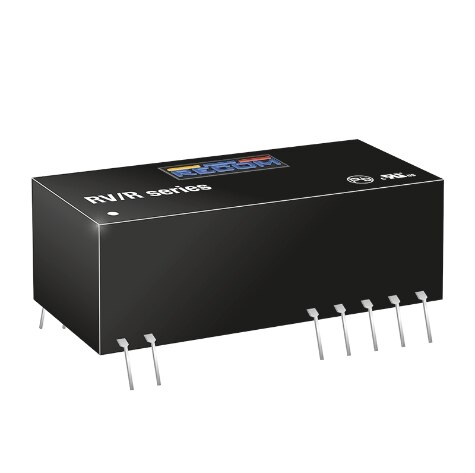

Recom Power RV-1209D/R6.4	111 mA		Isolated Module	Through Hole	6.4 kV	-9 V	24-DIP Module 14 Leads	13.2 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm	10.8 V	2 W	85 °C	-40 C	84 %	2		ITE (Commercial) Medical	9 V
Recom Power RV-053.3D/P/R6.4			Isolated Module	Through Hole	6.4 kV	-3.3 V	24-DIP Module 14 Leads	5.5 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm	4.5 V	2 W	85 °C	-40 C		2	SCP	ITE (Commercial) Medical	3.3 V	0.3 A	78 %	70 %
Recom Power RV-0512S/P/R6.4			Isolated Module	Through Hole	6.4 kV		24-DIP Module 14 Leads	5.5 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm	4.5 V	2 W	85 °C	-40 C	85 %	1	SCP	ITE (Commercial) Medical	12 V	167 mA
Recom Power RV-1212S/P/R6.4			Isolated Module	Through Hole	6.4 kV		24-DIP Module 14 Leads	13.2 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm	10.8 V	2 W	85 °C	-40 C	85 %	1	SCP	ITE (Commercial) Medical	12 V	167 mA
Recom Power RV-2409D/R8	111 mA		Isolated Module	Through Hole	8 kV	-9 V	24-DIP Module 14 Leads	26.4 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm	21.6 V	2 W	85 °C	-40 C	84 %	2		ITE (Commercial) Medical	9 V
Recom Power RV-2415S/P/R6.4			Isolated Module	Through Hole	6.4 kV		24-DIP Module 14 Leads	26.4 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm	21.6 V	2 W	85 °C	-40 C	80 %	1	SCP	ITE (Commercial) Medical	15 V	132 mA
Recom Power RV-1205S/R8			Isolated Module	Through Hole	8 kV		24-DIP Module 14 Leads	13.2 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm	10.8 V	2 W	85 °C	-40 C	80 %	1		ITE (Commercial) Medical	5 V	400 mA
Recom Power RV-1212S/R8			Isolated Module	Through Hole	8 kV		24-DIP Module 14 Leads	13.2 V	0.45 in	0.58 in	1.27 in	32.4 mm	14.7 mm	11.4 mm	10.8 V	2 W	85 °C	-40 C	85 %	1		ITE (Commercial) Medical	12 V	167 mA
