45K201 Series
Manufacturer: Rosenberger
Beta
⌘K

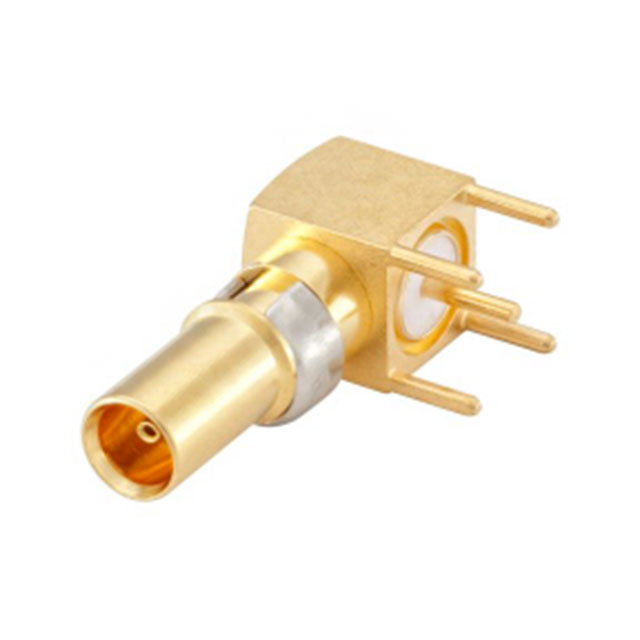

CONN 1.0/2.3 JACK R/A 50OHM PCB
| Part | Mating Cycles | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Center Contact Plating | Body Finish | Body Material | Contact Termination | Frequency - Max [Max] | Shield Termination | Fastening Type | Connector Type | Number of Ports | Impedance | Center Contact Material | Connector Style | Mounting Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | 250 V | Gold | Gold | Brass | Solder | 6000 MHz | Solder | Push-Pull | Female Socket Jack | 1 | 50 Ohms | Beryllium Copper | 1.0/2.3 | Right Angle Through Hole | Gold |
