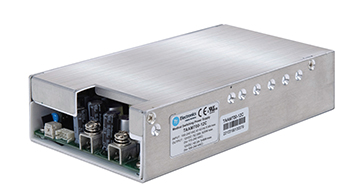

Enclosed Power Supply 48V 700 Watt
Enclosed Power Supply 48V 700 Watt
| Part | Efficiency | Approval Agency | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Mounting Type | Voltage - Output 1 | Standard Number | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output 1 | Applications | Number of Outputs | Power (Watts) | Type | Features | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | 92 % | CB CE cURus UKCA | 3.66 in | 93 mm | 40.9 mm | 170.2 mm | 1.61 " | 6.7 " | Chassis Mount | 48 V | 60601-1 | -30 °C | 70 °C | 14.58 A | Medical | 1 | 700 W | Enclosed | Adjustable Output DC Input Capable PFC Remote On/Off Universal Input | |
 TT Electronics/BI | 91 % | CB CE cURus UKCA | 3.66 in | 93 mm | 40.9 mm | 170.2 mm | 1.61 " | 6.7 " | Chassis Mount | 24 V | 60601-1 | -30 °C | 70 °C | 29.16 A | Medical | 1 | 700 W | Enclosed | Adjustable Output Load Sharing PFC Remote On/Off Standby Output Universal Input | 5656 V |
TT Electronics/BI | 92 % | CB CE cURus UKCA | 3.66 in | 93 mm | 40.9 mm | 170.2 mm | 1.61 " | 6.7 " | Chassis Mount | 15 V | 60601-1 | -30 °C | 70 °C | 41.66 A | Medical | 1 | 625 W | Enclosed | Adjustable Output DC Input Capable PFC Remote On/Off Universal Input | |
 TT Electronics/BI | 89 % | CB CE cURus UKCA | 3.66 in | 93 mm | 40.9 mm | 170.2 mm | 1.61 " | 6.7 " | Chassis Mount | 12 V | 60601-1 | -30 °C | 70 °C | 52.08 A | Medical | 1 | 625 W | Enclosed | Adjustable Output Load Sharing PFC Remote On/Off Standby Output Universal Input | 5656 V |
