CSI-RSFE Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

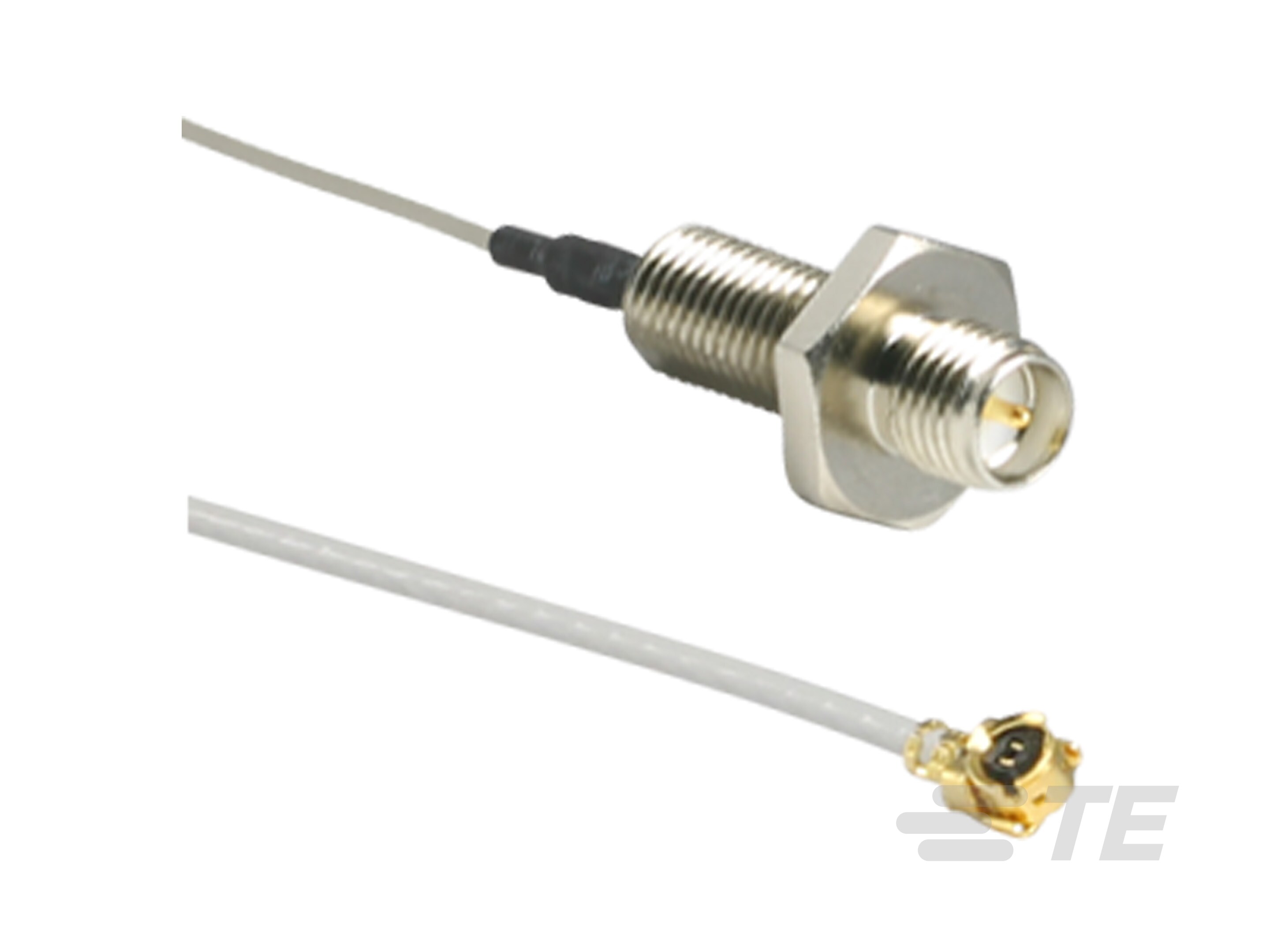

RP-SMA TO U.FL/MHF1 100MM 1.13 OD
| Part | 1st Connector Mounting Feature | 1st Connector | 2nd Connector Mounting Type | 1st Connector Mounting Type | Style | Overall Impedance | Frequency - Max [Max] | Cable Type | Cable Type [diameter] | Length | Length | Color | 1st Contact Gender | 2nd Connector | 2nd Contact Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Bulkhead - Rear Side Nut | RP-SMA Jack | Free Hanging (In-Line) | Panel Mount | U.FL (UMCC) to RP-SMA | 50 Ohms | 3 GHz | Coaxial Cable | 1.13 mm | 3.937 in | 100 mm | Gray | Male | U.FL (UMCC) Plug Right Angle | Female |
 TE Connectivity AMP Connectors | Bulkhead - Rear Side Nut | RP-SMA Jack | Free Hanging (In-Line) | Panel Mount | U.FL (UMCC) to RP-SMA | 50 Ohms | 3 GHz | Coaxial Cable | 1.13 mm | 7.874 in | 200 mm | Gray | Male | U.FL (UMCC) Plug Right Angle | Female |
 TE Connectivity AMP Connectors | Bulkhead - Rear Side Nut | RP-SMA Jack | Free Hanging (In-Line) | Panel Mount | U.FL (UMCC) to RP-SMA | 50 Ohms | 3 GHz | Coaxial Cable | 1.13 mm | 11.811 in | 300 mm | Gray | Male | U.FL (UMCC) Plug Right Angle | Female |
