LT1086 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
1.5A LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED 2.85V, 3.3V, 3.6V, 5V, 12V
| Part | Current - Quiescent (Iq) | Mounting Type | PSRR | Voltage - Output (Min/Fixed) | Number of Regulators | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output | Supplier Device Package | Package / Case | Voltage - Input (Max) [Max] | Voltage Dropout (Max) | Protection Features | Output Configuration | Output Type | Voltage - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 10 mA | Through Hole | 68 dB | 5 V | 1 | 0 °C | 125 °C | 1.5 A | TO-220-3 | TO-220-3 | 20 V | 1.5 V | Over Current Over Temperature | Positive | ||
 Analog Devices Inc./Maxim Integrated | Through Hole | 1 | -40 C | 150 °C | TO-3 | TO-204AA TO-3 | ||||||||||
 Analog Devices Inc./Maxim Integrated | 10 mA | Through Hole | 60 dB | 12 V | 1 | -40 C | 125 °C | 1.5 A | TO-220-3 | TO-220-3 | 25 V | 1.5 V | Over Current Over Temperature | Positive | ||
 Analog Devices Inc./Maxim Integrated | Through Hole | 75 dB | 1.25 V | 1 | -40 C | 125 °C | 1.5 A | TO-220-3 | TO-220-3 | 25 V | 1.5 V | Over Current Over Temperature | Positive | Adjustable | 23.5 V | |

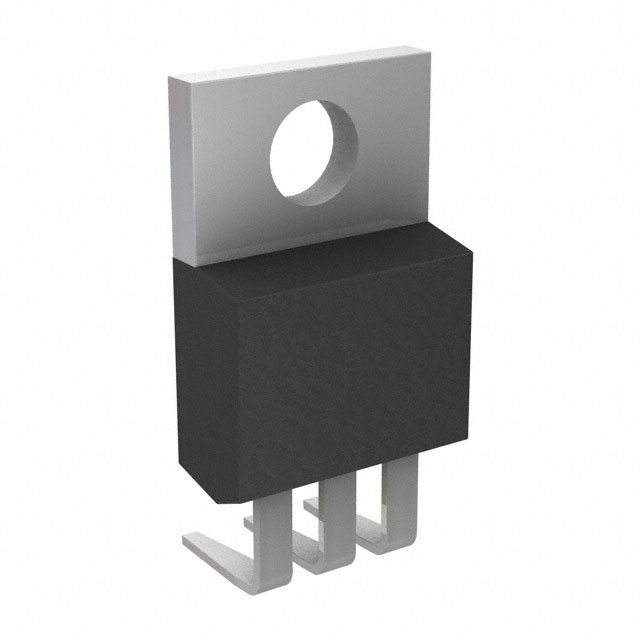

 Analog Devices Inc./Maxim Integrated | Through Hole | 75 dB | 1.25 V | 1 | -40 C | 125 °C | 1.5 A | TO-220-3 Formed Leads | 25 V | 1.5 V | Over Current Over Temperature | Positive | Adjustable | 23.5 V | ||
Analog Devices Inc./Maxim Integrated | Through Hole | 1 | 0 °C | 150 °C | TO-3 | TO-204AA TO-3 | ||||||||||
 Analog Devices Inc./Maxim Integrated | 10 mA | Surface Mount | 72 dB | 3.3 V | 1 | 0 °C | 125 °C | 1.5 A | DDPAK-3 | D2PAK (3 Leads + Tab) TO-263-4 TO-263AA | 20 V | 1.5 V | Over Current Over Temperature | Positive | ||
 Analog Devices Inc./Maxim Integrated | Surface Mount | 75 dB | 1.25 V | 1 | 0 °C | 125 °C | 1.5 A | DDPAK-3 | D2PAK (3 Leads + Tab) TO-263-4 TO-263AA | 25 V | 1.5 V | Over Current Over Temperature | Positive | Adjustable | 23.5 V | |
Analog Devices Inc./Maxim Integrated | 10 mA | Surface Mount | 72 dB | 3.6 V | 1 | 0 °C | 125 °C | 1.5 A | DDPAK-3 | D2PAK (3 Leads + Tab) TO-263-4 TO-263AA | 20 V | 1.5 V | Over Current Over Temperature | Positive | ||
 Analog Devices Inc./Maxim Integrated | 10 mA | Surface Mount | 72 dB | 3.6 V | 1 | 0 °C | 125 °C | 1.5 A | DDPAK-3 | D2PAK (3 Leads + Tab) TO-263-4 TO-263AA | 20 V | 1.5 V | Over Current Over Temperature | Positive |
