ALCOSWITCH MSS Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

MSS2225G04=DPDT SL SW VERT AU

Part	Operating Force	Actuator Material	Mechanical Life	Electrical Life	Switch Travel	Actuator Length [x]	Actuator Type	Contact Timing	Voltage Rating - AC	Circuit	Mounting Type	Current Rating (Amps)	Contact Material	Features	Switch Function	Termination Style	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC
TE Connectivity AMP Connectors 1825262-2	600 gf	Polyoxymethylene (Acetal) (POM)	15000 Cycles	15000 Cycles	2 mm	6.2 mm	Standard	Shorting (MBB)	20 V	DPDT	Through Hole	0.4 VA	Copper Alloy	Epoxy Sealed Terminals	On-On	PC Pin	Gold	85 °C	-20 ░C	20 V
TE Connectivity AMP Connectors 1825263-1						11 mm	Standard	Shorting (MBB)	125 V	DPDT	Through Hole	300 mA	Copper Alloy	Epoxy Sealed Terminals	On-On	PC Pin	Silver	85 °C	-20 ░C
TE Connectivity AMP Connectors 1825257-2	600 gf	Polyoxymethylene (Acetal) (POM)	15000 Cycles	15000 Cycles	2 mm	5 mm	Standard	Shorting (MBB)	20 V	SPDT	Through Hole	0.4 VA	Copper Alloy	Epoxy Sealed Terminals	On-On	PC Pin	Gold	85 °C	-20 ░C	20 V
TE Connectivity AMP Connectors 1825264-2	600 gf	Polyoxymethylene (Acetal) (POM)	15000 Cycles	15000 Cycles	2 mm	8 mm	Standard	Shorting (MBB)	20 V	4PDT	Through Hole	0.4 VA	Copper Alloy	Epoxy Sealed Terminals	On-On	PC Pin	Gold	85 °C	-20 ░C	20 V
TE Connectivity AMP Connectors 1825258-2	600 gf	Polyoxymethylene (Acetal) (POM)	15000 Cycles	15000 Cycles	2 mm	4 mm	Standard	Shorting (MBB)	20 V	SPDT	Right Angle Through Hole	0.4 VA	Copper Alloy	Epoxy Sealed Terminals	On-On	PC Pin	Gold	85 °C	-20 ░C	20 V
TE Connectivity AMP Connectors 1825266-1	600 gf	Polyoxymethylene (Acetal) (POM)	15000 Cycles	15000 Cycles	2 mm	12 mm	Standard	Shorting (MBB)	125 V	4PDT	Through Hole	300 mA	Copper Alloy	Epoxy Sealed Terminals	On-On	PC Pin	Silver	85 °C	-20 ░C
TE Connectivity AMP Connectors 1825265-1						7 mm	Standard	Shorting (MBB)	125 V	4PDT	Right Angle Through Hole	300 mA	Copper Alloy	Epoxy Sealed Terminals	On-On	PC Pin	Silver	85 °C	-20 ░C

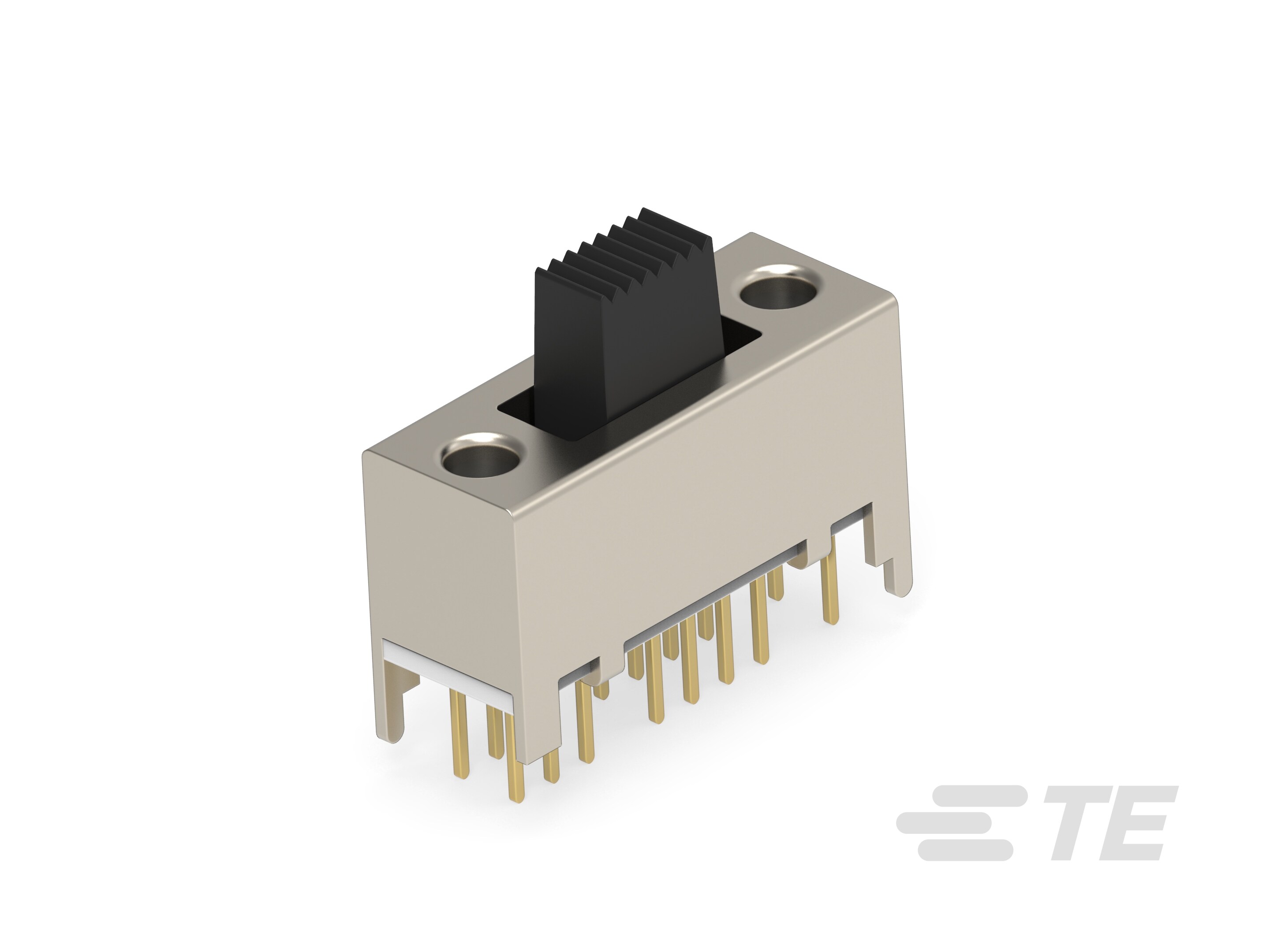

TE Connectivity AMP Connectors 1825267-1						5.5 mm	Standard	Shorting (MBB)	125 V	4P3T	Through Hole	300 mA	Copper Alloy	Epoxy Sealed Terminals	On-On-On	PC Pin	Silver	85 °C	-20 ░C
TE Connectivity AMP Connectors 1825261-1	600 gf	Polyoxymethylene (Acetal) (POM)	15000 Cycles	15000 Cycles	2 mm	2.3 mm	Standard	Shorting (MBB)	125 V	DPDT	Through Hole	300 mA	Copper Alloy	Epoxy Sealed Terminals	On-On	PC Pin	Silver	85 °C	-20 ░C
TE Connectivity AMP Connectors 1825268-2						4.2 mm	Standard	Shorting (MBB)	20 V	4P3T	Right Angle Through Hole	0.4 VA	Copper Alloy	Epoxy Sealed Terminals	On-On-On	PC Pin	Gold	85 °C	-20 ░C	20 V
